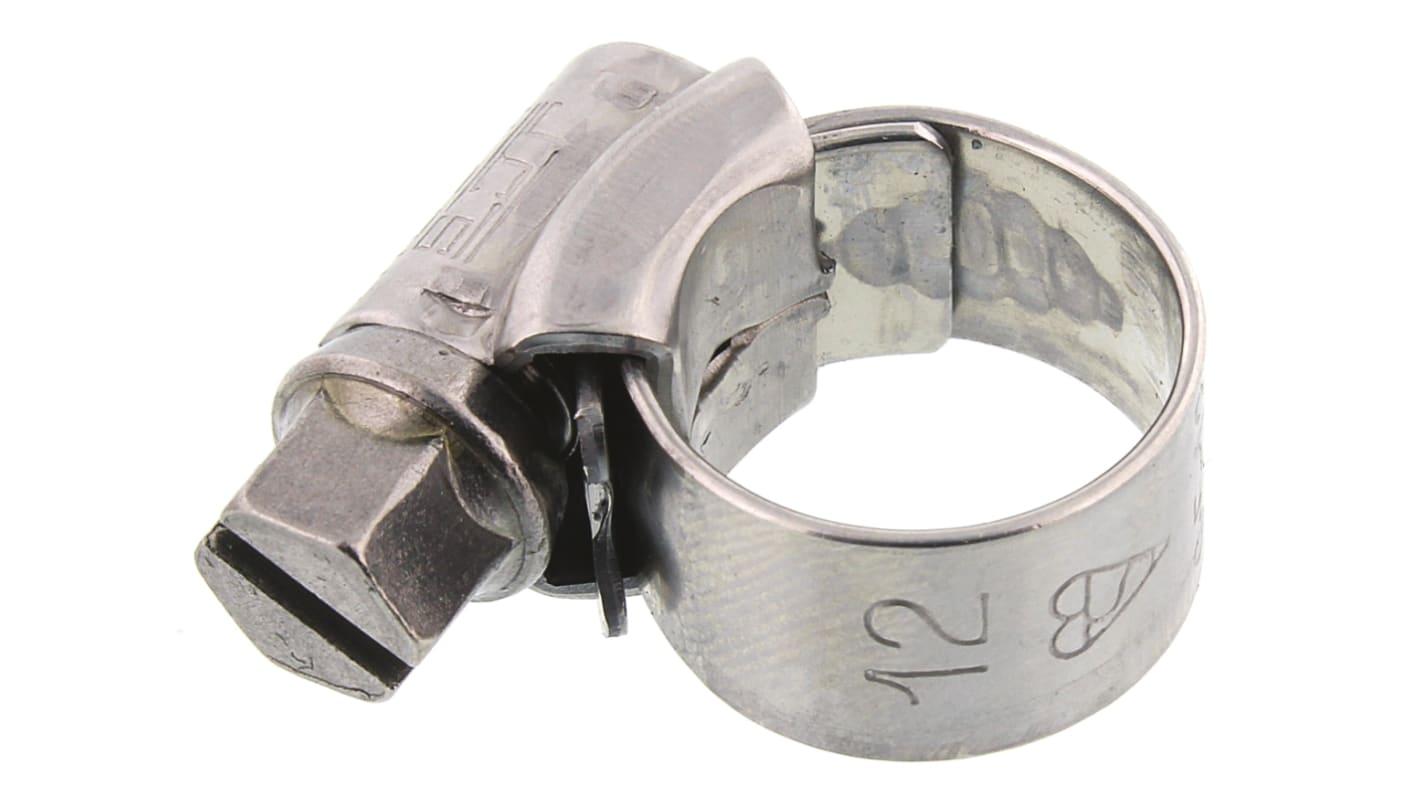

HI-GRIP Stainless Steel Slotted Hex Worm Drive, 9mm Band Width, 9.5 → 12mm ID
- RS-stocknr.:
- 528-378
- Fabrikantnummer:
- HGS12BP
- Fabrikant:
- HI-GRIP
Bekijk deze categorie
685 op voorraad - levertijd is 1 werkdag(en).
Prijs Each (In a Pack of 5)
€ 2,556
(excl. BTW)
€ 3,093
(incl. BTW)
| Aantal stuks | Per stuk | Per pak* |
| 5 - 20 | € 2,556 | € 12,78 |
| 25 - 45 | € 2,428 | € 12,14 |
| 50 - 145 | € 2,298 | € 11,49 |
| 150 + | € 2,148 | € 10,74 |
| *prijsindicatie | ||
- RS-stocknr.:
- 528-378
- Fabrikantnummer:
- HGS12BP
- Fabrikant:
- HI-GRIP
Wetgeving en compliance
- Land van herkomst:
- GB
Productomschrijving
HI-GRIP® Worm Drive Hose Clips
Standard worm-drive hose clips to BS5315 available in either BZP steel or A2 grade 18//8 stainless steel
Clips are marked with BS kitemark and appropriate BS size number
Clips are 13mm wide, except for 12-20mm sizes which are 10mm wide
7mm slotted hexagonal adjustment screw
Recommended tightening torque is dependent upon clip size as follows: 12-20mm=3Nm 22-45mm=6Nm 50-220mm=6Nm
Clips are marked with BS kitemark and appropriate BS size number
Clips are 13mm wide, except for 12-20mm sizes which are 10mm wide
7mm slotted hexagonal adjustment screw
Recommended tightening torque is dependent upon clip size as follows: 12-20mm=3Nm 22-45mm=6Nm 50-220mm=6Nm
Specificaties
Kenmerk | Waarde |
|---|---|
| Inside Diameter | 9.5 → 12mm |
| Clip Type | Worm Drive |
| Material | Stainless Steel |
| Inside Diameter Minimum | 9.5mm |
| Inside Diameter Maximum | 12mm |
| Band Width | 9mm |
| Stainless Steel Type | A2 304 |
| Screw/Bolt Head | Slotted Hex |
