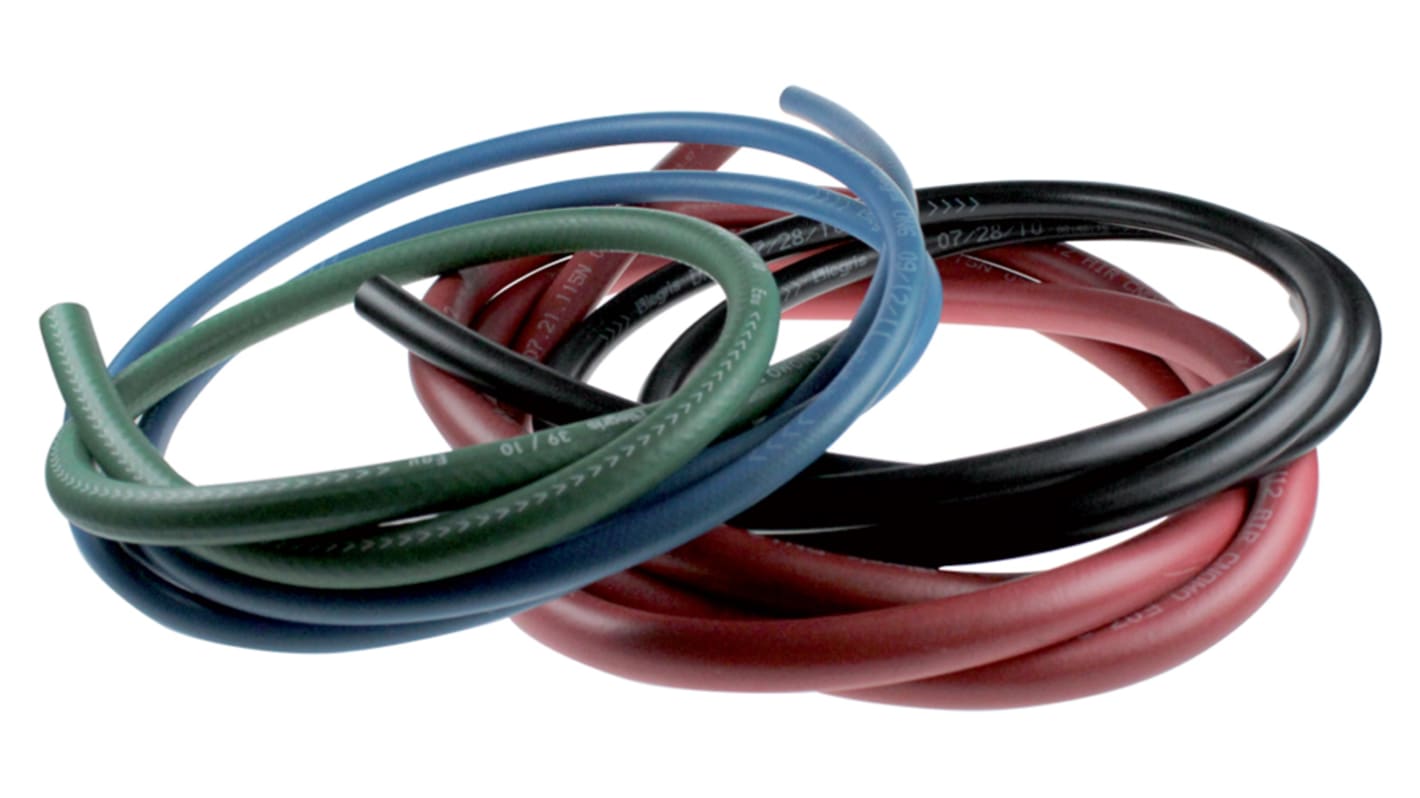

Legris 1040H Hose Pipe, NBR, 9.5mm ID, 16mm OD, Green, 40m

RS-stocknr.:: 144-7858
Fabrikantnummer:: 1040H60 02
Fabrikant:: Legris

Legris 1040H Hose Pipe, NBR, 9.5mm ID, 16mm OD, Green, 40m

tijdelijk niet op voorraad – nieuwe voorraad verwacht op 02-10-2023, met een levertijd van 2 à 3 werkdagen.

Toegevoegd

Prijs Each

€ 501,81

(excl. BTW)

€ 607,19

(incl. BTW)

Aantal stuks	Per stuk
1 +	€ 501,81

RS-stocknr.:: 144-7858
Fabrikantnummer:: 1040H60 02
Fabrikant:: Legris

Datasheets

Datasheet

Wetgeving en compliance

Land van herkomst:: FR

Productomschrijving

Self-Fastening NBR Tubing

The self-fastening tubing from Parker Legris is made from nitrile butadiene rubber and offers excellent resistance to welding sparks and abrasion. No lubrication, additive or preparation time is required.

Features and Benefits

• Exceptional endurance

• Protection against spark and flame

• Unsurpassed resistance to repetitive flexing

• UV-resistant

• Abrasion and crush-resistant

• Excellent ozone resistance

• 4 colours to facilitate circuit identification

• Silicone-free

• Maximum flow with no pressure drop

Product Application Information

• Machine tools

• Miscellaneous manufacturing

• Vehicle assembly facilities

Suitable for applications where compressed air, water and oils are carried.

Approvals

• NFT 46-019-1
• NFT 47 252
• RG: 1907/2006 (REACH)
• DI: 2002/95/EC (RoHS), 2011/65/EC
• CNOMO: E07.21.115N
*CAUTION: CNOMO certification is valid exclusively for red and green hose, only when connected to Legris' CNOMO-certified barb connectors 0132, 0133 and 0134.

Parker Legris

Specificaties

Kenmerk	Waarde
Hose Pipe/Flexible Tube	Hose Pipe
Inner Diameter	9.5mm
Outer Diameter	16mm
Material	NBR
Hose Pipe Action	Transfer
Maximum Working Pressure	16 bar
Suitable Applications	Compressed Air
Series	1040H
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+100°C
Colour	Green
Length	40m
