RS PRO 1.96m Synthetic Rubber Hydraulic Hose Assembly, 275 bar Max Pressure
- RS-stocknr.:
- 110-2019
- Artikelnummer Distrelec:
- 304-03-811
- Fabrikant:
- RS PRO
Subtotaal (1 eenheid)*
€ 62,01
(excl. BTW)
€ 75,03
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Op voorraad
- 44 stuk(s) klaar voor verzending vanaf een andere locatie
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 62,01 |
*prijsindicatie
- RS-stocknr.:
- 110-2019
- Artikelnummer Distrelec:
- 304-03-811
- Fabrikant:
- RS PRO
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | RS PRO | |
| Product Type | Hydraulic Hose Assembly | |
| Connection Gender A | Female | |
| Overall Length | 1.96m | |
| Connection Size A | 1/2 in | |
| Connection Type A | Threaded | |
| Connection Standard A | G | |
| Connection Standard B | G | |
| Connection Gender B | Female | |
| Connection Size B | 1/2 in | |
| Inside Diameter | 12.7mm | |
| Connection Type B | Threaded | |
| Maximum Operating Pressure | 275 bar | |
| Inner Hose Material | Synthetic Rubber | |
| Reinforcing Material | Steel | |
| Cover Material | Synthetic Rubber | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 100°C | |
| Standards/Approvals | RoHS | |
| Alles selecteren | ||
|---|---|---|
Merk RS PRO | ||
Product Type Hydraulic Hose Assembly | ||
Connection Gender A Female | ||
Overall Length 1.96m | ||
Connection Size A 1/2 in | ||
Connection Type A Threaded | ||
Connection Standard A G | ||
Connection Standard B G | ||
Connection Gender B Female | ||
Connection Size B 1/2 in | ||
Inside Diameter 12.7mm | ||
Connection Type B Threaded | ||
Maximum Operating Pressure 275 bar | ||
Inner Hose Material Synthetic Rubber | ||
Reinforcing Material Steel | ||
Cover Material Synthetic Rubber | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 100°C | ||
Standards/Approvals RoHS | ||
- Land van herkomst:
- IT

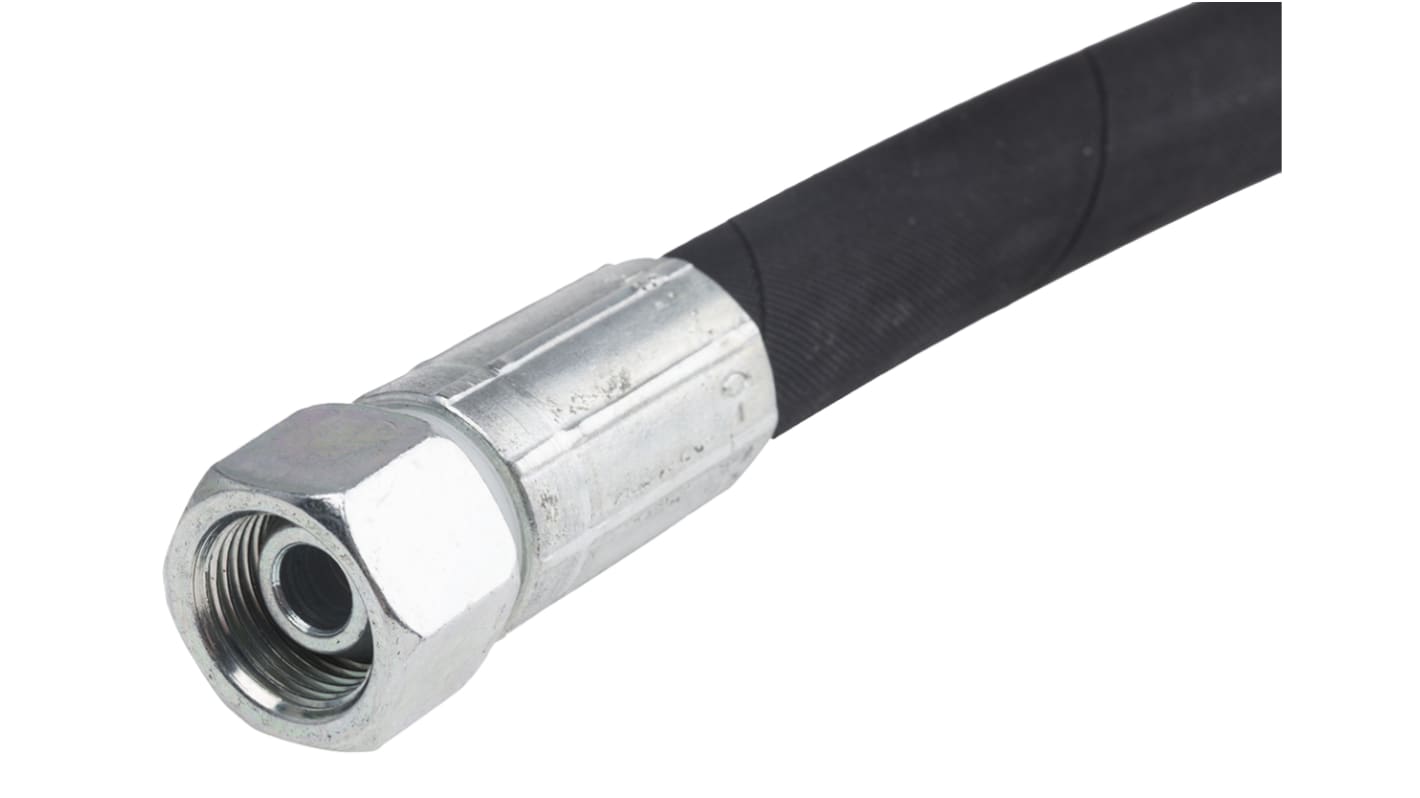

RS PRO 1956 mm Synthetic Rubber Hydraulic Hose Assembly, 275 Bar Max Pressure
This durable hydraulic hose assembly from RS PRO is designed for use with water-glycol hydraulic fluids, as well as mineral and lubricating oils. The synthetic rubber outer cover is reinforced with high-tensile steel wire for added strength and resistance to corrosion.
You can use this hose at temperatures between -40°C and +100°C, so it's a good choice for demanding settings such as hot manufacturing plants and cold storage units. As it complies with Restriction of Hazardous Substances (RoHS) standards, it contains only trace levels of any harmful materials. You'll commonly find this type of hydraulic hose assembly used for fluid transfer between tanks, or as an oil-delivery system in construction equipment.
Features and Benefits
