Phoenix Contact VARIOFACE SLIM LINE Series 9-Contact Female Interface Module, D-Sub Connector, DIN Rail, 2.5A

Bekijk alle Interface Modules

Subtotaal (1 eenheid)*

€ 52,69

(excl. BTW)

€ 63,75

(incl. BTW)

Add to Basket
selecteer of typ hoeveelheid
Tijdelijk niet op voorraad
  • Verzending vanaf 26 maart 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks
Per stuk
1 +€ 52,69

*prijsindicatie

RS-stocknr.:
129-720
Fabrikantnummer:
2959573
Fabrikant:
Phoenix Contact
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren

Merk

Phoenix Contact

Product Type

Interface Module

Gender

Female

Wire Size

0.2 to 4 mm²

Current

2.5A

Number of Contacts

9

Connector Type

D-Sub

Mount Type

DIN Rail

Voltage

60 V

Cable CSA

0.2 to 2.5 mm²

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

50°C

Width

25 mm

Standards/Approvals

EN 60664-1

Depth

46.49mm

Length

9mm

Series

VARIOFACE SLIM LINE

Land van herkomst:
DE

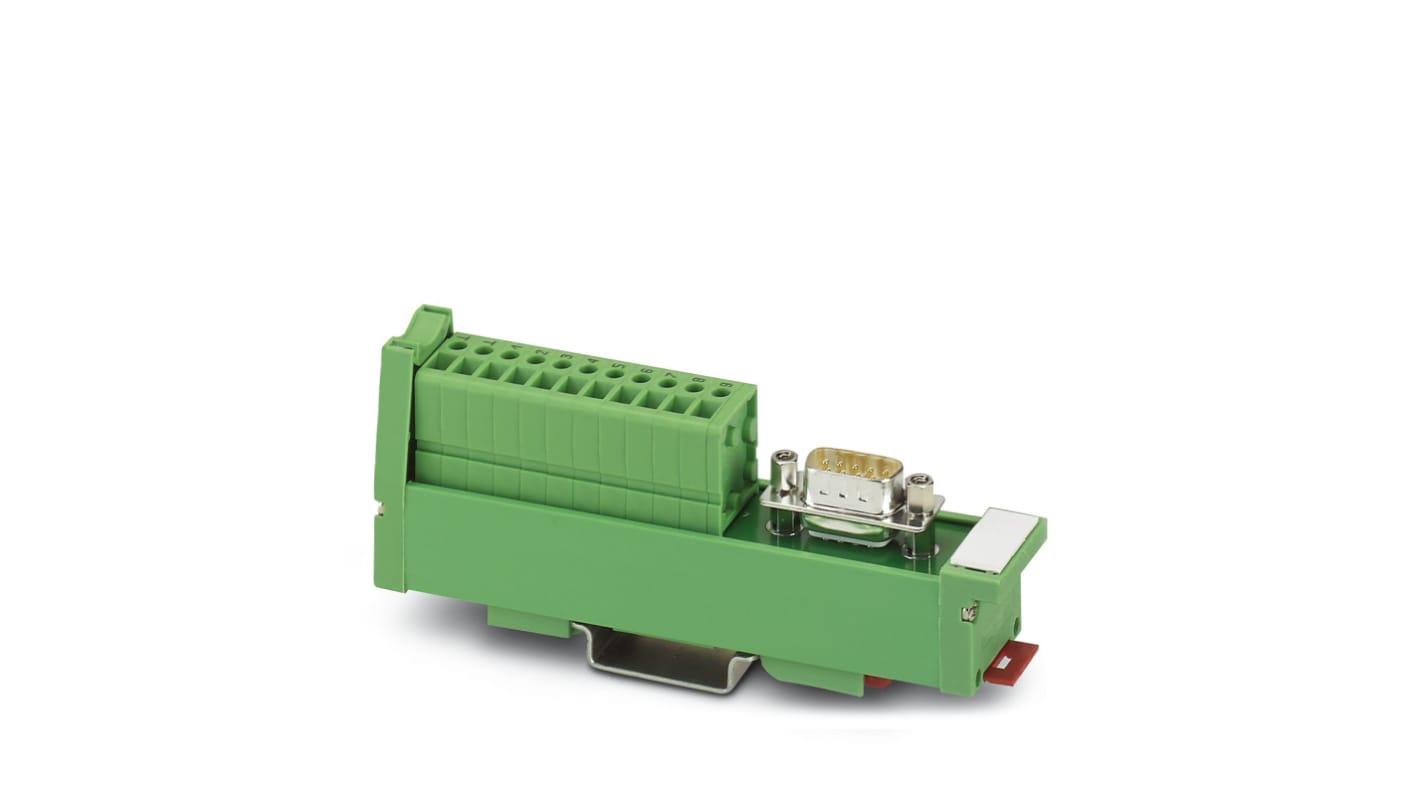

The Phoenix Contact Interface module is a VARIOFACE SLIM LINE module that is designed for assembly at a right angle on NS 35/7.5. It provides a screw connection and a D-subminiature pin strip with 9 positions. With a weight of 111.4 g, it offers functional insulation and is suitable for operating voltages up to 30 V AC and 60 V DC. The module also features a connection in accordance with the IEC 60807-2 standard and has a rated insulation voltage of 125 V. With its compact dimensions (25 mm width, 117 mm height, and 46.49 mm depth), the Interface module is a reliable and efficient solution for various applications.

Designed for right-angle assembly on NS 35/7.5

9 positions for flexible connectivity

Screw connection ensures reliable installation

Functional insulation for safe operation

Supports up to 30 V AC and 60 V DC
