Phoenix Contact 50-Contact Male Interface Module, D-Sub Connector, DIN Rail, 2.5A

Bekijk alle Interface Modules

Subtotaal (1 eenheid)*

€ 129,95

(excl. BTW)

€ 157,24

(incl. BTW)

Add to Basket
selecteer of typ hoeveelheid
Op voorraad
  • 3 stuk(s) klaar voor verzending
  • 2 stuk(s) klaar voor verzending vanaf een andere locatie
  • Plus verzending 3 stuk(s) vanaf 23 februari 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks
Per stuk
1 +€ 129,95

*prijsindicatie

RS-stocknr.:
648-3934
Fabrikantnummer:
2962816
Fabrikant:
Phoenix Contact
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren

Merk

Phoenix Contact

Gender

Male

Product Type

Interface Module

Wire Size

26/16 AWG

Current

2.5A

Number of Contacts

50

Orientation

Straight

Connector Type

D-Sub

Mount Type

DIN Rail

Test Proof Voltage

800V

Voltage

25 V ac, 60 V dc

Cable CSA

0.14 to 1.5 mm²

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

50°C

Depth

45mm

Width

42 mm

Standards/Approvals

No

Length

156mm

Land van herkomst:
DE

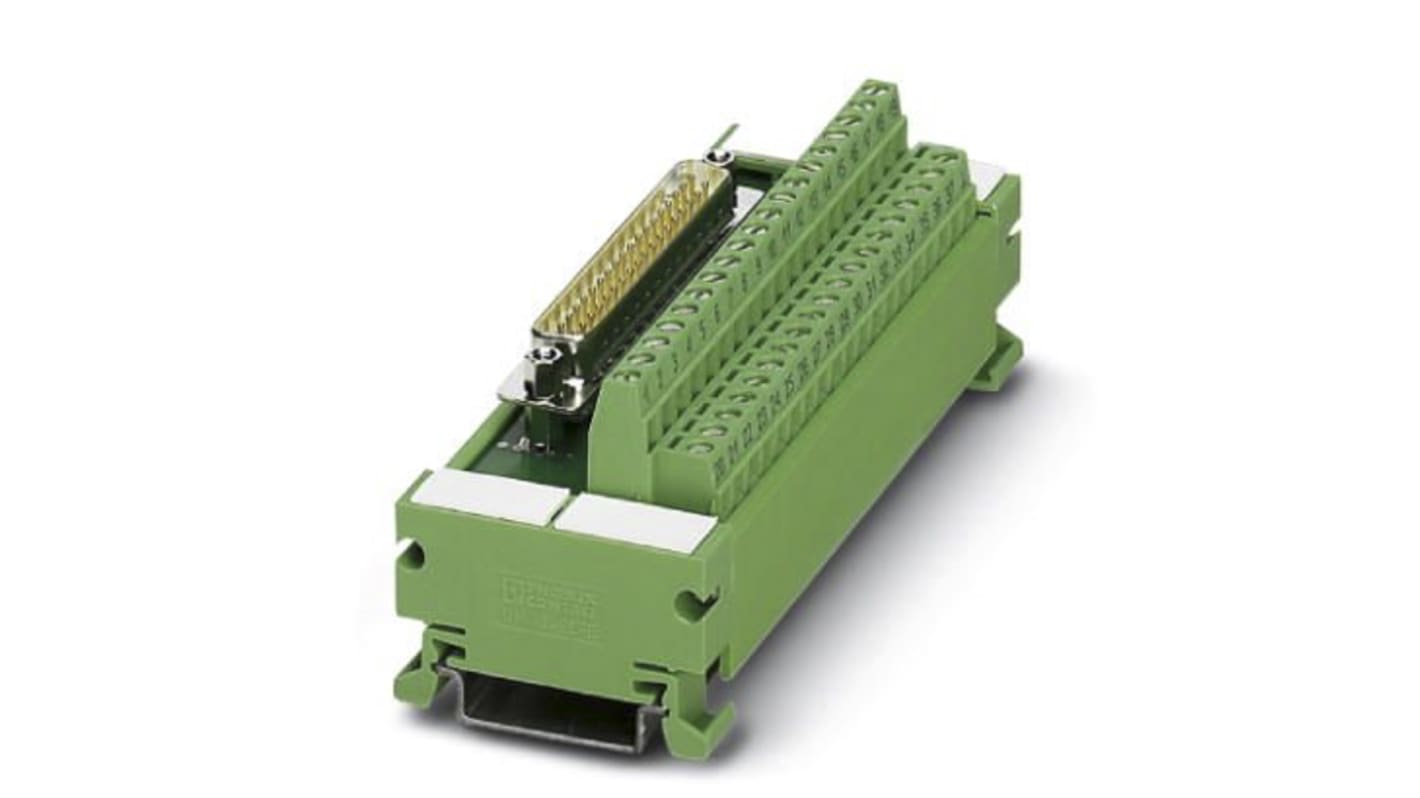

UM 45-D37SUB/S DIN rail interface module


Phoenix Contact brings you a range of DIN rail wiring modules that have been engineered to work with Phoenix's brilliant range of VARIOFACE modules. These connectors are D-sub connectors and feature screw-connection terminal blocks and can accept cables from 26AWG down to 16AWG.

The D-Sub connector is housed in a green, high-density polyamide and the foot of the unit will allow you to connect the module to DIN rails that are NS 35/7.5 in size. They're typically the most commonly used DIN rails in cabinets, so the foot will provide you maximum compatibility

Features and benefits:


  • Provides an easy way to incorporate a D-sub connector onto your DIN rail

  • Compatible with the huge VARIOFACE range from Phoenix

  • Plug housing is secured with 2 4-40UNC retaining screws

  • Side components equipped with identification labels

  • Metallic connector shell is directly linked to a connection terminal, providing earthing

    • Approvals

    UL, CUL
