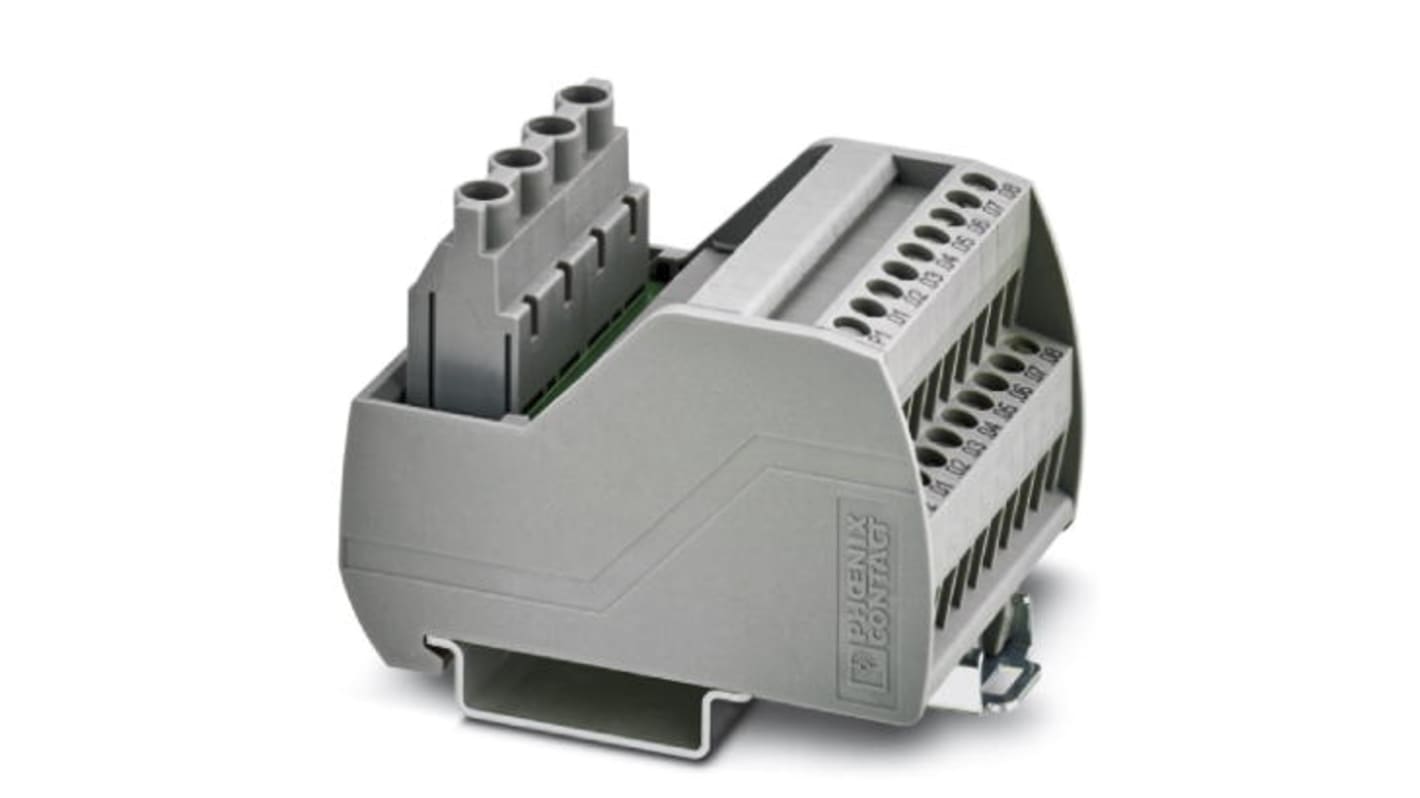

Phoenix Contact 2-Contact Female Interface Module, D-Sub Connector, DIN Rail, 15A

Afbeelding representeert productcategorie

Bekijk alle Interface Modules

Subtotaal (1 eenheid)*

€ 39,05

(excl. BTW)

€ 47,25

(incl. BTW)

Add to Basket
selecteer of typ hoeveelheid
Op voorraad
  • 12 stuk(s) klaar voor verzending
  • 6 stuk(s) klaar voor verzending vanaf een andere locatie
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks
Per stuk
1 +€ 39,05

*prijsindicatie

RS-stocknr.:
667-0100
Artikelnummer Distrelec:
148-37-030
Fabrikantnummer:
2315272
Fabrikant:
Phoenix Contact
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren

Merk

Phoenix Contact

Gender

Female

Product Type

Interface Module

Wire Size

24/12 AWG

Current

15A

Number of Contacts

2

Orientation

Straight

Connector Type

D-Sub

Mount Type

DIN Rail

Test Proof Voltage

0.6kV

Voltage

250 V ac/dc

Minimum Operating Temperature

-20°C

Cable CSA

0.2 to 4 mm²

Maximum Operating Temperature

50°C

Standards/Approvals

No

Width

50 mm

Depth

65.5mm

Length

90.8mm

Land van herkomst:
US

Phoenix Contact D-sub interface module VIP VARIOFACE


The VIP VARIOFACE D-sub interface modules from Phoenix Contact are dIN rail mounted, plug-in D-sub modules that are designed to be slotted onto an NS35 rail. These interface modules have a 1:1 connection, feature screw connection terminal blocks and not to mention, adhere to the standard IEC 60603-13. The VIP VARIOFACE devices come in a variety of positions from 9 up to 50 to suit all your needs.

This VIP VARIOFACE module will allow you to connect to your other Phoenix Contact peripherals such as high pos connectors from the VIP & UMK range while also allowing effortless connection to FMK, FLMK and similar cabinet wiring technologies.

Features and benefits:


  • D-sub units transfer 2.5 A/125 V AC/DC

  • Metal footing to ensure reliability over time and optimum safety

  • IEC 60603-13 standard

  • Screw connection providing a super-secure and reliable connection.

    • Complete Line:


    The VIP VARIOFACE series is apart of Phoenix Contacts vast and comprehensive portfolio. Complete line is a solution from Phoenix Contact that gives you a full range of products that all go hand-in-hand to make a perfect control cabinet. It covers all bases from connections, switching and measuring all the way to controlling, supplying and automation. Choosing complete line products makes it far more efficient to get a cabinet working.
