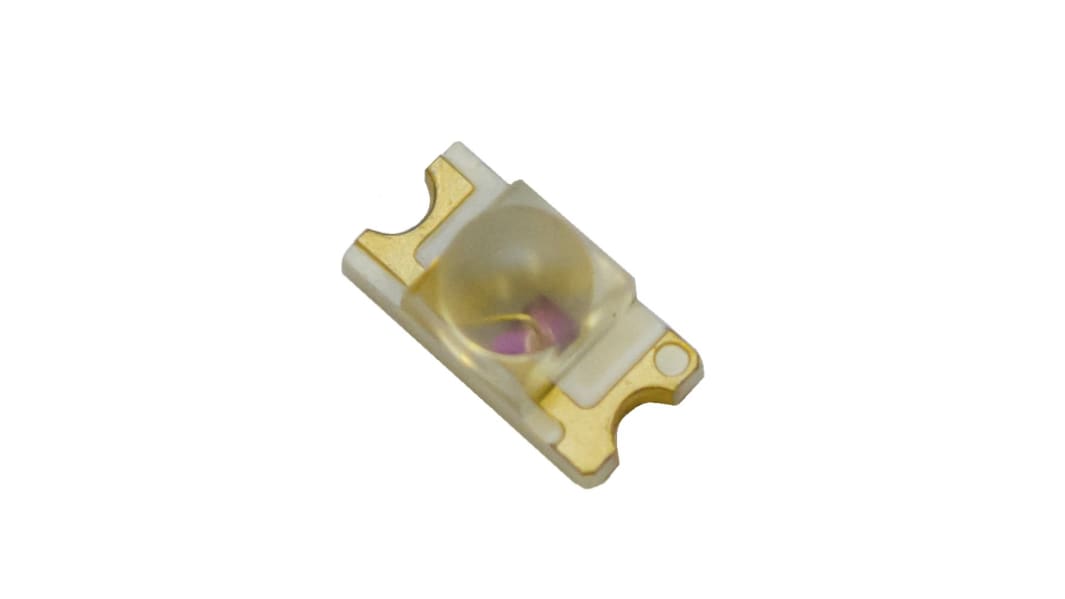

    OIS-330-880-X-TU OSA Opto, OIS-330 880nm IR LED, 1206 SMD package

    OSA Opto
    RS-stocknr.:
    173-6273
    Fabrikantnummer:
    OIS-330-880-X-TU
    Fabrikant:
    OSA Opto
    Bekijk alle IR LEDs
    Add to Basket
    Aantal stuks

    Dit product is momenteel niet beschikbaar voor nabestelling.

    We hebben dit product helaas niet op voorraad en het is op dit moment niet beschikbaar voor nabestelling.

    Toegevoegd

    Prijs Each (On a Reel of 500)

    € 0,606

    (excl. BTW)

    € 0,733

    (incl. BTW)

    Aantal stuksPer stukPer reel*
    500 - 500€ 0,606€ 303,00
    1000 - 1000€ 0,555€ 277,50
    1500 - 2000€ 0,512€ 256,00
    2500 +€ 0,487€ 243,50
    *prijsindicatie
    RS-stocknr.:
    173-6273
    Fabrikantnummer:
    OIS-330-880-X-TU
    Fabrikant:
    OSA Opto

    Datasheets


    Wetgeving en compliance


    Productomschrijving

    We develop and manufacture special, custom designed and standard High Brightness & High Power LED-Chips , SMD-LEDs and LED-Lamps in the colors white, uv 265-420nm ,vis 420-660nm and ir 660-1650nm. Our custom designed LED-Modules for OEMs are an efficient way for luminaries and other lighting applications.

    package: 1206
    size: 3.2mm x 1.6mm x 1.9mm
    view angle: 40°
    with lens
    technology: GaP, AlInGaP, GaAlAs and InGaN
    soldering pads: gold plated
    through hole mountable
    suitable for all SMT assembly methods

    with lens, mounting from backside of PCB
    View angle 40°
    package: 1206
    size: 3.2mm x 1.6mm x 1.9mm
    circuit substrate: glass laminated epoxy

    Lead free solderable, soldering pads:gold plated
    taped in 8 mm blister tape, cathode to transporting perforation
    all devices sorted into luminous intensity classes
    taping: face-up(TU) or face-down(TD) possible
    high radiant intensity type


    Specificaties

    KenmerkWaarde
    Peak Wavelength880nm
    Package Type1206
    Radiant Intensity14mW/sr
    Mounting TypeSurface Mount
    Number of LEDs1
    Number of Pins2
    Dimensions3.2 x 1.6 x 1.2mm
    Lens ShapeDome
    SeriesOIS-330
    LED MaterialAlInGaP, GaAlAs, GaP, InGaN
    Maximum Supply Voltage1.7V
