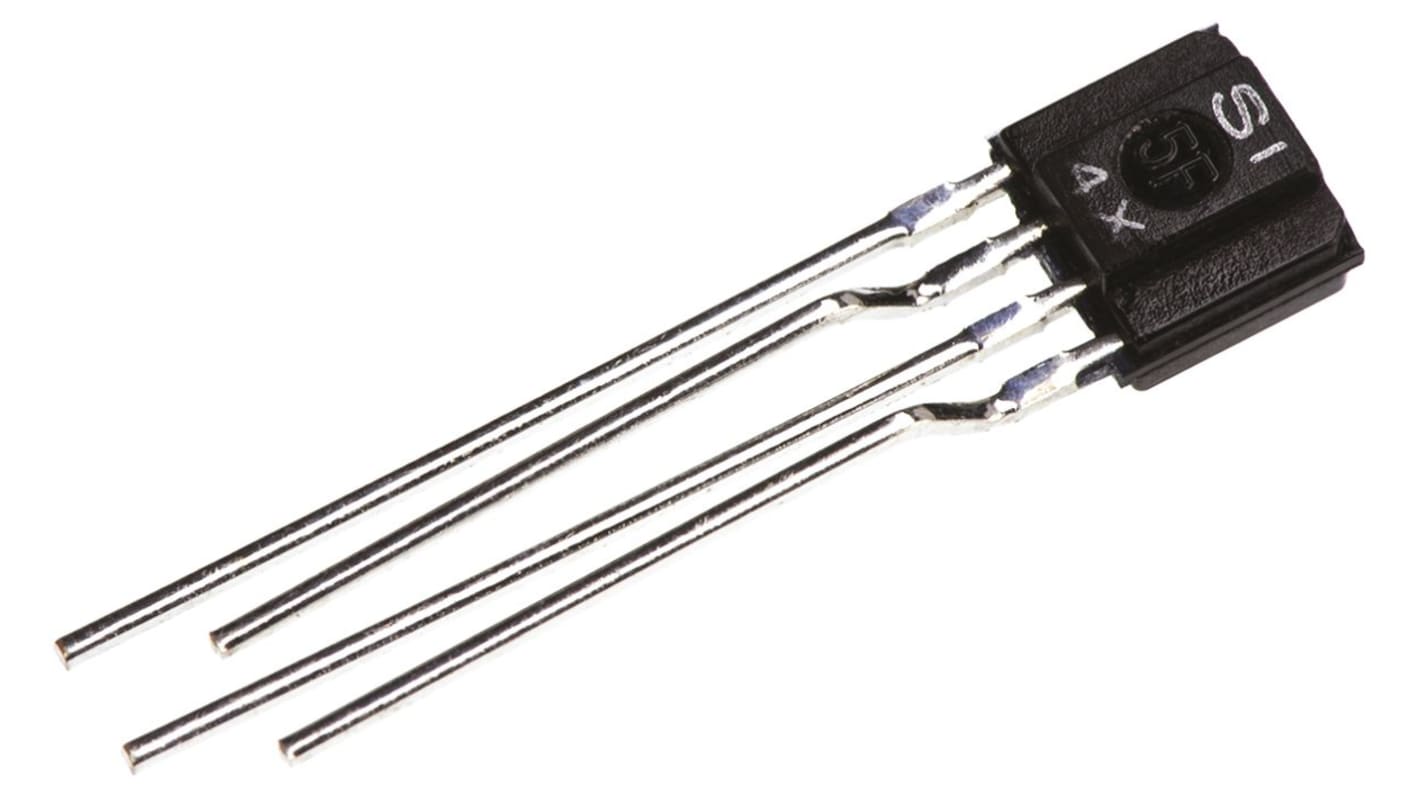

Sharp IS471F IR Receiver, 950Nm, Through Hole, 5 x 2.5 x 4.4mm

  • RS-stocknr. 564-396
  • Fabrikantnummer IS471F
  • Fabrikant Sharp
Datasheets
Wetgeving en compliance
Conform
Land van herkomst: JP
Productomschrijving

IS471F Series OPIC Light Detectors

The IS471F series, from Sharp, are a family of OPIC light detectors with built-in signal processing circuit for light modulation systems. Their light modulation system makes them impervious to external distributing lights. The IS471F OPIC light detectors are ideal for applications such as optoelectronic switched, copiers, printers and telecommunications.

Features of the IS471F OPIC light detector:
Through-hole package
Built-in pulse driver circuit and sync detector circuit
Operating supply voltage: 4.5 to 16 V

IR Photodiodes, Sharp

Specificaties
Kenmerk Waarde
Wavelength of Peak Sensitivity 950nm
Output Current 50mA
Number of Pins 4
Mounting Type Through Hole
Dimensions 5 x 2.5 x 4.4mm
Height 4.4mm
Length 5mm
Minimum Operating Temperature -25 °C
Width 2.5mm
Operating Temperature Range -25 → +60 °C
Maximum Operating Temperature +60 °C
153 op voorraad - levertijd is 1 werkdag(en) (EU-voorraad)
402 op voorraad - levertijd is 1 werkdag(en) (UK-voorraad)
Prijs Each
4,56
(excl. BTW)
5,52
(incl. BTW)
Aantal stuks
Per stuk
1 - 4
€ 4,56
5 - 19
€ 3,83
20 - 99
€ 3,42
100 - 249
€ 3,08
250 +
€ 2,85
