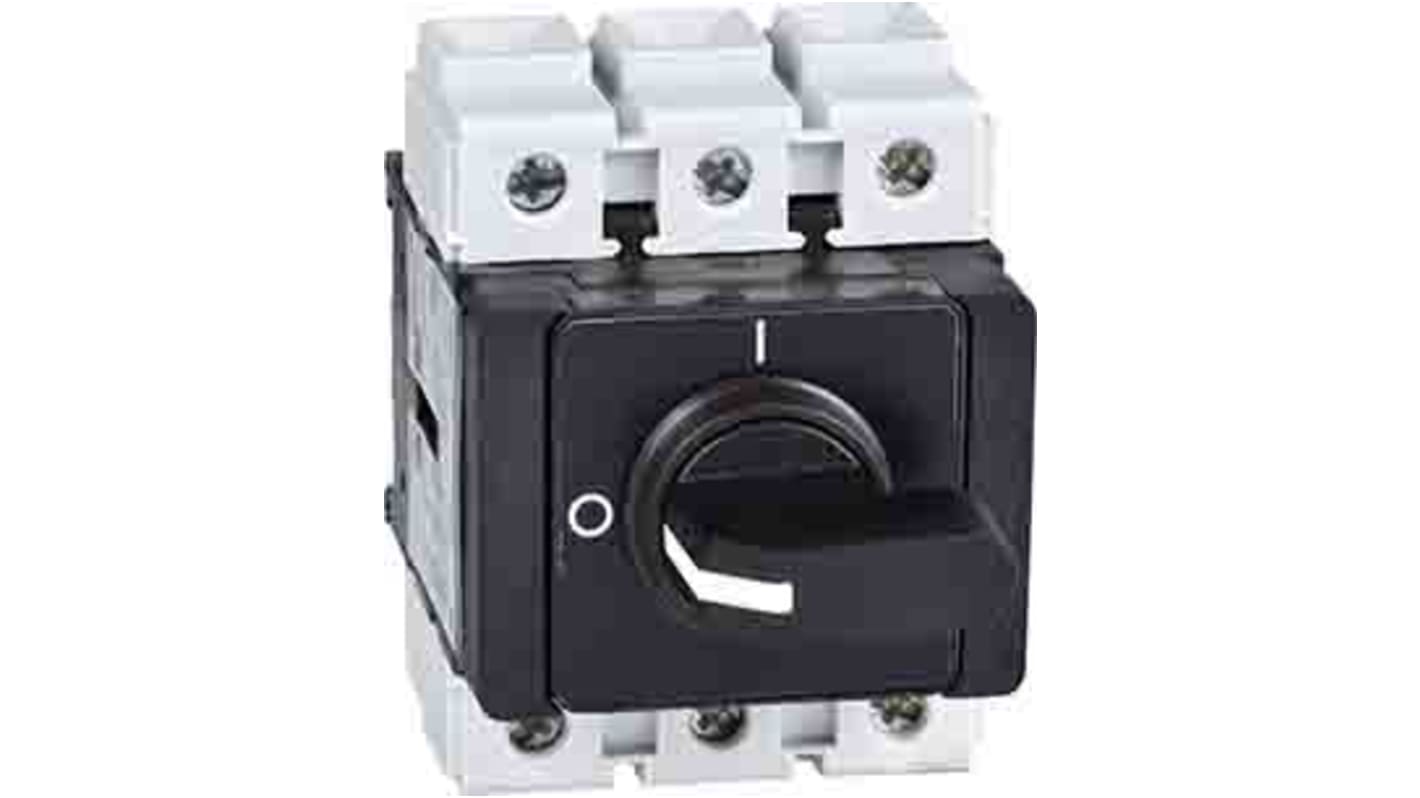

Schneider Electric 3-Pole DIN Rail Isolator Switch -, IP65, 32A, 15 kW
- RS-stocknr.:
- 212-0302
- Fabrikantnummer:
- VVD1
- Fabrikant:
- Schneider Electric
Subtotaal (1 eenheid)*
€ 51,40
(excl. BTW)
€ 62,19
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Op voorraad
- 1 stuk(s) klaar voor verzending
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 51,40 |
*prijsindicatie
- RS-stocknr.:
- 212-0302
- Fabrikantnummer:
- VVD1
- Fabrikant:
- Schneider Electric
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Schneider Electric | |
| Product Type | Isolator Switch | |
| Number of Poles | 3 | |
| Mount Type | DIN Rail | |
| IP Rating | IP65 | |
| Electrical Phase | 3 | |
| Handle Colour | Black | |
| Terminal Type | Power Circuit Screw Clamp Terminal | |
| Auxiliary Contacts Available | Yes | |
| Series | TeSyS Vario | |
| Switching Current | 32A | |
| Minimum Operating Temperature | -20°C | |
| Switching Power | 15kW | |
| Padlock Compatibility | No | |
| Switching AC Voltage | 690V ac | |
| Maximum Operating Temperature | 50°C | |
| Standards/Approvals | UL, GL, CSA, IEC 60947-3 | |
| Hazardous Area Certification | No | |
| Length | 100mm | |
| Depth | 106mm | |
| Width | 55mm | |
| Alles selecteren | ||
|---|---|---|
Merk Schneider Electric | ||
Product Type Isolator Switch | ||
Number of Poles 3 | ||
Mount Type DIN Rail | ||
IP Rating IP65 | ||
Electrical Phase 3 | ||
Handle Colour Black | ||
Terminal Type Power Circuit Screw Clamp Terminal | ||
Auxiliary Contacts Available Yes | ||
Series TeSyS Vario | ||
Switching Current 32A | ||
Minimum Operating Temperature -20°C | ||
Switching Power 15kW | ||
Padlock Compatibility No | ||
Switching AC Voltage 690V ac | ||
Maximum Operating Temperature 50°C | ||
Standards/Approvals UL, GL, CSA, IEC 60947-3 | ||
Hazardous Area Certification No | ||
Length 100mm | ||
Depth 106mm | ||
Width 55mm | ||
- Land van herkomst:
- CZ
The Schneider Electric TeSys Vario - switch disconnector - back of enclosure with Preventive maintenance Device application. Has Rotary handle control type & without Rotary handle padlocking. Suitable for Isolation & Intermittent duty class of 30.
Mechanical durability-100000 cycles
Electrical durability-100000 cycles
Fire resistance
High performance
