Schneider Electric Harmony 3-position Key Switch Head, Stay Put, 22 mm Cutout
- RS-stocknr.:
- 221-1950
- Fabrikantnummer:
- ZB4BD37
- Fabrikant:
- Schneider Electric
Subtotaal (1 eenheid)*
€ 14,97
(excl. BTW)
€ 18,11
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Op voorraad
- 9 stuk(s) klaar voor verzending vanaf een andere locatie
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 14,97 |
*prijsindicatie
- RS-stocknr.:
- 221-1950
- Fabrikantnummer:
- ZB4BD37
- Fabrikant:
- Schneider Electric
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Schneider Electric | |
| Series | Harmony | |
| Product Type | Key Switch Head | |
| Cutout Diameter | 22mm | |
| Number of Positions | 3 | |
| Switch Operation | Stay Put | |
| IP Rating | IP66, IP69, IP67 | |
| Angle of Throw | 45 ° | |
| Standards/Approvals | IEC 60947-5-1,IEC 60947-5-4,IEC 60947-1,CSA C22.2 No 14,IEC 60947-5-5,UL 508,JIS C8201-5-1,JIS C8201-1,CSA,DNV,BV,LROS,UL Listed,IEC 50102 | |
| Mechanical Life | 1000000Cycles | |
| Alles selecteren | ||
|---|---|---|
Merk Schneider Electric | ||
Series Harmony | ||
Product Type Key Switch Head | ||
Cutout Diameter 22mm | ||
Number of Positions 3 | ||
Switch Operation Stay Put | ||
IP Rating IP66, IP69, IP67 | ||
Angle of Throw 45 ° | ||
Standards/Approvals IEC 60947-5-1,IEC 60947-5-4,IEC 60947-1,CSA C22.2 No 14,IEC 60947-5-5,UL 508,JIS C8201-5-1,JIS C8201-1,CSA,DNV,BV,LROS,UL Listed,IEC 50102 | ||
Mechanical Life 1000000Cycles | ||
- Land van herkomst:
- FR
Schneider Electric ZB4BD37

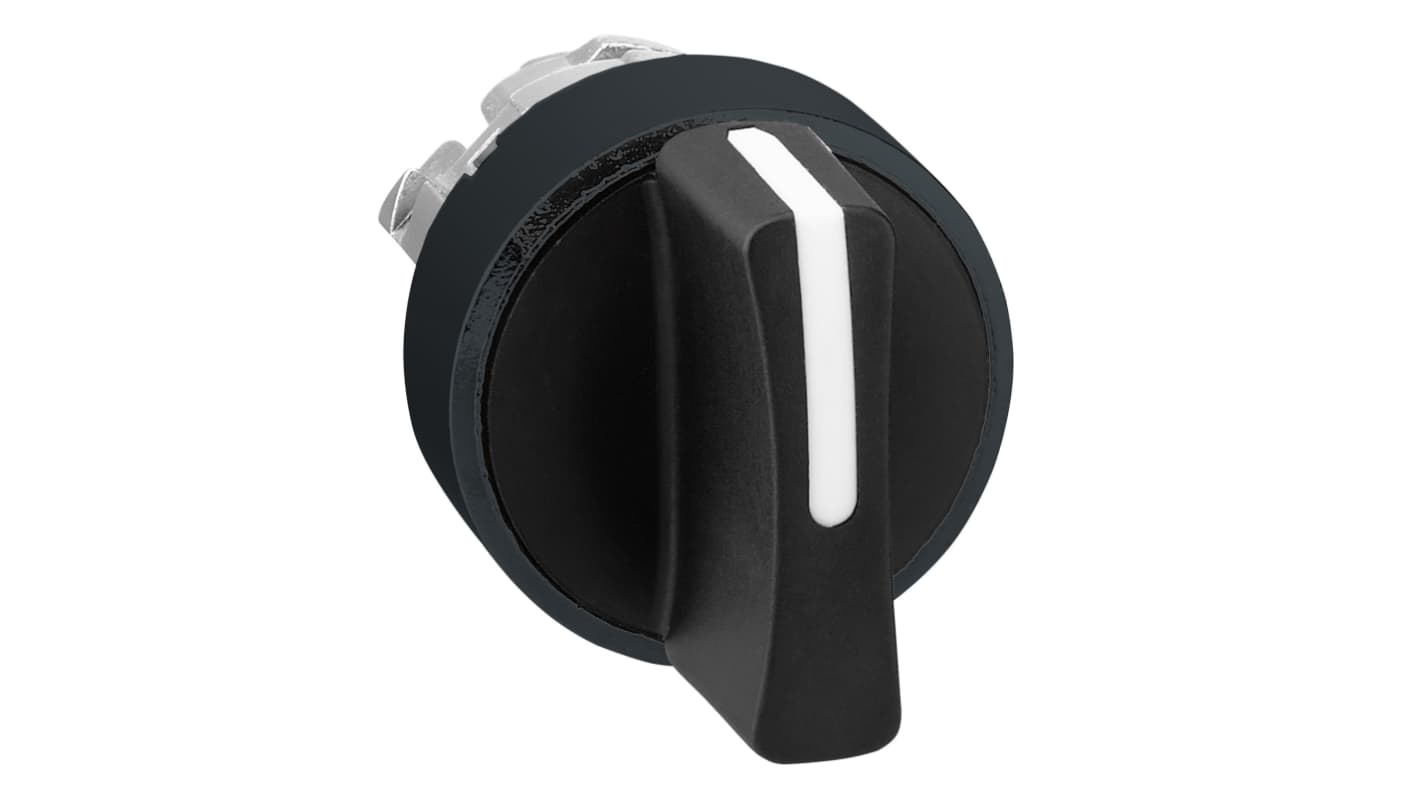

This Harmony XB4, black selector switch head with standard handle has 3 positions, operates with stay-put mechanism. This switch head with standard handle provides an ergonomic interface for controlling your machines. It can easily be installed on compatible selector switch units and provide an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
The Schneider Electric Harmony XB4, black selector switch head with standard handle has 3 positions, operates with stay-put mechanism. This switch head with standard handle provides an ergonomic interface for controlling your machines.
Mercury free Yes
