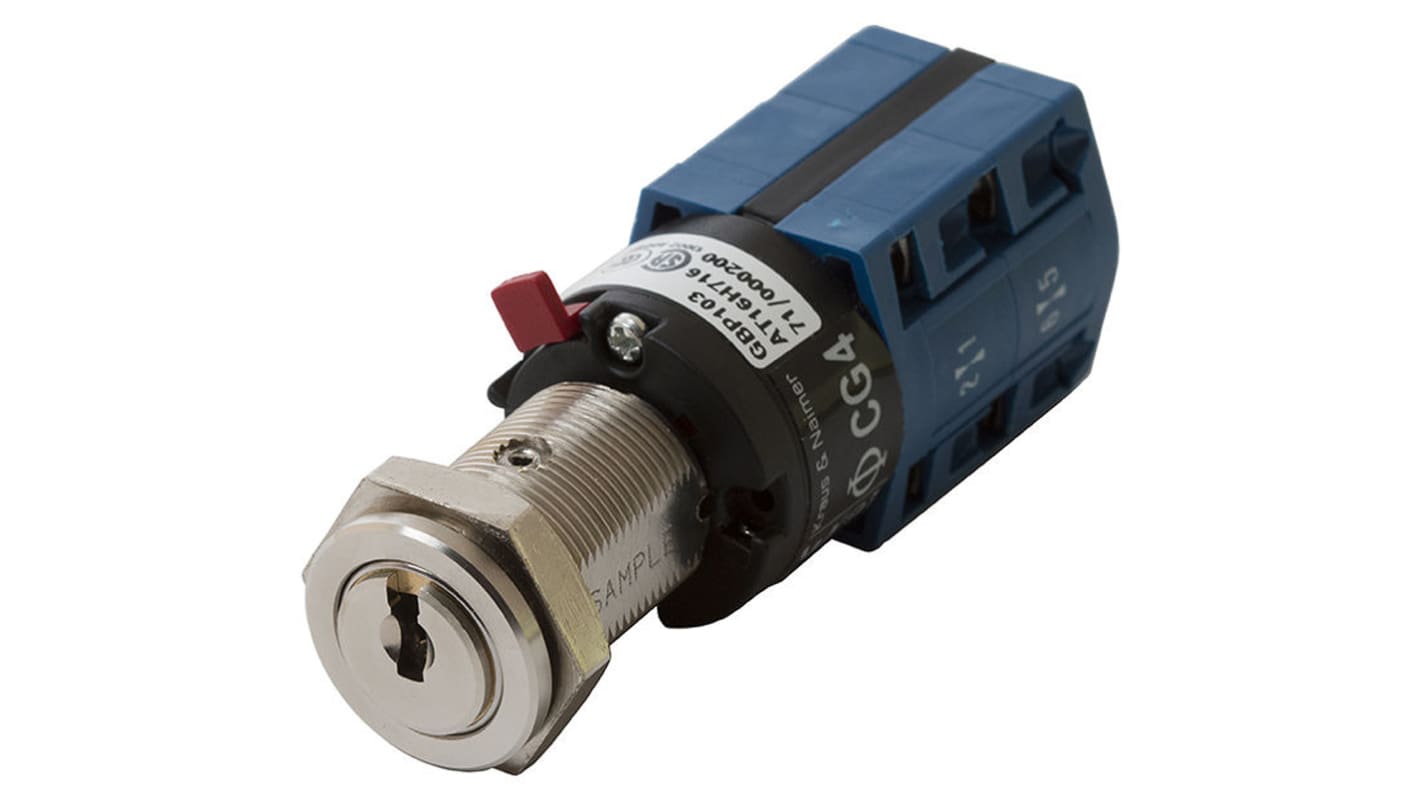

Kaba Key Switch, DPCO, 10 A 2-Way Common-Key

RS-stocknr.:: 124-5251
Fabrikantnummer:: 7-350152-1-NI
Fabrikant:: Kaba

Kaba Key Switch, DPCO, 10 A 2-Way Common-Key

Subtotaal (1 eenheid)*

€ 202,38

(excl. BTW)

€ 244,88

(incl. BTW)

Informatie over voorraden is momenteel niet toegankelijk - Controleer het later nog eens opnieuw

Aantal stuks	Per stuk
1 +	€ 202,38

*prijsindicatie

RS-stocknr.:: 124-5251
Fabrikantnummer:: 7-350152-1-NI
Fabrikant:: Kaba

Specificaties

Datasheets

Wetgeving en compliance

Productomschrijving

Zoek vergelijkbare producten door een of meer kenmerken te selecteren.

Alles selecteren	Attribuut	Waarde
	Merk	Kaba
	Product Type	Key Switch
	Number of Positions	2
	Switch Operation	Spring Return
	Contact Configuration	DPCO
	Housing Material	Silver
	Switch Contact Current	10 A
	Key Type	Common
	Terminal Type	Screw
	Bezel Shape	Round
	Contact DC Voltage	24V dc
	Contact AC Voltage	440V ac
	Switch Configuration	2P, 2 Position
	Key Index Angle	30°
	Standards/Approvals	RoHS
	Contact Material	Silver
	Mechanical Life	1000000Operations
	Series	7-350
	Minimum Operating Temperature	-5°C
	Maximum Operating Temperature	55°C

	Alles selecteren
	Merk Kaba
	Product Type Key Switch
	Number of Positions 2
	Switch Operation Spring Return
	Contact Configuration DPCO
	Housing Material Silver
	Switch Contact Current 10 A
	Key Type Common
	Terminal Type Screw
	Bezel Shape Round
	Contact DC Voltage 24V dc
	Contact AC Voltage 440V ac
	Switch Configuration 2P, 2 Position
	Key Index Angle 30°
	Standards/Approvals RoHS
	Contact Material Silver
	Mechanical Life 1000000Operations
	Series 7-350
	Minimum Operating Temperature -5°C
	Maximum Operating Temperature 55°C

Land van herkomst:: CH

Kaba 7-350 Series Security Switches

The Kaba 7-350 Series of high security key switches use the Kaba Quatro pluS modular core locking system offering the highest level of security. Each key is unique, designed to make them difficult to copy. This concept of key security can be further enhanced by registering the keys with Kaba using the registration card supplied. The Kaba 7-350 switch modules offer screw terminals as standard. These industry rated switches are suitable for heavy-duty industrial applications which require bespoke locking solutions.

Features and Benefits

High security key registration

22 pin lock mechanism

Cylinder core being of modular design allowing core

12 multi coloured clips available for easy identification

Strong reversible nickel silver keys

Suitable for heavy duty industrial applications

Kaba Key Switch, DPCO, 10 A 2-Way Common-Key

Kaba 7-350 Series Security Switches

Features and Benefits
