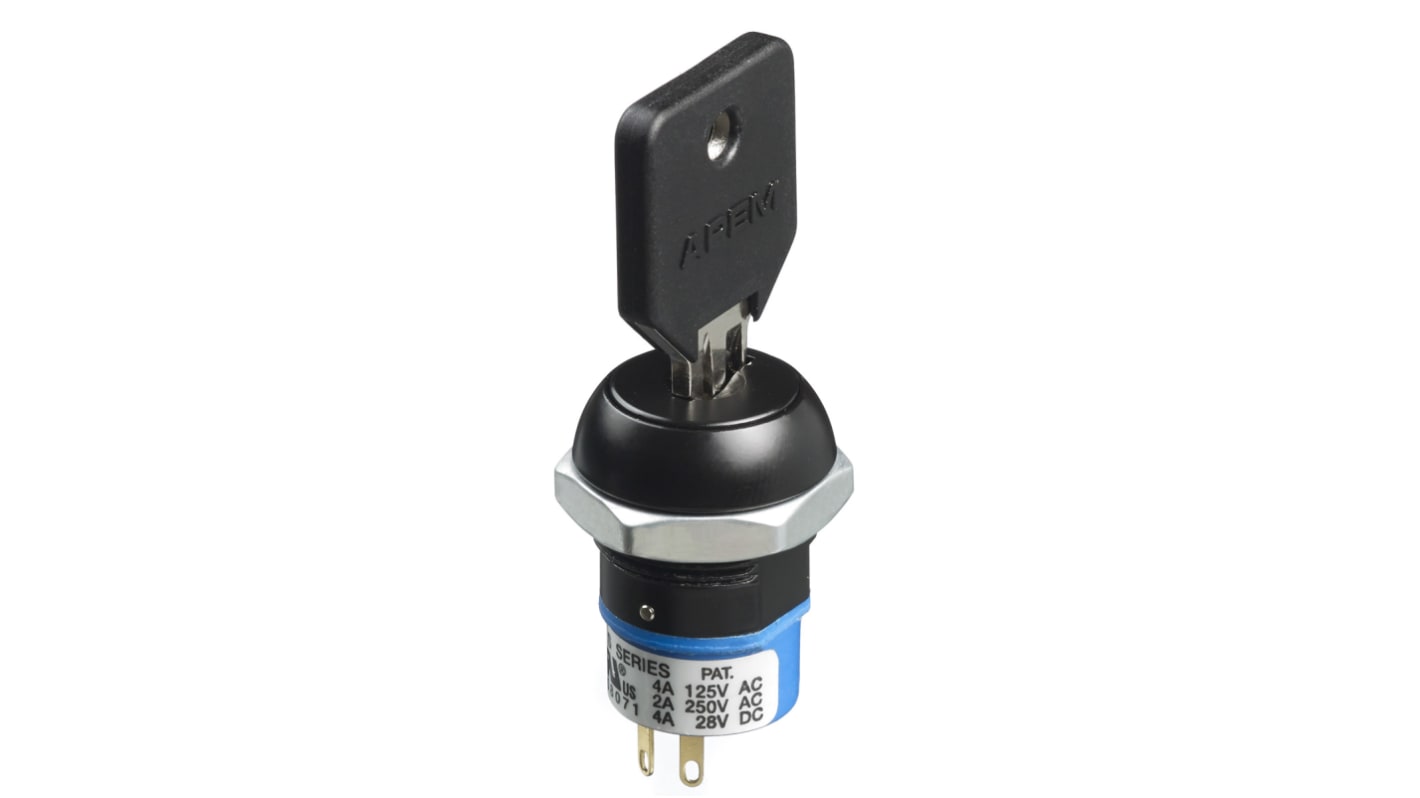

APEM Keylock Switch, SPDT, 4A 2-Way Common-Key
- RS-stocknr.:
- 125-8232
- Fabrikantnummer:
- LK5AGB126M3
- Fabrikant:
- APEM
Bulkkorting beschikbaar
Subtotaal (1 eenheid)*
€ 24,86
(excl. BTW)
€ 30,08
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Op voorraad
- Plus verzending 139 stuk(s) vanaf 20 april 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 - 24 | € 24,86 |
| 25 - 49 | € 23,58 |
| 50 - 99 | € 22,40 |
| 100 - 249 | € 21,26 |
| 250 + | € 19,15 |
*prijsindicatie
- RS-stocknr.:
- 125-8232
- Fabrikantnummer:
- LK5AGB126M3
- Fabrikant:
- APEM
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | APEM | |
| Product Type | Keylock Switch | |
| Number of Positions | 2 | |
| Switch Operation | Momentary | |
| Contact Configuration | SPDT | |
| Housing Material | Glass Filled Polyester | |
| Switch Contact Current | 4A | |
| Key Type | Common | |
| Terminal Type | Solder | |
| Bezel Shape | Round | |
| Contact DC Voltage | 28V dc | |
| Contact AC Voltage | 125V ac | |
| Key Index Angle | 45° | |
| Standards/Approvals | cULUs File E83438 | |
| Contact Material | Copper Alloy | |
| Series | LK | |
| Mechanical Life | 6000Cycles | |
| Maximum Operating Temperature | -30°C | |
| Minimum Operating Temperature | 85°C | |
| Alles selecteren | ||
|---|---|---|
Merk APEM | ||
Product Type Keylock Switch | ||
Number of Positions 2 | ||
Switch Operation Momentary | ||
Contact Configuration SPDT | ||
Housing Material Glass Filled Polyester | ||
Switch Contact Current 4A | ||
Key Type Common | ||
Terminal Type Solder | ||
Bezel Shape Round | ||
Contact DC Voltage 28V dc | ||
Contact AC Voltage 125V ac | ||
Key Index Angle 45° | ||
Standards/Approvals cULUs File E83438 | ||
Contact Material Copper Alloy | ||
Series LK | ||
Mechanical Life 6000Cycles | ||
Maximum Operating Temperature -30°C | ||
Minimum Operating Temperature 85°C | ||
- Land van herkomst:
- CN
Apem 19mm Keylock Switches LK Series
Features and Benefits
• Single and double pole options
• Maximum of four positions
• Maintained, momentary switching
• Various key pull positions
• 45° or 90° indexing
• Full load mechanical life: 6000 cycles
• UL Approved
Approvals
UL
