StarTech.com 8 Port 1 Displays USB VGA Console 1280 x 1024 pixel Maximum Resolution

RS-stocknr.:: 186-3917
Artikelnummer Distrelec:: 302-31-545
Fabrikantnummer:: RKCONS1908K
Fabrikant:: StarTech.com

StarTech.com 8 Port 1 Displays USB VGA Console 1280 x 1024 pixel Maximum Resolution

Subtotaal (1 eenheid)*

€ 2.178,79

(excl. BTW)

€ 2.636,34

(incl. BTW)

GRATIS bezorging voor bestellingen van meer dan € 90,00

Op voorraad

3 stuk(s) klaar voor verzending vanaf een andere locatie

Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.

Aantal stuks	Per stuk
1 +	€ 2.178,79

*prijsindicatie

RS-stocknr.:: 186-3917
Artikelnummer Distrelec:: 302-31-545
Fabrikantnummer:: RKCONS1908K
Fabrikant:: StarTech.com

Specificaties

Datasheets

Wetgeving en compliance

Productomschrijving

Zoek vergelijkbare producten door een of meer kenmerken te selecteren.

Alles selecteren	Attribuut	Waarde
	Merk	StarTech.com
	Product Type	Console
	Video Connection Type	VGA
	Number of Ports	8
	Supported Number of Displays	1
	Number of Video Outputs	1
	Maximum Resolution	1280 x 1024 pixel
	Keyboard/Mouse Connection Type	USB
	Width	483mm
	Standards/Approvals	CE, RoHS, TAA, FC, UL
	Depth	643mm
	Height	43mm
	Keyboard Layout	99 Key full keyboard + numeric keypad

	Alles selecteren
	Merk StarTech.com
	Product Type Console
	Video Connection Type VGA
	Number of Ports 8
	Supported Number of Displays 1
	Number of Video Outputs 1
	Maximum Resolution 1280 x 1024 pixel
	Keyboard/Mouse Connection Type USB
	Width 483mm
	Standards/Approvals CE, RoHS, TAA, FC, UL
	Depth 643mm
	Height 43mm
	Keyboard Layout 99 Key full keyboard + numeric keypad

Land van herkomst:: CN

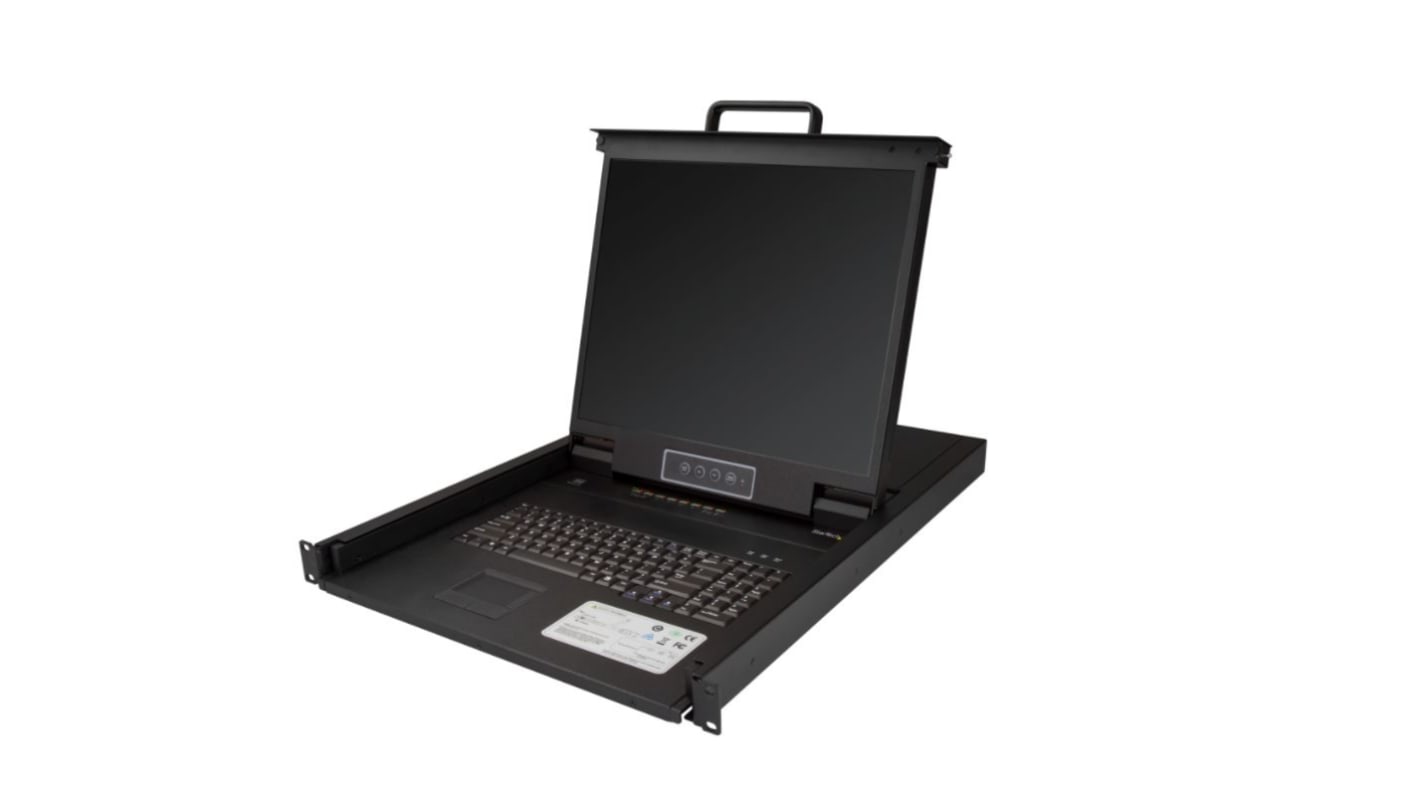

StarTech Console, 19in Display Size, 8 Port KVM Ports - RKCONS1908K

This rackmount console provides integrated keyboard, video and mouse control for multiple servers from a single 1U drawer. Designed for cabinet environments, it combines a 19 inch Active Matrix TFT LCD with an eight-port KVM switch and built-in input devices to allow direct management of connected systems. The unit operates across common international voltages and is intended for use where space efficiency and consolidated local console access are required.

Features and Benefits:

• Supports 1280 x 1024 resolution for detailed on-screen clarity
• Integrated USB keyboard and touchpad for direct local control
• Eight-port VGA KVM switch for centralised server access
• MTBF 50,000 hrs for prolonged operational availability
• Operating range 0°C to 40°C for standard server-room conditions

Applications

• Suitable for monitoring cabinet-mounted servers and switches
• Ideal for single-display administration of multiple hosts
• Used for local control in space-constrained racks
• Can be used for 24/5 technical support and maintenance tasks

What power inputs does the unit accept?

It accepts 100-240 VAC input with an input current of 1.5A and consumes 21W.

Which cabling and connectors are provided for host connection?

The package includes eight 1.8m KVM cables, VGA and USB-A host connectors, and additional VGA connectors for video.

How is the console secured and mounted in a rack?

It installs into a 1U rack space using supplied variable-length rails, M5 cage nuts and M5 screws for secure mounting.

What environmental storage and humidity limits apply?

Storage temperature ranges from -20°C to 60°C with permissible humidity between 10% and 80% RH.
