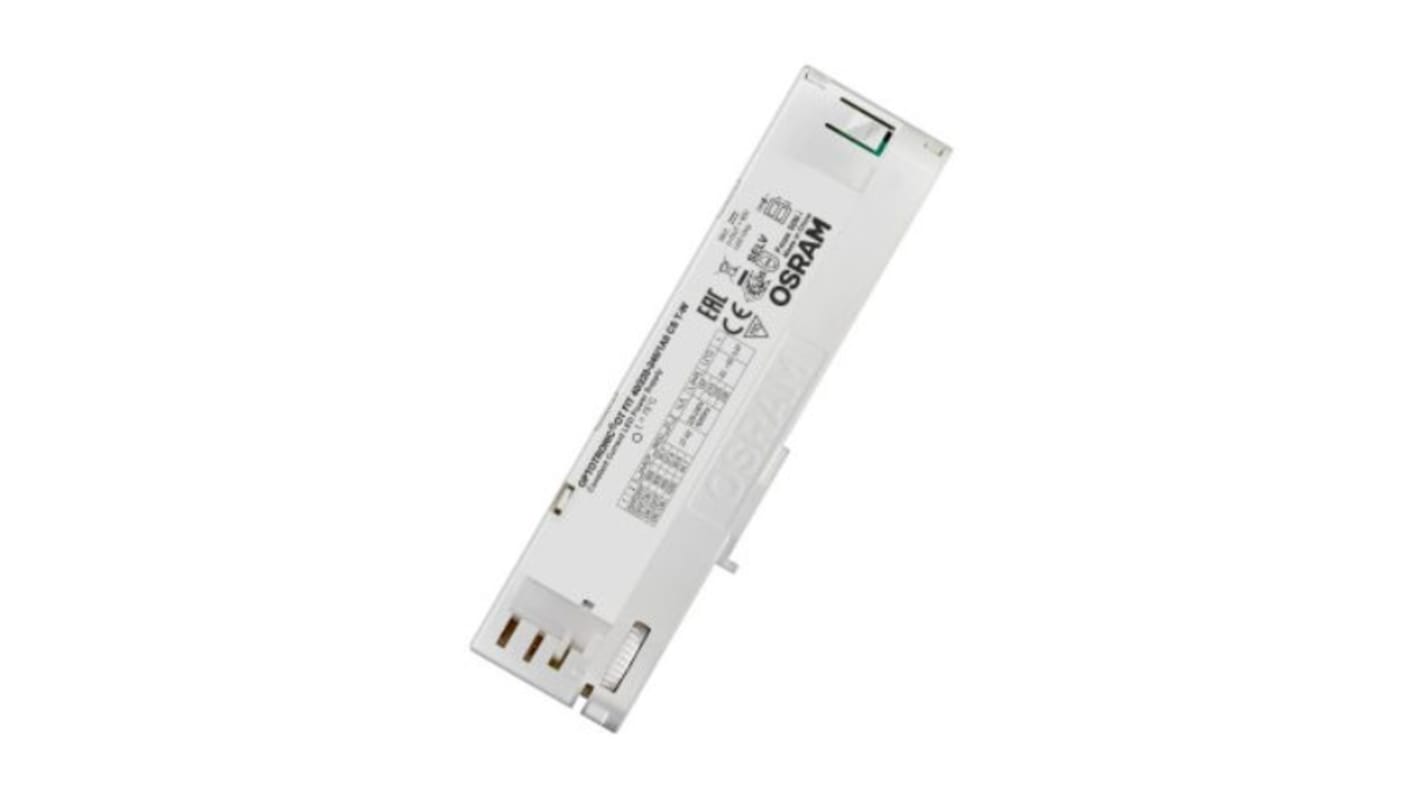

Osram IP20 5 Output LED Driver, 27V, 42 V, 40 W, 1050mA LED Driver
- RS-stocknr.:
- 223-1603
- Fabrikantnummer:
- OT-FIT-40/220-240/1A0-CS-T-W
- Fabrikant:
- Osram
Momenteel niet beschikbaar
We weten niet of dit item nog op voorraad komt, RS is van plan dit binnenkort uit ons assortiment te halen.
- RS-stocknr.:
- 223-1603
- Fabrikantnummer:
- OT-FIT-40/220-240/1A0-CS-T-W
- Fabrikant:
- Osram
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Osram | |
| Product Type | LED Driver | |
| Output Voltage | 27V, 42V | |
| Maximum Output Power | 40W | |
| Input Voltage | 220V, 240V | |
| Mount Type | Screw | |
| Sub Type | LED Driver | |
| Dimming Operation | No | |
| Input Voltage Type | AC | |
| Terminal Type | Push-in | |
| IP Rating | IP20 | |
| LED Voltage | 198V ac, 264V ac | |
| Driver Current | 1050mA | |
| Operating Modes | Constant Current | |
| Number of Outputs | 5 | |
| Standards/Approvals | ENEC, RCM, EAC, CQC, IEC, CE | |
| Series | OT FIT | |
| Configuration | Enclosed | |
| Power Dissipation | 5.5W | |
| Primary Type | AC-DC | |
| Alles selecteren | ||
|---|---|---|
Merk Osram | ||
Product Type LED Driver | ||
Output Voltage 27V, 42V | ||
Maximum Output Power 40W | ||
Input Voltage 220V, 240V | ||
Mount Type Screw | ||
Sub Type LED Driver | ||
Dimming Operation No | ||
Input Voltage Type AC | ||
Terminal Type Push-in | ||
IP Rating IP20 | ||
LED Voltage 198V ac, 264V ac | ||
Driver Current 1050mA | ||
Operating Modes Constant Current | ||
Number of Outputs 5 | ||
Standards/Approvals ENEC, RCM, EAC, CQC, IEC, CE | ||
Series OT FIT | ||
Configuration Enclosed | ||
Power Dissipation 5.5W | ||
Primary Type AC-DC | ||
- Land van herkomst:
- CN
The Osram Compact constant current LED driver is non dimmable.
High quality of light thanks to low output ripple current
High flexibility due to four different output currents per type
Short housing for minimum distance between spotlights
SELV system
