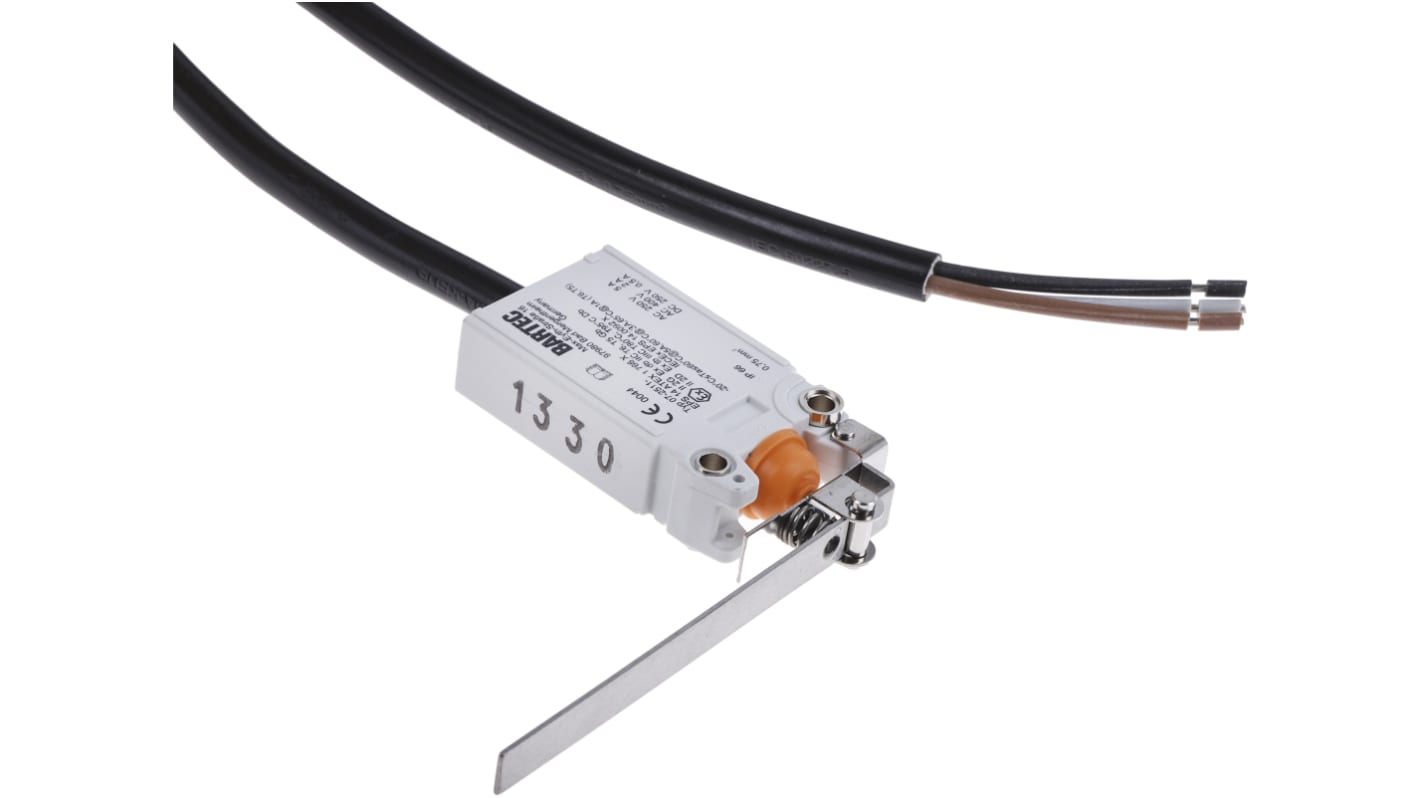

IP66 Snap Action Limit Switch, Plunger, Plastic, NO/NC, 400V
- RS-stocknr.:
- 742-710
- Fabrikantnummer:
- 07-2511-1330/43
- Fabrikant:
- Bartec
28 op voorraad - levertijd is 1 werkdag(en)
Prijs Per stuk
€ 92,47
(excl. BTW)
€ 111,89
(incl. BTW)
| Aantal stuks | Per stuk |
| 1 + | € 92,47 |
- RS-stocknr.:
- 742-710
- Fabrikantnummer:
- 07-2511-1330/43
- Fabrikant:
- Bartec
Wetgeving en compliance
- Land van herkomst:
- DE
Specificaties
Kenmerk | Waarde |
|---|---|
| Actuator Type | Plunger |
| Normal State Configuration | NO/NC |
| IP Rating | IP66 |
| Maximum Current | 7 A |
| Housing Material | Plastic |
| Maximum AC Voltage | 400V |
| Maximum DC Voltage | 250V |
| Contact Type | Snap Action |
| Terminal Type | Screw |
| Length | 46.2mm |
| Width | 25.5mm |
| Depth | 15.8mm |
| Dimensions | 46.2 x 25.5 x 15.8 mm |
| Hazardous Area Certification | ATEX |
| Mechanical Life Minimum | 2 x 10⁶ cycles |
| Maximum Operating Temperature | +40°C |
| Minimum Operating Temperature | -20°C |
