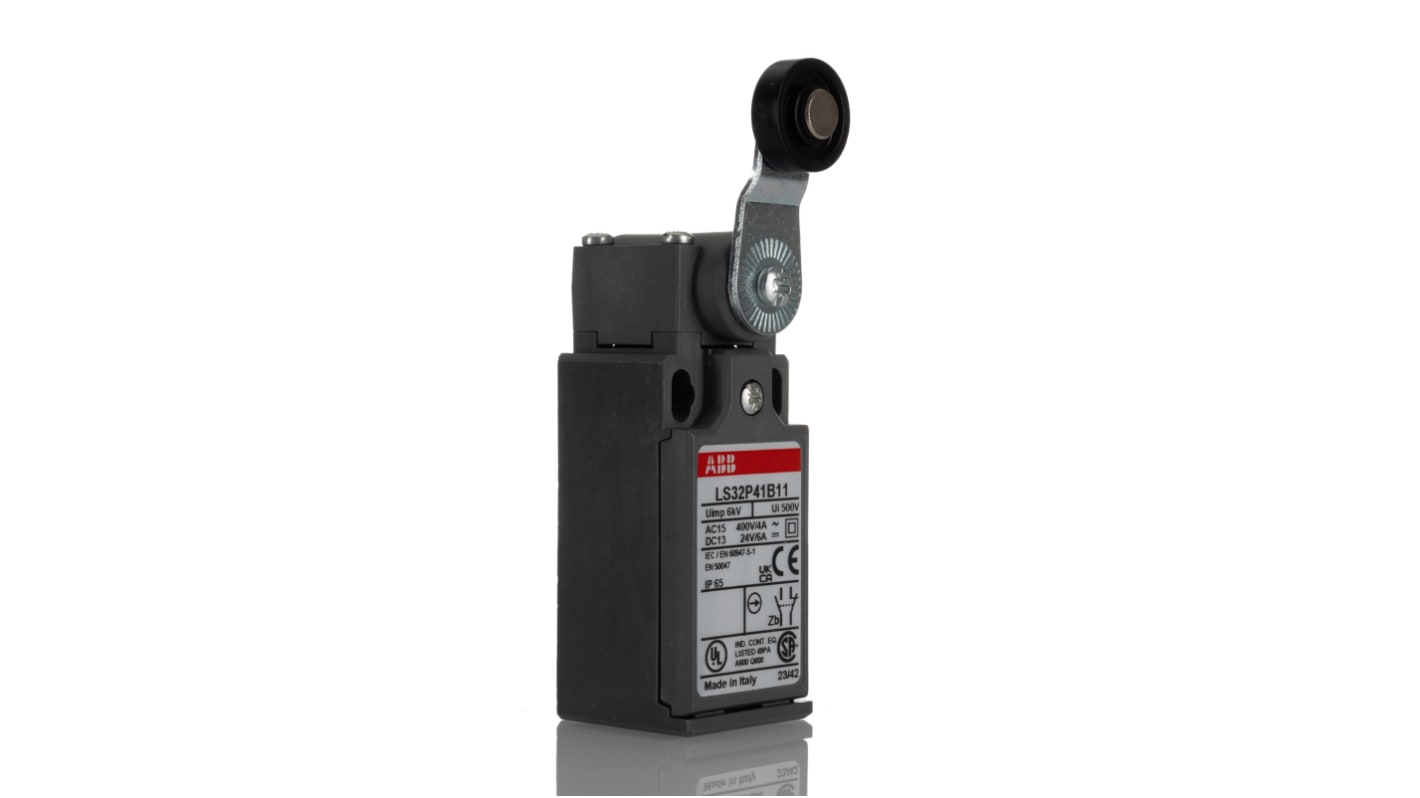

ABB Roller Lever Limit Switch, 1 NO/1 NC, IP65, Fibreglass Housing, 600V

RS-stocknr.:: 231-9055
Fabrikantnummer:: 1SBV010341R1211 LS32P41B11
Fabrikant:: ABB

ABB Roller Lever Limit Switch, 1 NO/1 NC, IP65, Fibreglass Housing, 600V

Bekijk alle Limit Switches

Subtotaal (1 doos van 1 eenheid)*

€ 28,67

(excl. BTW)

€ 34,69

(incl. BTW)

GRATIS bezorging voor bestellingen van meer dan € 90,00

Op voorraad

14 stuk(s) klaar voor verzending vanaf een andere locatie

Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.

Dozen	Per Doos
1 +	€ 28,67

*prijsindicatie

RS-stocknr.:: 231-9055
Fabrikantnummer:: 1SBV010341R1211 LS32P41B11
Fabrikant:: ABB

Specificaties

Datasheets

Wetgeving en compliance

Productomschrijving

Zoek vergelijkbare producten door een of meer kenmerken te selecteren.

Alles selecteren	Attribuut	Waarde
	Merk	ABB
	Actuator Type	Roller Lever
	Product Type	Limit Switch
	IP Rating	IP65
	Contact Configuration	1 NO/1 NC
	Housing Material	Fibreglass
	Contact Type	Snap Action
	Terminal Type	Screw
	Minimum Operating Temperature	-25°C
	Switching AC Voltage	600V
	Maximum Operating Temperature	70°C
	Length	45mm
	Depth	106mm
	Standards/Approvals	CCC, CE, CQC, cUL, RoHS, UKCA
	Width	30mm
	Hazardous Area Certification	No
	Mechanical Life	10000000Cycles
	Mounting Orientation	Top
	Conduit Entry	PG13.5

	Alles selecteren
	Merk ABB
	Actuator Type Roller Lever
	Product Type Limit Switch
	IP Rating IP65
	Contact Configuration 1 NO/1 NC
	Housing Material Fibreglass
	Contact Type Snap Action
	Terminal Type Screw
	Minimum Operating Temperature -25°C
	Switching AC Voltage 600V
	Maximum Operating Temperature 70°C
	Length 45mm
	Depth 106mm
	Standards/Approvals CCC, CE, CQC, cUL, RoHS, UKCA
	Width 30mm
	Hazardous Area Certification No
	Mechanical Life 10000000Cycles
	Mounting Orientation Top
	Conduit Entry PG13.5

Land van herkomst:: IT

ABB Limit Switch, IP65 , 600V Maximum AC Voltage - 1SBV010341R1211 LS32P41B11

This limit switch from ABB is designed to provide reliable performance in industrial applications. With an IP65 rating, it offers protection against dust and water ingress, making it suitable for use in challenging environments. The switch has a maximum AC voltage of 600V and a current rating of 10A, ensuring compatibility with a wide range of electrical systems.

Features & Benefits

• IP65 rating ensures protection against dust and water ingress

• Maximum AC voltage of 600V for versatile applications

• Current rating of 10A for reliable performance

• 2P pole and throw configuration for enhanced functionality

Applications

• Ideal for use in industrial automation systems

• Suitable for weather-resistant applications

• Can be used as a heavy-duty limit switch in mechanical equipment

Can it withstand harsh environmental conditions?

Yes, the IP65 rating makes it suitable for challenging environments.

Will it work with high-voltage systems?

Yes, it has a maximum AC voltage of 600V.

Is it easy to install and use?

Yes, it is designed for easy installation and operation."
