Aratas V Series Long Hinge Lever Limit Switch, SPDT, IP40, Silver Alloy Housing, 250V
- RS-stocknr.:
- 254-3161
- Fabrikantnummer:
- V-103-1A4
- Fabrikant:
- Aratas
Ontvang bulkkorting
Voeg 200 meer toe om 4% te besparen
Bekijk bulkkortingSubtotaal (1 zak van 100 eenheden)*
€ 207,50
(excl. BTW)
€ 251,10
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Tijdelijk niet op voorraad
- Verzending 100 stuk(s) vanaf 28 juni 2027
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk | Per Zak* | Bespaar |
|---|---|---|---|
| 100 - 100 | € 2,075 | € 207,50 | - |
| 200 - 400 | € 1,976 | € 197,60 | 4% |
| 500 + | € 1,927 | € 192,70 | 7% |
*prijsindicatie
- RS-stocknr.:
- 254-3161
- Fabrikantnummer:
- V-103-1A4
- Fabrikant:
- Aratas
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Aratas | |
| Actuator Type | Long Hinge Lever | |
| Product Type | Limit Switch | |
| Contact Configuration | SPDT | |
| IP Rating | IP40 | |
| Housing Material | Silver Alloy | |
| Terminal Type | Solder | |
| Series | V | |
| Minimum Operating Temperature | -25°C | |
| Switching AC Voltage | 250V | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | RoHS | |
| Hazardous Area Certification | No | |
| Operating Force | 0.34N | |
| Mechanical Life | 5000000Operations | |
| Alles selecteren | ||
|---|---|---|
Merk Aratas | ||
Actuator Type Long Hinge Lever | ||
Product Type Limit Switch | ||
Contact Configuration SPDT | ||
IP Rating IP40 | ||
Housing Material Silver Alloy | ||
Terminal Type Solder | ||
Series V | ||
Minimum Operating Temperature -25°C | ||
Switching AC Voltage 250V | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals RoHS | ||
Hazardous Area Certification No | ||
Operating Force 0.34N | ||
Mechanical Life 5000000Operations | ||
- Land van herkomst:
- JP

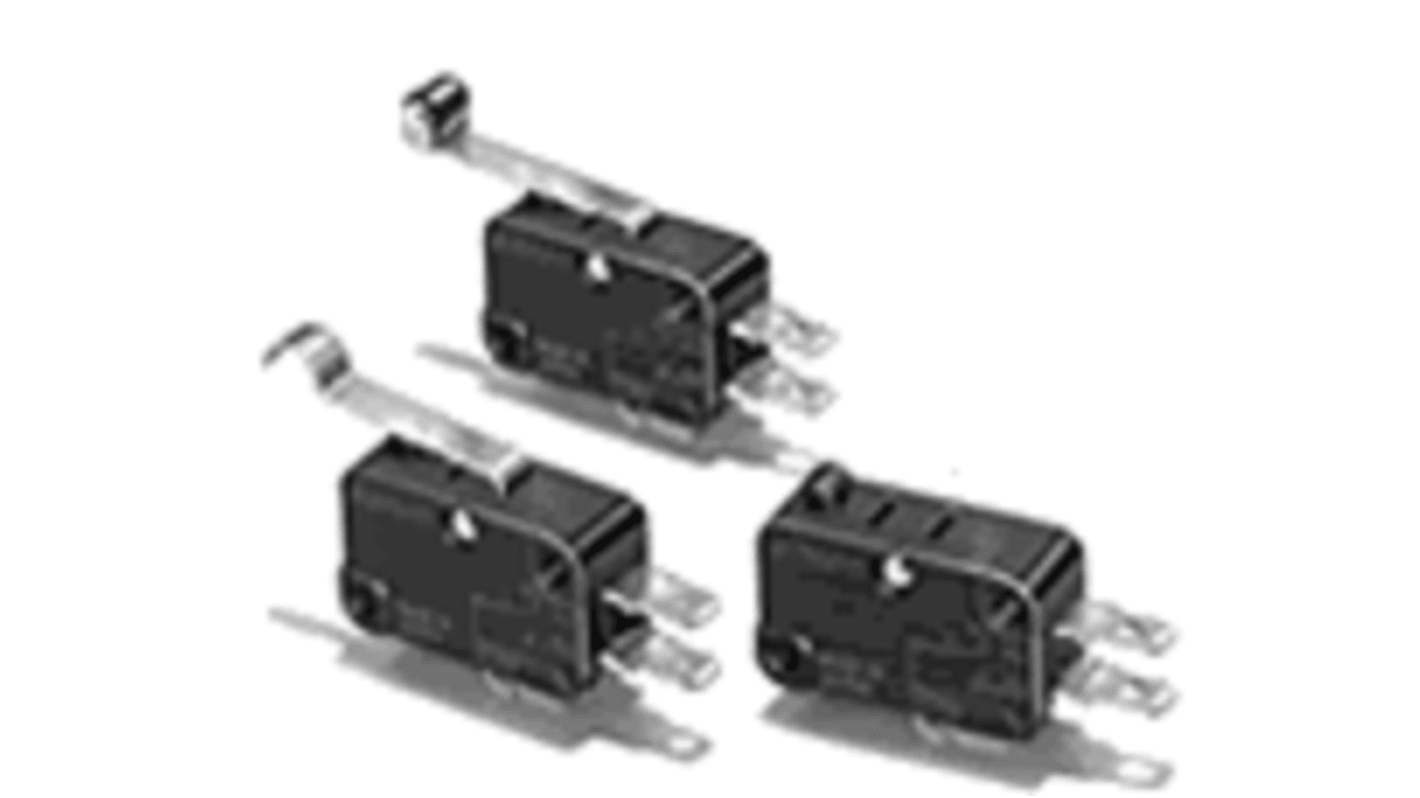

The Omron switch is miniature basic switch that offers high reliabilIty and securIty, wide variation of best-selling micro switches wIth switching currents of 10 to 21 A.
Permissible operating speed 0.1mm to 1 m/s maximum (pin plunger models)
Insulation resistance 100MΩ minimum (at 500 VDC with insulation tester)
Contact resistance (initial value) 15mΩ max
Degree of protection IEC IP40
Degree of protection against electric shock Class I
Proof tracking index (PTI) 175
