ABB LS33P11B11 Series Roller Lever Limit Switch, 1 NO/1 NC, IP66, Zinc Alloy Housing, 500V ac, 10A
- RS-stocknr.:
- 259-6088
- Fabrikantnummer:
- 1SBV012211R1211
- Fabrikant:
- ABB
Subtotaal (1 eenheid)*
€ 24,08
(excl. BTW)
€ 29,14
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Voorradig bij de fabrikant
- Klaar voor verzending vanaf 23 december 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 24,08 |
*prijsindicatie
- RS-stocknr.:
- 259-6088
- Fabrikantnummer:
- 1SBV012211R1211
- Fabrikant:
- ABB
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | ABB | |
| Product Type | Limit Switch | |
| Actuator Type | Roller Lever | |
| IP Rating | IP66 | |
| Contact Configuration | 1 NO/1 NC | |
| Housing Material | Zinc Alloy | |
| Contact Type | Snap Action | |
| Switching Current | 10A | |
| Terminal Type | Screw | |
| Series | LS33P11B11 | |
| Minimum Operating Temperature | -25°C | |
| Switching AC Voltage | 500V ac | |
| Maximum Operating Temperature | 70°C | |
| Width | 73mm | |
| Length | 30mm | |
| Depth | 30mm | |
| Standards/Approvals | UL/CSA, EU Directive 2011/65/EU, IEC 60529, IEC 60947-5-1 | |
| Hazardous Area Certification | No | |
| Mounting Orientation | Vertical | |
| Conduit Entry | 1 x M20 x 1.5 | |
| Mechanical Life | 30Operations | |
| Alles selecteren | ||
|---|---|---|
Merk ABB | ||
Product Type Limit Switch | ||
Actuator Type Roller Lever | ||
IP Rating IP66 | ||
Contact Configuration 1 NO/1 NC | ||
Housing Material Zinc Alloy | ||
Contact Type Snap Action | ||
Switching Current 10A | ||
Terminal Type Screw | ||
Series LS33P11B11 | ||
Minimum Operating Temperature -25°C | ||
Switching AC Voltage 500V ac | ||
Maximum Operating Temperature 70°C | ||
Width 73mm | ||
Length 30mm | ||
Depth 30mm | ||
Standards/Approvals UL/CSA, EU Directive 2011/65/EU, IEC 60529, IEC 60947-5-1 | ||
Hazardous Area Certification No | ||
Mounting Orientation Vertical | ||
Conduit Entry 1 x M20 x 1.5 | ||
Mechanical Life 30Operations | ||
- Land van herkomst:
- IT
1SBV012211R1211

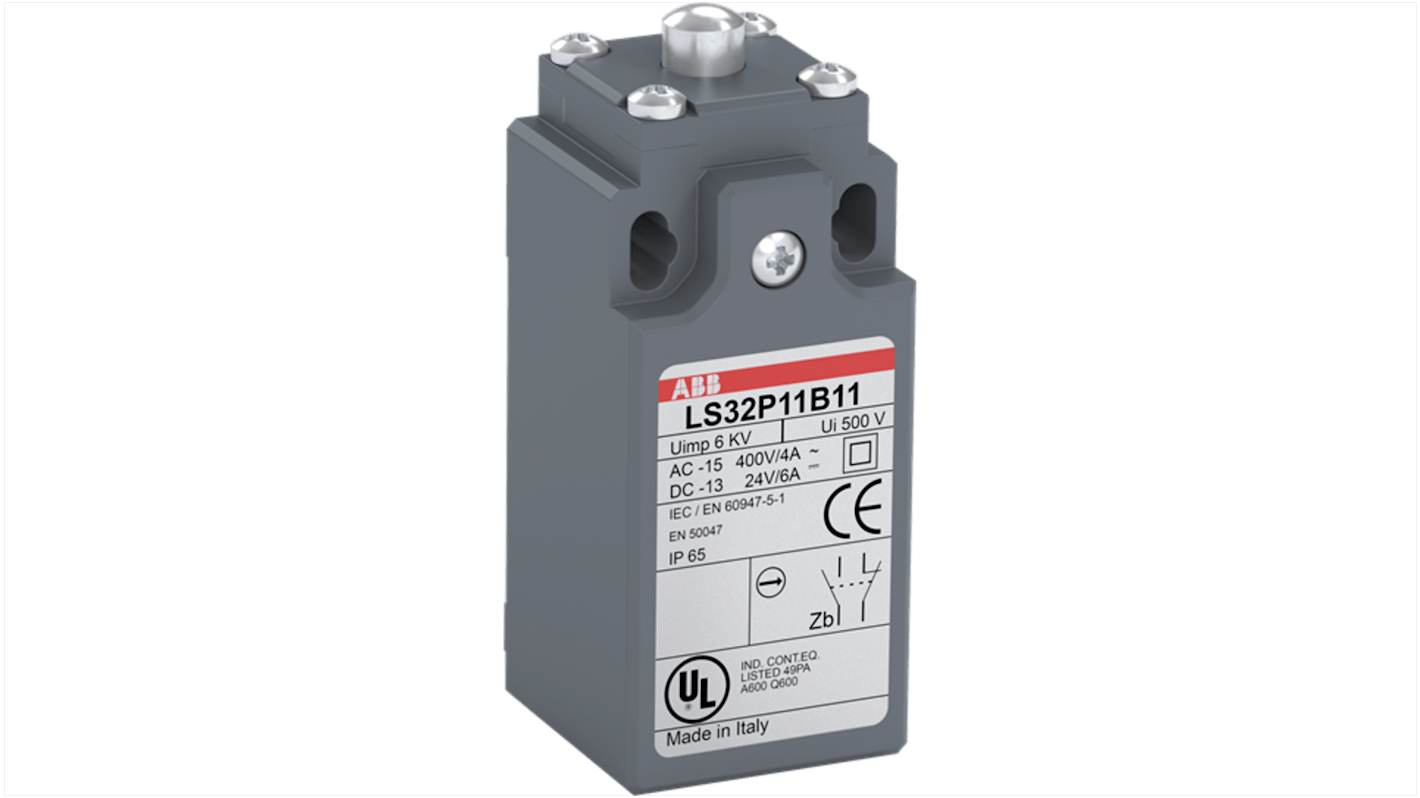

The ABB 30 mm wide standard limit switch is made of fibre-glass reinforced UL-V0 material with 2 mounting holes at the top. It has 1 ISO M20x1.5 cable entry on the bottom, plain steel plunger actuator and 1 N.O + 1 N.C snap action (Zb type) contacts.
30 millions operations B10d value
Degree of protection acc. to IEC 60529 IP65
