ABB LS33P32B11 Series Roller Lever Limit Switch, 1 NO/1 NC, IP65, Plastic Housing, 500V ac, 10A
- RS-stocknr.:
- 259-6089
- Fabrikantnummer:
- 1SBV012232R1211
- Fabrikant:
- ABB
Subtotaal (1 eenheid)*
€ 31,58
(excl. BTW)
€ 38,21
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Op voorraad
- 5 stuk(s) klaar voor verzending
- 19 stuk(s) klaar voor verzending vanaf een andere locatie
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 31,58 |
*prijsindicatie
- RS-stocknr.:
- 259-6089
- Fabrikantnummer:
- 1SBV012232R1211
- Fabrikant:
- ABB
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | ABB | |
| Product Type | Limit Switch | |
| Actuator Type | Roller Lever | |
| IP Rating | IP65 | |
| Contact Configuration | 1 NO/1 NC | |
| Housing Material | Plastic | |
| Contact Type | Snap Action | |
| Terminal Type | Screw | |
| Switching Current | 10A | |
| Series | LS33P32B11 | |
| Minimum Operating Temperature | -25°C | |
| Switching AC Voltage | 500V ac | |
| Maximum Operating Temperature | 70°C | |
| Width | 36mm | |
| Length | 30mm | |
| Depth | 30mm | |
| Standards/Approvals | EU Directive 2011/65/EU, IEC 60947-5-1, UL/CSA | |
| Hazardous Area Certification | NO | |
| Conduit Entry | 1 x M20 x 1.5 | |
| Mechanical Life | 30Operations | |
| Mounting Orientation | Vertical | |
| Alles selecteren | ||
|---|---|---|
Merk ABB | ||
Product Type Limit Switch | ||
Actuator Type Roller Lever | ||
IP Rating IP65 | ||
Contact Configuration 1 NO/1 NC | ||
Housing Material Plastic | ||
Contact Type Snap Action | ||
Terminal Type Screw | ||
Switching Current 10A | ||
Series LS33P32B11 | ||
Minimum Operating Temperature -25°C | ||
Switching AC Voltage 500V ac | ||
Maximum Operating Temperature 70°C | ||
Width 36mm | ||
Length 30mm | ||
Depth 30mm | ||
Standards/Approvals EU Directive 2011/65/EU, IEC 60947-5-1, UL/CSA | ||
Hazardous Area Certification NO | ||
Conduit Entry 1 x M20 x 1.5 | ||
Mechanical Life 30Operations | ||
Mounting Orientation Vertical | ||
1SBV012232R1211

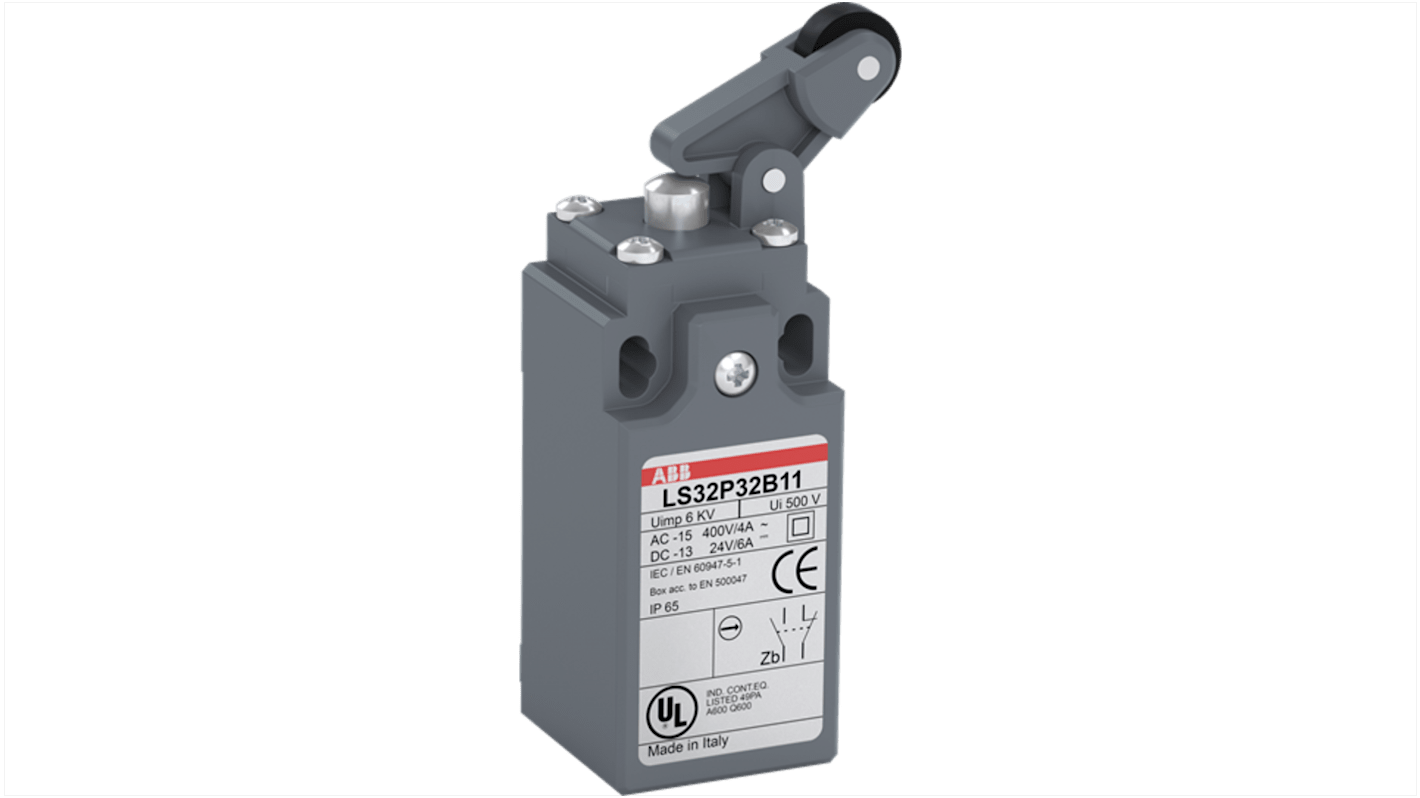

The ABB standard limit switch 30 mm wide is made of fibre-glass reinforced UL-V0 material with 2 mounting holes at the top. It has 1 ISO M20x1.5 cable entry on the bottom, plastic roller lever (Ø14 mm) on steel plunger actuator for vertical movement and 1 N.O + 1 N.C snap action (Zb type) contacts.
30 millions operations B10d value
Degree of protection acc. to IEC 60529 IP65
