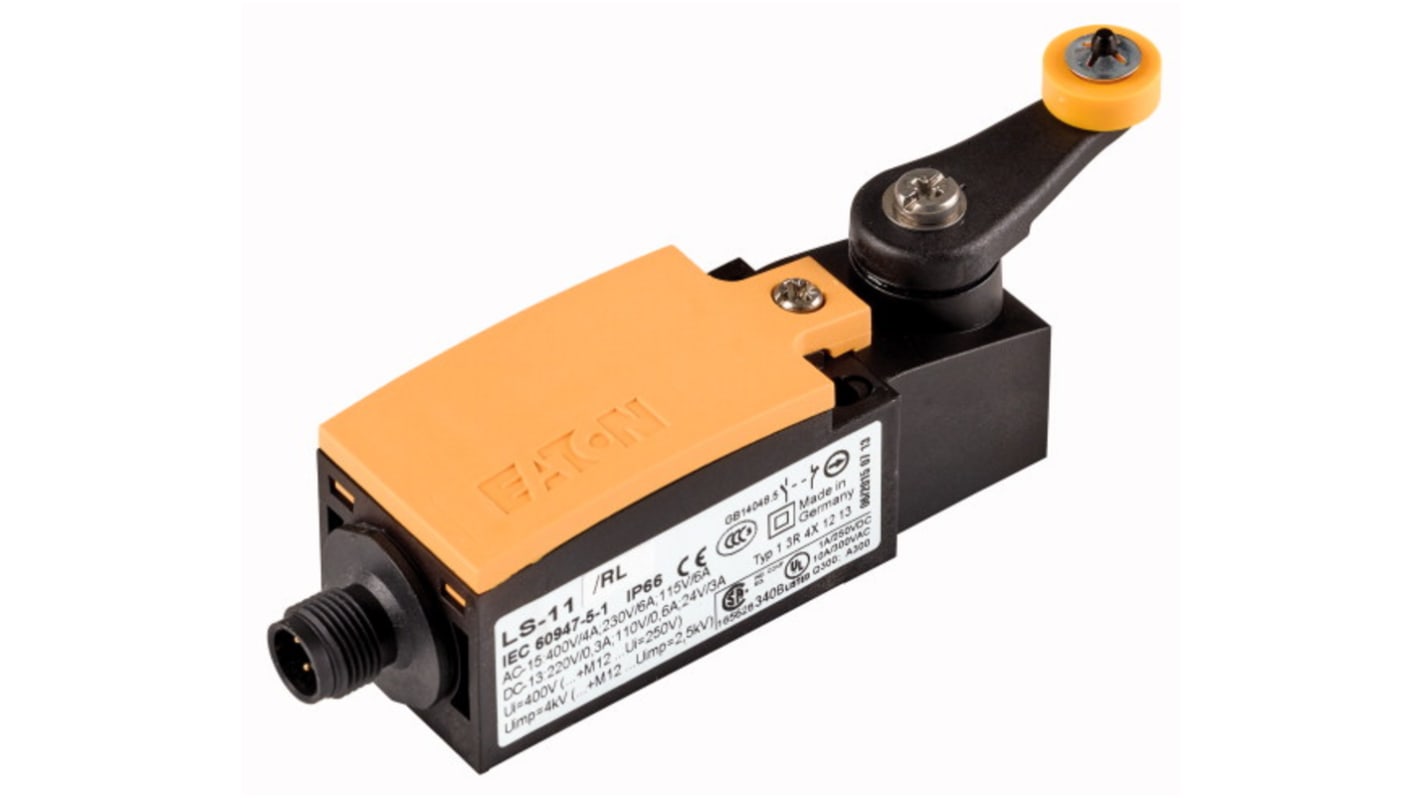

Eaton Rotary Limit Switch, IP66, Plastic Housing, 400V
- RS-stocknr.:
- 273-6449
- Fabrikantnummer:
- 178142 LS-11S/RL-M12A
- Fabrikant:
- Eaton
Subtotaal (1 eenheid)*
€ 64,03
(excl. BTW)
€ 77,48
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Op voorraad
- 4 stuk(s) klaar voor verzending
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 64,03 |
*prijsindicatie
- RS-stocknr.:
- 273-6449
- Fabrikantnummer:
- 178142 LS-11S/RL-M12A
- Fabrikant:
- Eaton
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Eaton | |
| Actuator Type | Rotary | |
| Product Type | Limit Switch | |
| IP Rating | IP66 | |
| Housing Material | Plastic | |
| Contact Type | Snap Action | |
| Terminal Type | Cage Clamp Terminal | |
| Series | Eaton Moeller | |
| Minimum Operating Temperature | -25°C | |
| Switching AC Voltage | 400V | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | EN 50047 Form A, IEC/EN 60947 | |
| Depth | 33.5mm | |
| Length | 33.5mm | |
| Width | 31mm | |
| Hazardous Area Certification | No | |
| Alles selecteren | ||
|---|---|---|
Merk Eaton | ||
Actuator Type Rotary | ||
Product Type Limit Switch | ||
IP Rating IP66 | ||
Housing Material Plastic | ||
Contact Type Snap Action | ||
Terminal Type Cage Clamp Terminal | ||
Series Eaton Moeller | ||
Minimum Operating Temperature -25°C | ||
Switching AC Voltage 400V | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals EN 50047 Form A, IEC/EN 60947 | ||
Depth 33.5mm | ||
Length 33.5mm | ||
Width 31mm | ||
Hazardous Area Certification No | ||
- Land van herkomst:
- DE
The Eaton Position switch has rotary lever type control element. The position switch enclosure has yellow colour cover. It has 8000000 operations mechanical lifespan with 6000 operations per Hz operating frequency.
Positive opening
Snap action contact
IEC EN 60947 standards
IP66 degree of protection
UL CE CSA and UL 508 compliances
Note
Eaton formerly known as Moeller
