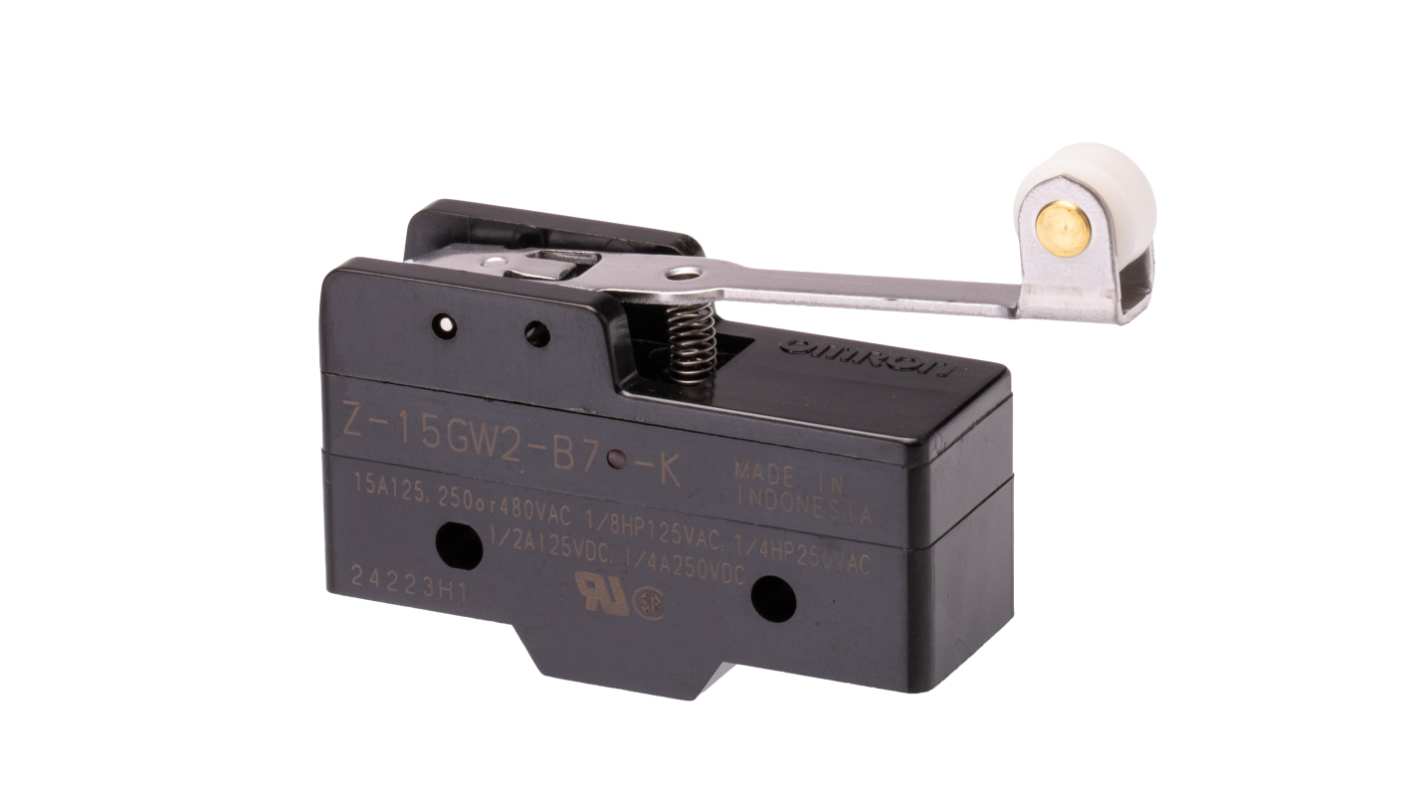

Omron Z Series Roller Lever Limit Switch, SPDT, IP00, Thermosetting Resin Housing, 500V

RS-stocknr.:: 822-5614
Fabrikantnummer:: Z-15GW2-B7-K
Fabrikant:: Omron

Omron Z Series Roller Lever Limit Switch, SPDT, IP00, Thermosetting Resin Housing, 500V

Bulkkorting beschikbaar

Subtotaal (1 eenheid)*

€ 23,12

(excl. BTW)

€ 27,98

(incl. BTW)

GRATIS bezorging voor bestellingen van meer dan € 90,00

Op voorraad

12 stuk(s) klaar voor verzending vanaf een andere locatie
Plus verzending 20 stuk(s) vanaf 29 mei 2026
Plus verzending 5 stuk(s) vanaf 03 juni 2026

Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.

Aantal stuks	Per stuk
1 - 4	€ 23,12
5 - 9	€ 22,49
10 +	€ 21,88

*prijsindicatie

RS-stocknr.:: 822-5614
Fabrikantnummer:: Z-15GW2-B7-K
Fabrikant:: Omron

Specificaties

Datasheets

Wetgeving en compliance

Productomschrijving

Zoek vergelijkbare producten door een of meer kenmerken te selecteren.

Alles selecteren	Attribuut	Waarde
	Merk	Omron
	Actuator Type	Roller Lever
	Product Type	Limit Switch
	Contact Configuration	SPDT
	IP Rating	IP00
	Housing Material	Thermosetting Resin
	Contact Type	Snap Action
	Terminal Type	Screw
	Series	Z
	Minimum Operating Temperature	-25°C
	Switching AC Voltage	500V
	Maximum Operating Temperature	80°C
	Length	49.2mm
	Depth	17.45mm
	Standards/Approvals	RoHS, CSA, CE, CCC, UL
	Width	29.4mm
	Hazardous Area Certification	No
	Mechanical Life	20000000Operations
	Operating Force	3.43N
	Mounting Orientation	Side

	Alles selecteren
	Merk Omron
	Actuator Type Roller Lever
	Product Type Limit Switch
	Contact Configuration SPDT
	IP Rating IP00
	Housing Material Thermosetting Resin
	Contact Type Snap Action
	Terminal Type Screw
	Series Z
	Minimum Operating Temperature -25°C
	Switching AC Voltage 500V
	Maximum Operating Temperature 80°C
	Length 49.2mm
	Depth 17.45mm
	Standards/Approvals RoHS, CSA, CE, CCC, UL
	Width 29.4mm
	Hazardous Area Certification No
	Mechanical Life 20000000Operations
	Operating Force 3.43N
	Mounting Orientation Side

Omron Limit Switch, NO/NC Normal State Configuration, 15A Maximum Current - Z-15GW2-B7-K

This limit switch is designed for precision and reliability in industrial and commercial applications. It features a roller lever actuator style that ensures smooth operation and high durability. With a robust thermosetting resin construction, it is suitable for tasks that require high current handling and durability. This switch efficiently supports automation and control systems, ensuring functional continuity.

Features & Benefits

• Maximum current rating of 15A for effective performance

• Snap action mechanism enhances responsiveness

• Wide temperature operation range of -25°C to +80°C for versatility

• Mechanical life of 20 million operations for extended use

• SPDT configuration allows for flexible wiring options

Applications

• Used in conveyor systems for position feedback

• Suitable for machinery that requires precise limit detection

• Utilised in control circuits for accurate equipment management

• Applicable in robotics for motion detection and control

How does the roller lever design benefit operation?

The roller lever facilitates easy actuation and increases precision in limit detection, making it well-suited for applications where consistent feedback is essential.

Can this switch used in a damp or dusty environment?

Yes, the switch has an IP63 protection rating, which means it is resistant to dust and water spray, making it suitable for use in industrial environments.

How do I mount it correctly?

Mounting requires M4 screws, tightened to a torque of 12 to 15 kg-cm ensure stable positioning for optimal performance.
