RS PRO Plunger Limit Switch, 1 NO/1 NC, IP67, Thermoplastic Housing, 240V ac, 5A
- RS-stocknr.:
- 902-6941
- Fabrikant:
- RS PRO
Subtotaal (1 eenheid)*
€ 37,42
(excl. BTW)
€ 45,28
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Op voorraad
- 540 stuk(s) klaar voor verzending
- 35 stuk(s) klaar voor verzending vanaf een andere locatie
- Plus verzending 144 stuk(s) vanaf 21 september 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 37,42 |
*prijsindicatie
- RS-stocknr.:
- 902-6941
- Fabrikant:
- RS PRO
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | RS PRO | |
| Product Type | Limit Switch | |
| Actuator Type | Plunger | |
| IP Rating | IP67 | |
| Contact Configuration | 1 NO/1 NC | |
| Housing Material | Thermoplastic | |
| Contact Type | Snap Action | |
| Terminal Type | Cable | |
| Switching Current | 5A | |
| Switching AC Voltage | 240V ac | |
| Switching DC Voltage | 250V dc | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 70°C | |
| Width | 74mm | |
| Standards/Approvals | CE, CSA, EN, IEC, IMQ, RoHS, RU, UL | |
| Length | 31.5mm | |
| Depth | 16mm | |
| Hazardous Area Certification | No | |
| Mechanical Life | 10000000Operations | |
| Mounting Orientation | Vertical | |
| Operating Force | 15N | |
| Alles selecteren | ||
|---|---|---|
Merk RS PRO | ||
Product Type Limit Switch | ||
Actuator Type Plunger | ||
IP Rating IP67 | ||
Contact Configuration 1 NO/1 NC | ||
Housing Material Thermoplastic | ||
Contact Type Snap Action | ||
Terminal Type Cable | ||
Switching Current 5A | ||
Switching AC Voltage 240V ac | ||
Switching DC Voltage 250V dc | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 70°C | ||
Width 74mm | ||
Standards/Approvals CE, CSA, EN, IEC, IMQ, RoHS, RU, UL | ||
Length 31.5mm | ||
Depth 16mm | ||
Hazardous Area Certification No | ||
Mechanical Life 10000000Operations | ||
Mounting Orientation Vertical | ||
Operating Force 15N | ||
- Land van herkomst:
- IT

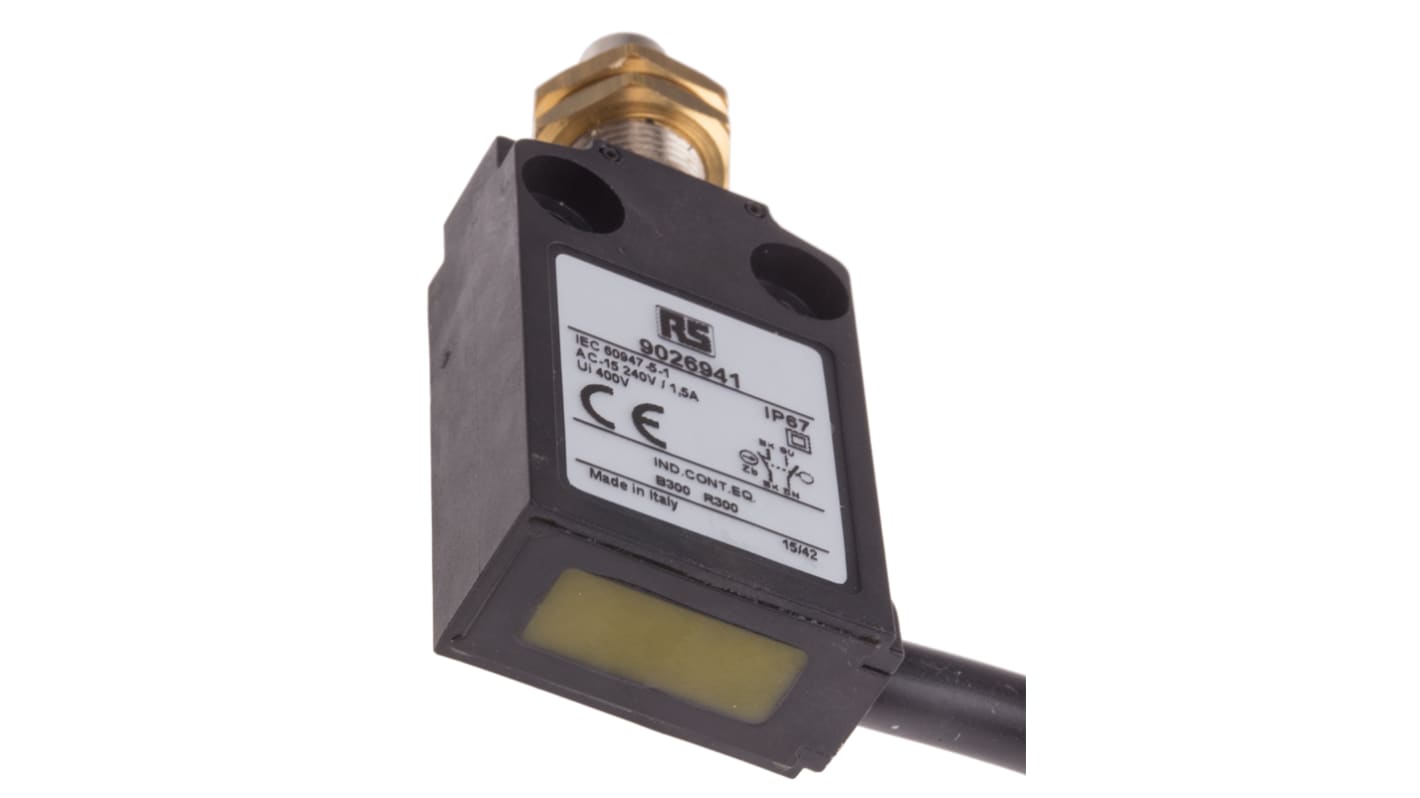

RS PRO Snap Action Limit Switch, Thermoplastic, NO/NC, Plunger, 240 V, IP67
This RS PRO plunger-type limit switch features two connections – one NO (normally open) and one NC (normally closed). When an object pushes the plunger down, the switches change position, allowing you to detect or count the objects or monitor their limit of travel.
The limit switch has a double-insulated thermoplastic casing for increased safety and protection. It also has an IP67 rating, so it's dust-tight, touch-proof and resistant to temporary immersion in up to 1 m of water.
This product won't interfere with the operation of sensitive electronic equipment or components as it meets international electrostatic control standards. It's pre-wired with a polyvinyl chloride (PVC) cable for easy installation.
Features and Benefits
