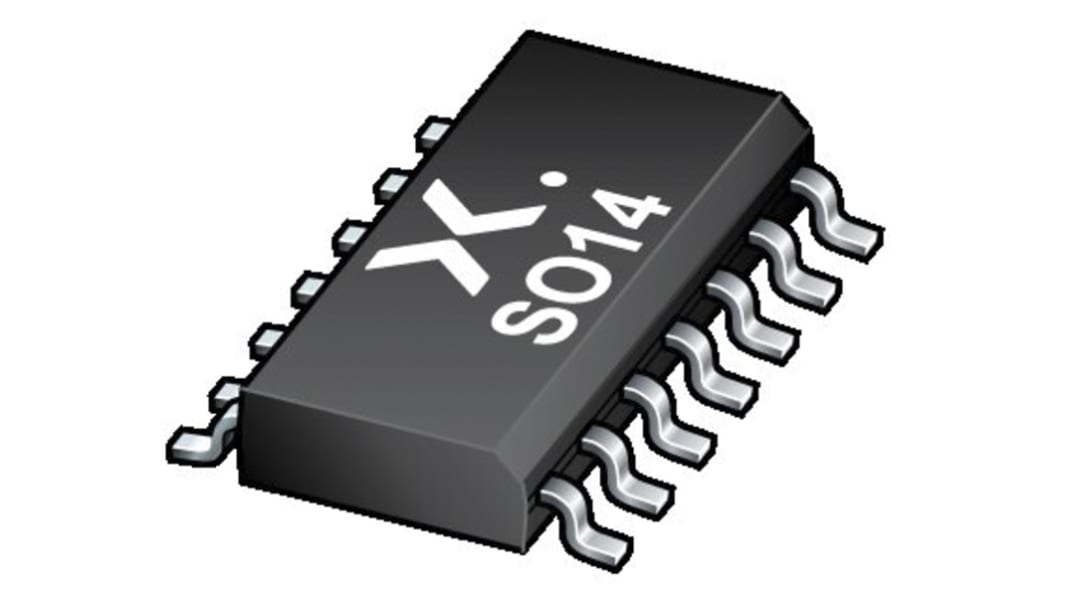

Nexperia 74LVC08AD,118 Logic Gate
- RS-stocknr.:
- 182-1896
- Fabrikantnummer:
- 74LVC08AD,118
- Fabrikant:
- Nexperia
Momenteel niet beschikbaar
We weten niet of dit item nog op voorraad komt, RS is van plan dit binnenkort uit ons assortiment te halen.
- RS-stocknr.:
- 182-1896
- Fabrikantnummer:
- 74LVC08AD,118
- Fabrikant:
- Nexperia
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Nexperia | |
| Product Type | Logic Gate | |
| Alles selecteren | ||
|---|---|---|
Merk Nexperia | ||
Product Type Logic Gate | ||
- Land van herkomst:
- CN
The Boolean logic AND function in a variety of technologies and packages To ensure you can easily find the right AND gate for your system we offer many technology and package options. All deliver reliable performance, with features to help you get the most out of your application.
Mixed 5 V and 3.3 V applications
Reduce time to market for complex designs
Save board space
Open-drain output options
Improved signal integrity for complex layouts
Wide supply voltage range
Low propagation delay
Over voltage tolerant options
Low input threshold options
CMOS low power
Cell phone
Computing
STB
LCD TV
Industrial controllers
The 74LVC08A provides four 2-input AND gates. Inputs can be driven from either 3.3 V or 5 V devices. This feature allows the use of these devices as translators in mixed 3.3 V and 5 V applications.
7 V tolerant inputs for interfacing with 5 V logic
Wide supply voltage range from 1.2 to 3.6 V
CMOS low power consumption
Direct interface with TTL levels
Specified from -40 °C to +85 °C and -40 °C to +125 °C
