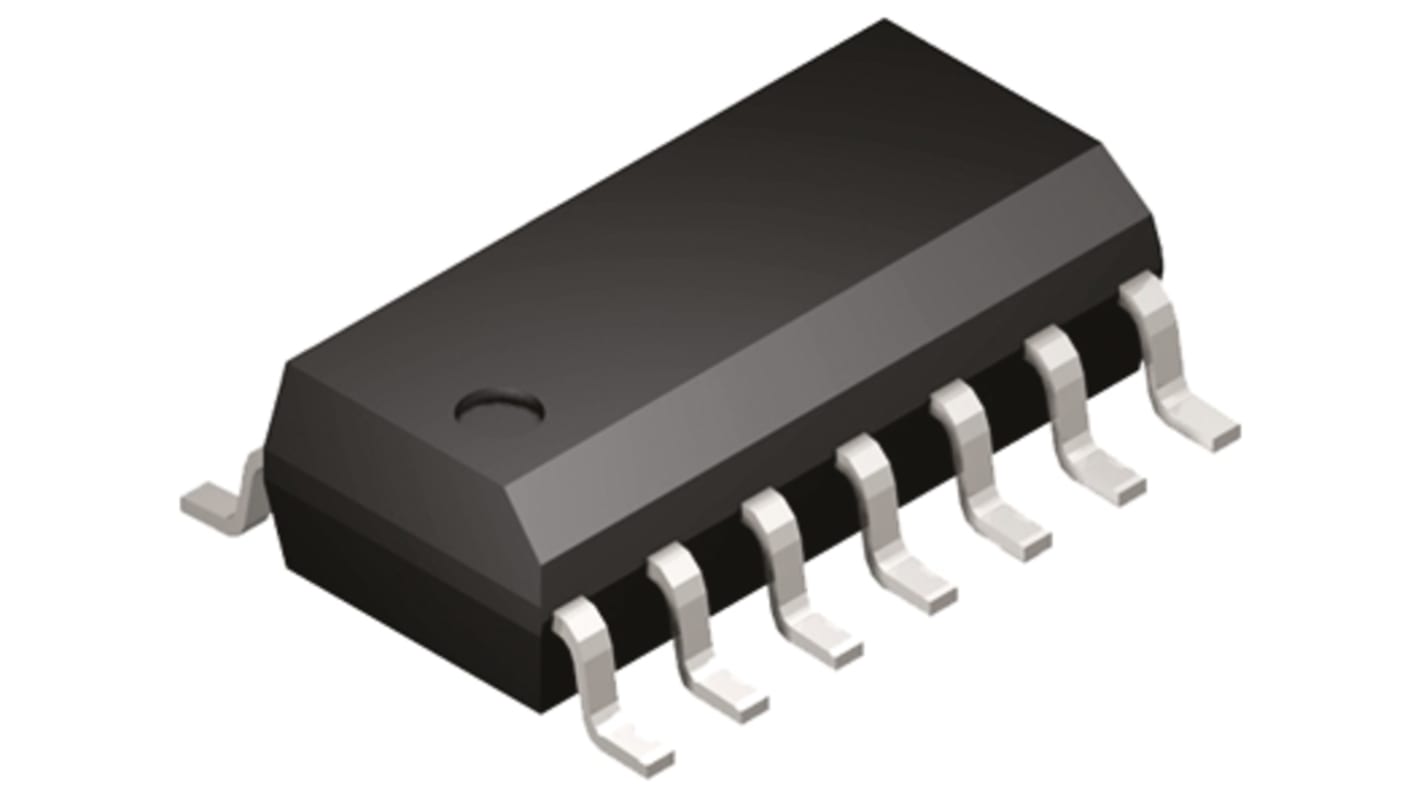

onsemi MC74AC02DG, Quad 2-Input NOR Schmitt Trigger Logic Gate, 14-Pin SOIC

Merk

onsemi

Logic Function

NOR

Mounting Type

Surface Mount

Number of Elements

4

Number of Inputs per Gate

2

Schmitt Trigger Input

Yes

Package Type

SOIC

Pin Count

14

Logic Family

74AC

Input Type

CMOS

Maximum Operating Supply Voltage

6 V

Maximum High Level Output Current

-24mA

Maximum Propagation Delay Time @ Maximum CL

8 ns @ 50 pF

Minimum Operating Supply Voltage

2 V

Maximum Low Level Output Current

24mA

Length

8.75mm

Propagation Delay Test Condition

50pF

Output Type

CMOS

Maximum Operating Temperature

+85 °C

Width

4mm

Height

1.5mm

Minimum Operating Temperature

-40 °C

Dimensions

8.75 x 4 x 1.5mm
