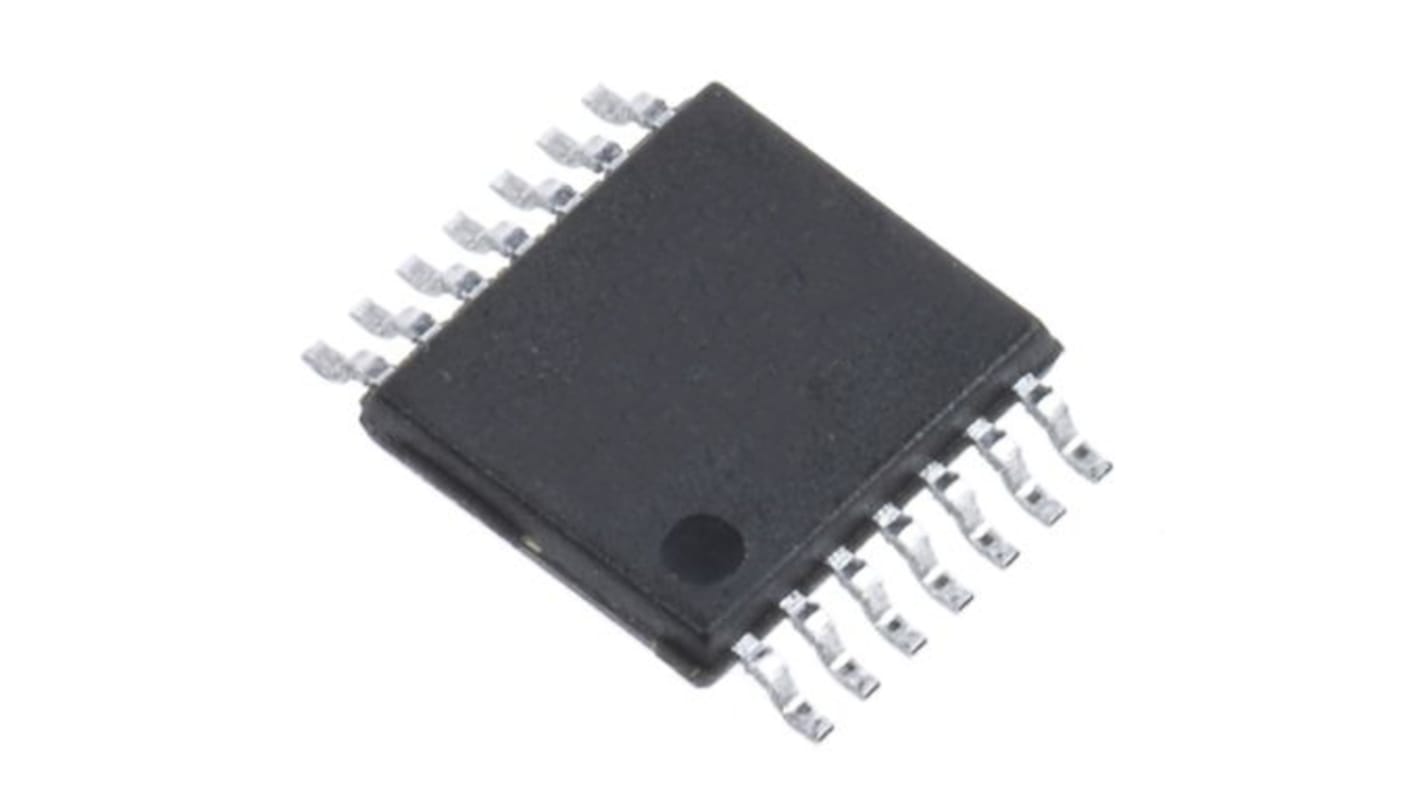

onsemi, 6 6-Input Inverter Logic Gate, 14-Pin TSSOP
- RS-stocknr.:
- 186-7224
- Fabrikantnummer:
- 74AC04MTCX
- Fabrikant:
- onsemi
Momenteel niet beschikbaar
We weten niet of dit item nog op voorraad komt, RS is van plan dit binnenkort uit ons assortiment te halen.
- RS-stocknr.:
- 186-7224
- Fabrikantnummer:
- 74AC04MTCX
- Fabrikant:
- onsemi
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | onsemi | |
| Product Type | Logic Gate | |
| Logic Function | Inverter | |
| Mount Type | Surface | |
| Number of Elements | 6 | |
| Number of Inputs per Gate | 6 | |
| Schmitt Trigger Input | No | |
| Package Type | TSSOP | |
| Pin Count | 14 | |
| Logic Family | AC | |
| Input Type | TTL | |
| Maximum Propagation Delay Time @ CL | 7.5ns | |
| Minimum Operating Temperature | -40°C | |
| Maximum High Level Output Current | -24mA | |
| Maximum Operating Temperature | 85°C | |
| Width | 4.5 mm | |
| Maximum Supply Voltage | 6V | |
| Height | 1.05mm | |
| Length | 5.1mm | |
| Standards/Approvals | No | |
| Minimum Supply Voltage | 2V | |
| Maximum Low Level Output Current | 24mA | |
| Automotive Standard | No | |
| Alles selecteren | ||
|---|---|---|
Merk onsemi | ||
Product Type Logic Gate | ||
Logic Function Inverter | ||
Mount Type Surface | ||
Number of Elements 6 | ||
Number of Inputs per Gate 6 | ||
Schmitt Trigger Input No | ||
Package Type TSSOP | ||
Pin Count 14 | ||
Logic Family AC | ||
Input Type TTL | ||
Maximum Propagation Delay Time @ CL 7.5ns | ||
Minimum Operating Temperature -40°C | ||
Maximum High Level Output Current -24mA | ||
Maximum Operating Temperature 85°C | ||
Width 4.5 mm | ||
Maximum Supply Voltage 6V | ||
Height 1.05mm | ||
Length 5.1mm | ||
Standards/Approvals No | ||
Minimum Supply Voltage 2V | ||
Maximum Low Level Output Current 24mA | ||
Automotive Standard No | ||
The AC/ACT04 contains six inverters.
ICC reduced by 50% on 74AC only
Outputs source/sink 24 mA
ACT04 has TTL-compatible inputs
Applications
This product is general usage and suitable for many different applications.
