RS PRO RS 1113 Differential Manometer With 2 Pressure Port/s, Max Pressure Measurement 2 bar

Bekijk alle Manometers

Subtotaal (1 eenheid)*

€ 339,82

(excl. BTW)

€ 411,18

(incl. BTW)

Add to Basket
selecteer of typ hoeveelheid
Bestellingen onder € 75,00 (excl. BTW) € 5,95.
Op voorraad
  • Plus verzending 13 stuk(s) vanaf 16 februari 2026
  • Plus verzending 23 stuk(s) vanaf 16 februari 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks
Per stuk
1 +€ 339,82

*prijsindicatie

RS-stocknr.:
205-0976
Fabrikant:
RS PRO
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren

Merk

RS PRO

Accuracy

±0.2 %

Product Type

Manometer

Number of Pressure Ports

2

Maximum Pressure Measurement

2bar

Minimum Pressure Measurement

-2bar

Pressure Port Type

Differential

Leak Testing

No

Minimum/Maximum Recordings

Yes

Data Logging

No

Model Number

RS 1113

Intrinsically Safe

No

Power Source

Battery

IP Rating

IP67

Minimum Operating Temperature

-20°C

Maximum Overpressure

3100hPa

Battery Type

AA

Battery Life

3000h

Display Type

LCD Backlight

Maximum Operating Temperature

50°C

Standards/Approvals

CE Declarations Manufacturer Conformity

Height

108mm

Length

54mm

Width

28 mm

Weight

140g

Hazardous Area Certification

No

Calibrated

RSCAL

Land van herkomst:
DE

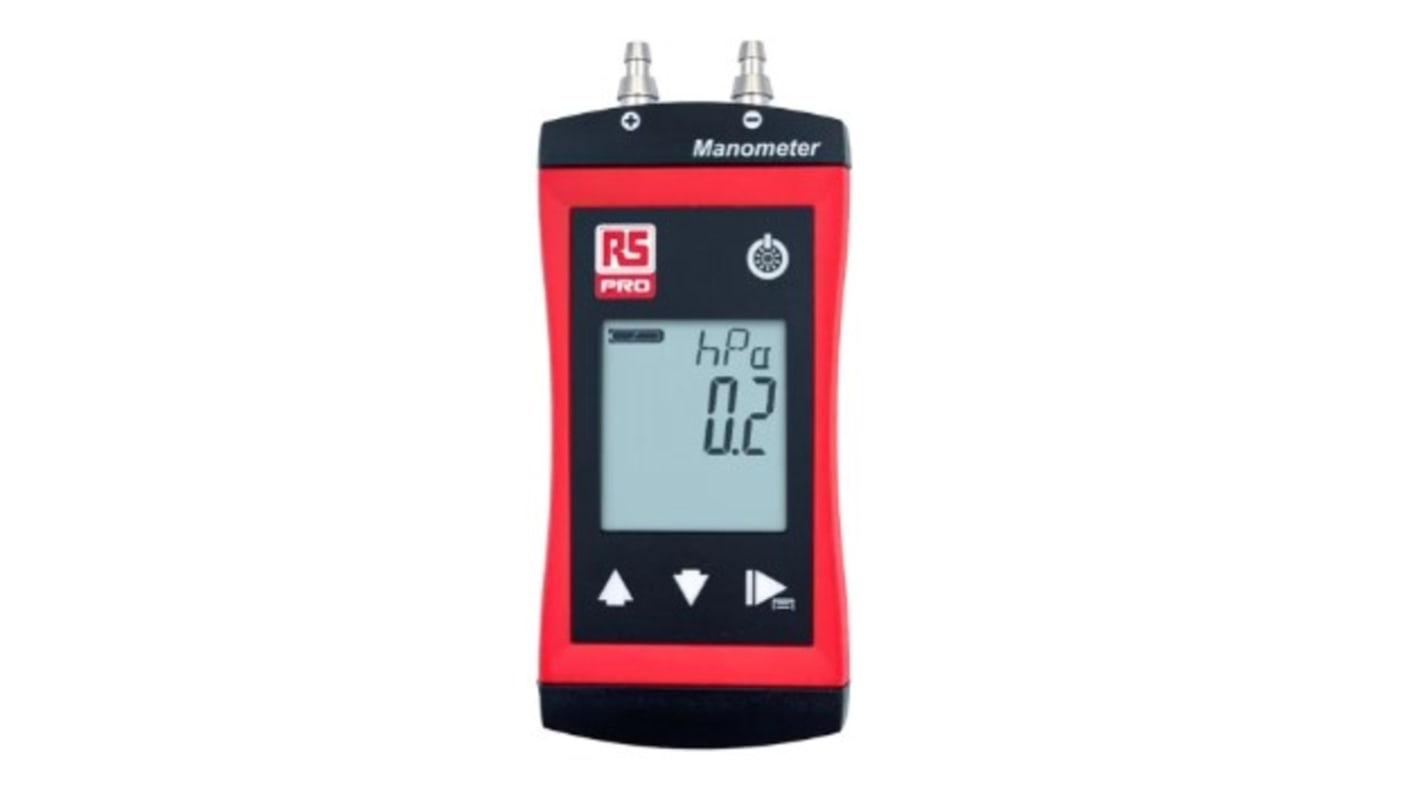

RS PRO Differential Pressure Manometer


Introducing the compact RS PRO Differential Pressure Manometer. This high-quality device from RS PRO measures airflow and pressure with high accuracy and is a compact and rugged HVAC test and measurement instrument that offers a wide variety of measurement unit options, meaning that this is a functional and versatile tool that can be used across a wide range of pressure measurement applications, whilst offering fast, reliable and accurate readings. This modern and super compact RS PRO manometer has been designed for single-handed operation and offers the most essential features that are necessary for routine maintenance and system troubleshooting applications.

Features and Benefits:


  • This RS PRO compact manometer features 5 selectable units of measurement including mbar, psi, hPa, bar and mmHg for flexibility and additional versatility across a wide range of applications

  • This device offers a simultaneous display of pressure, air velocity, airflow and temperature when required, without any delay and affecting the accuracy of the results at that point in time and improving testing efficiency

  • Thanks to the universal pressure connection, the unit is equipped with barbed ports for 6 mm and 8 mm hoses and can be adapted to many standard G1/8 in ports, based on the user’s needs

  • The manometer offers a large, high-resolution LCD screen for easy viewing of results and data measurement and long battery life, while the backlit screen allows it to be used in low light environments and ducting

  • Heavy duty and hard-wearing, this RS PRO manometer is waterproof and durable with an IP67 rating (not sensor housing)

  • The device is powered by 2 x AA batteries with a low battery indicator and selectable ’auto power-off’ function to preserve battery life when not in use

  • Supplied with: Batteries and Instruction Manual

    • Technical Features:


  • NULL/Tare, Fine and AVG Functions

  • ±2 hPa accuracy

  • ±200 mbar range

  • <1 second response time (typical)

    • Applications:


    A manometer is a device that is used to measure pressure and the flow rate in the air, in gases or in liquids, depending on the application. These devices are generally compact and portable so that they can be taken to where the readings need to be measured and recorded. Manometers are versatile instruments that can be used across a wide range of industries and applications like:

  • HVAC systems maintenance

  • Meteorological and weather conditions monitoring

  • Gas pressure monitoring in piping systems

  • Fluid flow measurements

  • Physiological measurements such as blood pressure

  • Monitoring compressor systems operations

    • What is the difference between a manometer and a barometer?


    Barometers or mercury manometers are devices that measure the atmospheric pressure around you. It is a very basic device that comes in a closed-end tube with a vacuum on the other end and measures as the pressure goes up or back down to the absolute pressure point. Manometers also measure atmospheric pressure this, however, in addition to this, manometers have additional features that can measure absolute pressure, differential pressure and gauge pressure and can be used in a wide range of servicing and maintenance applications to ensure that all parts that work using pressure are maintained and fully functional to ensure that downtime is limited.

    What are the measurement units that this manometer can read?


    This manometer measures in 5 different units: mbar, psi, hPa, Pa and mmHg

    Why RS PRO?


    RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.
