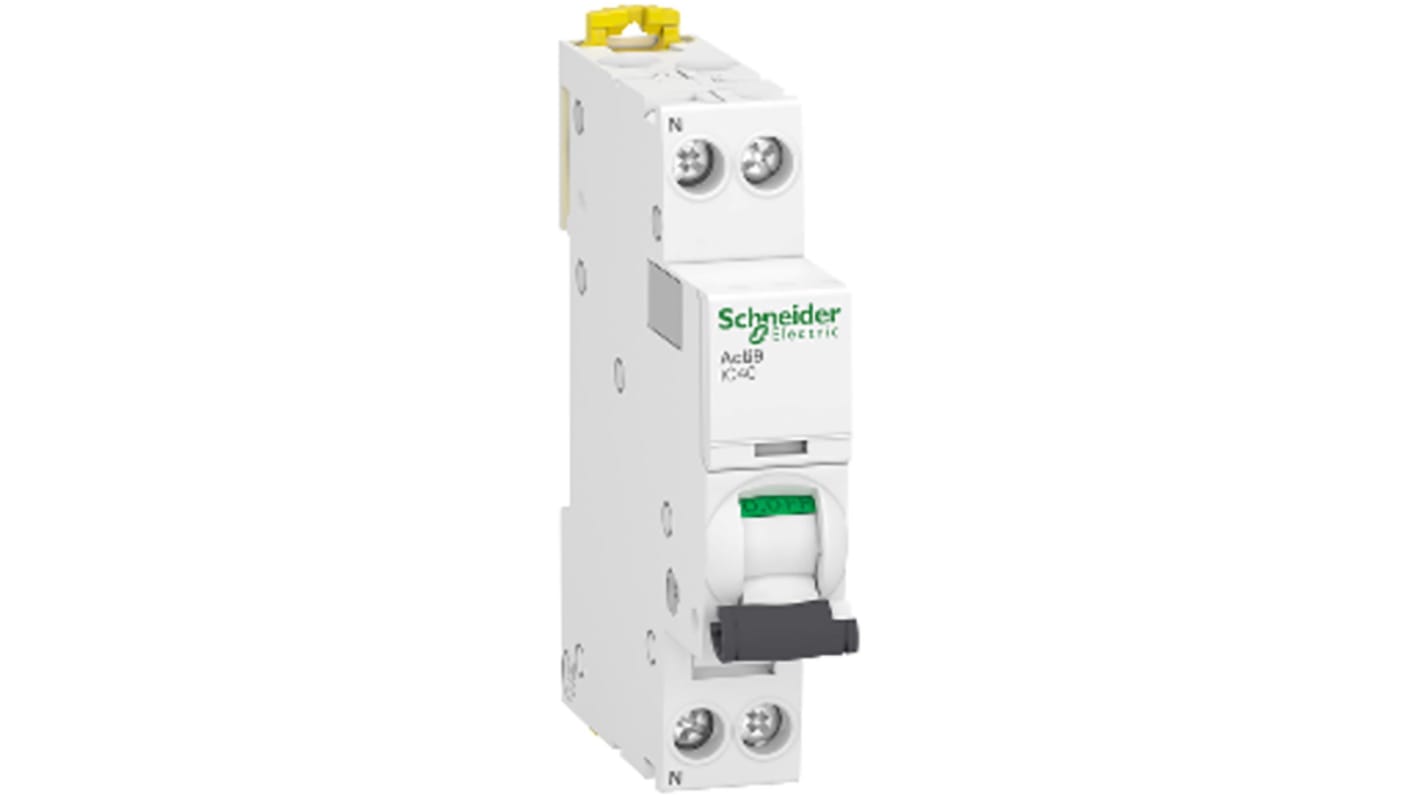

Schneider Electric Acti9 IDPN N Vigi Miniature Circuit Breaker, 1-Pole, 6 A, Type C, 230 V ac AC, 4.5 kA Breaking
- RS-stocknr.:
- 209-1332
- Fabrikantnummer:
- A9P52606
- Fabrikant:
- Schneider Electric
Momenteel niet beschikbaar
Sorry, we weten niet wanneer dit weer voorradig zal zijn.
- RS-stocknr.:
- 209-1332
- Fabrikantnummer:
- A9P52606
- Fabrikant:
- Schneider Electric
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Schneider Electric | |
| Product Type | Miniature Circuit Breaker | |
| Number of Poles | 1 | |
| Current Rating | 6 A | |
| Tripping Characteristics | Type C | |
| Rated AC Voltage | 230 V ac | |
| Mount Type | DIN Rail | |
| Breaking Capacity | 4.5kA | |
| Range | Acti9 | |
| Series | IDPN N Vigi | |
| Terminal Type | Tunnel | |
| IP Rating | IP20 | |
| Depth | 74mm | |
| Height | 85mm | |
| Width | 18 mm | |
| Standards/Approvals | RoHS, EN/CEI 61009-2-1, EN/CEI 60947-2, CE | |
| Break Time | Instantaneous | |
| Reset Actuator Type | Toggle Switch | |
| Tripping Mechanism | Thermal Magnetic | |
| Alles selecteren | ||
|---|---|---|
Merk Schneider Electric | ||
Product Type Miniature Circuit Breaker | ||
Number of Poles 1 | ||
Current Rating 6 A | ||
Tripping Characteristics Type C | ||
Rated AC Voltage 230 V ac | ||
Mount Type DIN Rail | ||
Breaking Capacity 4.5kA | ||
Range Acti9 | ||
Series IDPN N Vigi | ||
Terminal Type Tunnel | ||
IP Rating IP20 | ||
Depth 74mm | ||
Height 85mm | ||
Width 18 mm | ||
Standards/Approvals RoHS, EN/CEI 61009-2-1, EN/CEI 60947-2, CE | ||
Break Time Instantaneous | ||
Reset Actuator Type Toggle Switch | ||
Tripping Mechanism Thermal Magnetic | ||
- Land van herkomst:
- FR
The Schneider Electric IC60a miniature circuit breaker is multi-standard circuit breaker which combine circuit protection against short-circuit current and circuit protection against overload current. It has 1P+N pole and has 6 A of current. Its width siz
Ambient air temperature for operation -25 to 70 °C
Degree of protection IP20
