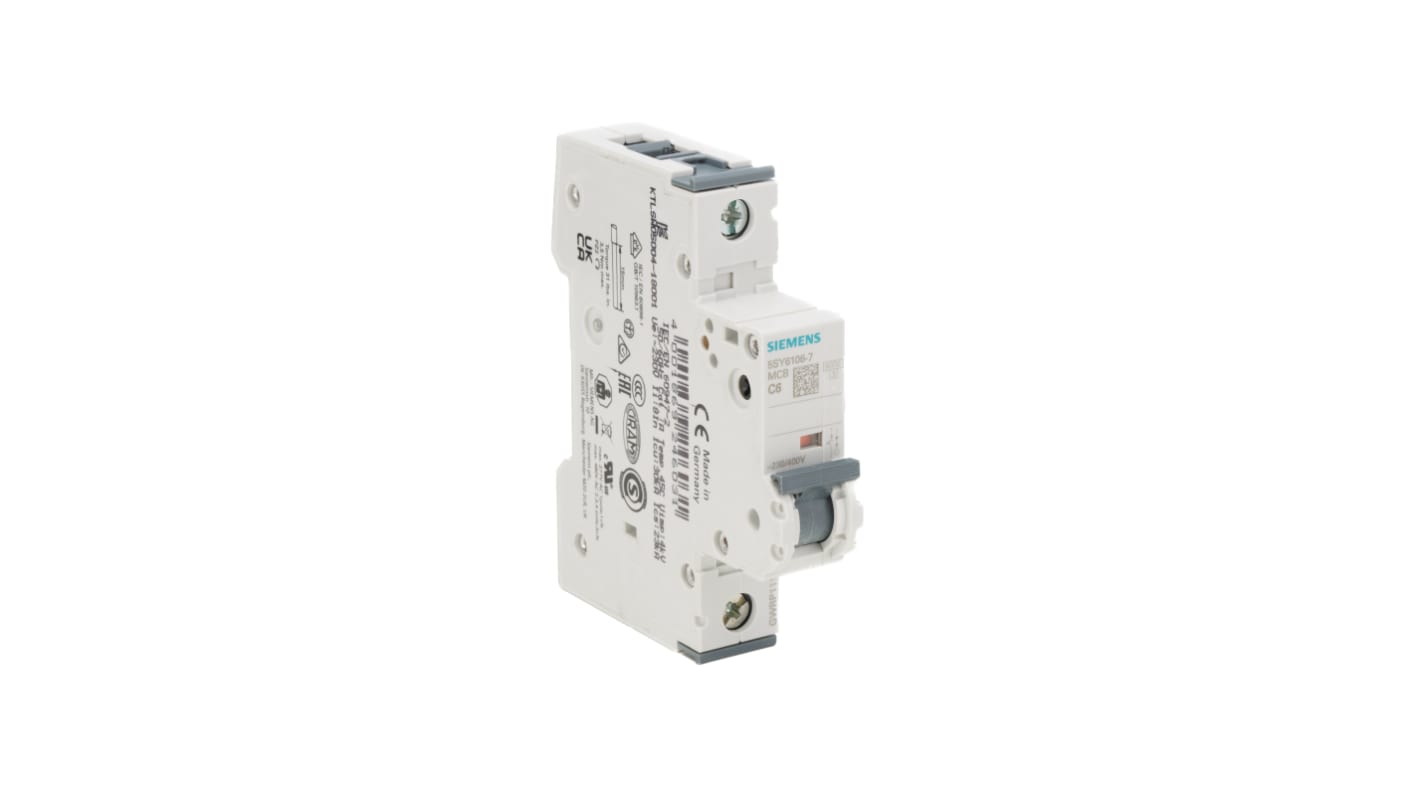

Siemens SENTRON 5SY6 Miniature Circuit Breaker, 1-Pole, 6A, Type C, 400V ac AC, 72 V dc DC, 6 kA Breaking Capacity
- RS-stocknr.:
- 489-6625
- Artikelnummer Distrelec:
- 304-01-320
- Fabrikantnummer:
- 5SY6106-7
- Fabrikant:
- Siemens
Subtotaal (1 eenheid)*
€ 19,68
(excl. BTW)
€ 23,81
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Op voorraad
- 18 stuk(s) klaar voor verzending
- 109 stuk(s) klaar voor verzending vanaf een andere locatie
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 19,68 |
*prijsindicatie
Better World
Ons Better World assortiment bevat producten die het u gemakkelijk maken om een groenere productkeuze te maken waarop u kunt vertrouwen. Klik hier voor meer informatie.
- RS-stocknr.:
- 489-6625
- Artikelnummer Distrelec:
- 304-01-320
- Fabrikantnummer:
- 5SY6106-7
- Fabrikant:
- Siemens
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Siemens | |
| Number of Poles | 1 | |
| Product Type | Miniature Circuit Breaker | |
| Current Rating | 6A | |
| Tripping Characteristics | Type C | |
| Rated AC Voltage | 400V ac | |
| Rated DC Voltage | 72V dc | |
| Mount Type | DIN Rail | |
| Breaking Capacity | 6kA | |
| Range | SENTRON | |
| Series | 5SY6 | |
| Terminal Type | Screw | |
| IP Rating | IP20 | |
| Depth | 76mm | |
| Height | 76mm | |
| Width | 17.5mm | |
| Standards/Approvals | CCC, CE, EAC | |
| Better World Claim | Extended Product Life | |
| Better World Product | Yes | |
| Alles selecteren | ||
|---|---|---|
Merk Siemens | ||
Number of Poles 1 | ||
Product Type Miniature Circuit Breaker | ||
Current Rating 6A | ||
Tripping Characteristics Type C | ||
Rated AC Voltage 400V ac | ||
Rated DC Voltage 72V dc | ||
Mount Type DIN Rail | ||
Breaking Capacity 6kA | ||
Range SENTRON | ||
Series 5SY6 | ||
Terminal Type Screw | ||
IP Rating IP20 | ||
Depth 76mm | ||
Height 76mm | ||
Width 17.5mm | ||
Standards/Approvals CCC, CE, EAC | ||
Better World Claim Extended Product Life | ||
Better World Product Yes | ||
- Land van herkomst:
- DE
Siemens Miniature Circuit Breaker, Type C, 6kA Breaking Capacity - SENTRON Series - 5SY6106-7
Protect your equipment from short circuits and overloads using this miniature circuit breaker from Siemens. In the event of an electrical malfunction, its internal bimetallic strip bends, cutting off power to the circuit. As it's a type C breaker, it trips at five to ten times its rated current to protect your equipment from powerful surges. A breaking capacity of 6kA means it can withstand heavy loads for enhanced durability. Thanks to its quick assembly design, installation is fast and simple without the need for specialised tools.
• Wide operating temperature range of -25°C to +55°C for use in demanding environments
• IP20 (ingress protection) rating means it's touch-proof and protected against objects larger than 12mm in size
• Light weight of 162g to reduce strain on your system
• Reset switch for ease of use
• Can be mounted in any position for flexible installation
How long will this miniature circuit breaker last?
This miniature circuit breaker has a long mechanical lifespan of 20,000 switching cycles, making it a long-lasting choice.
Standards
EN 60898, VDE 0641 part of 11, IEC 60898
