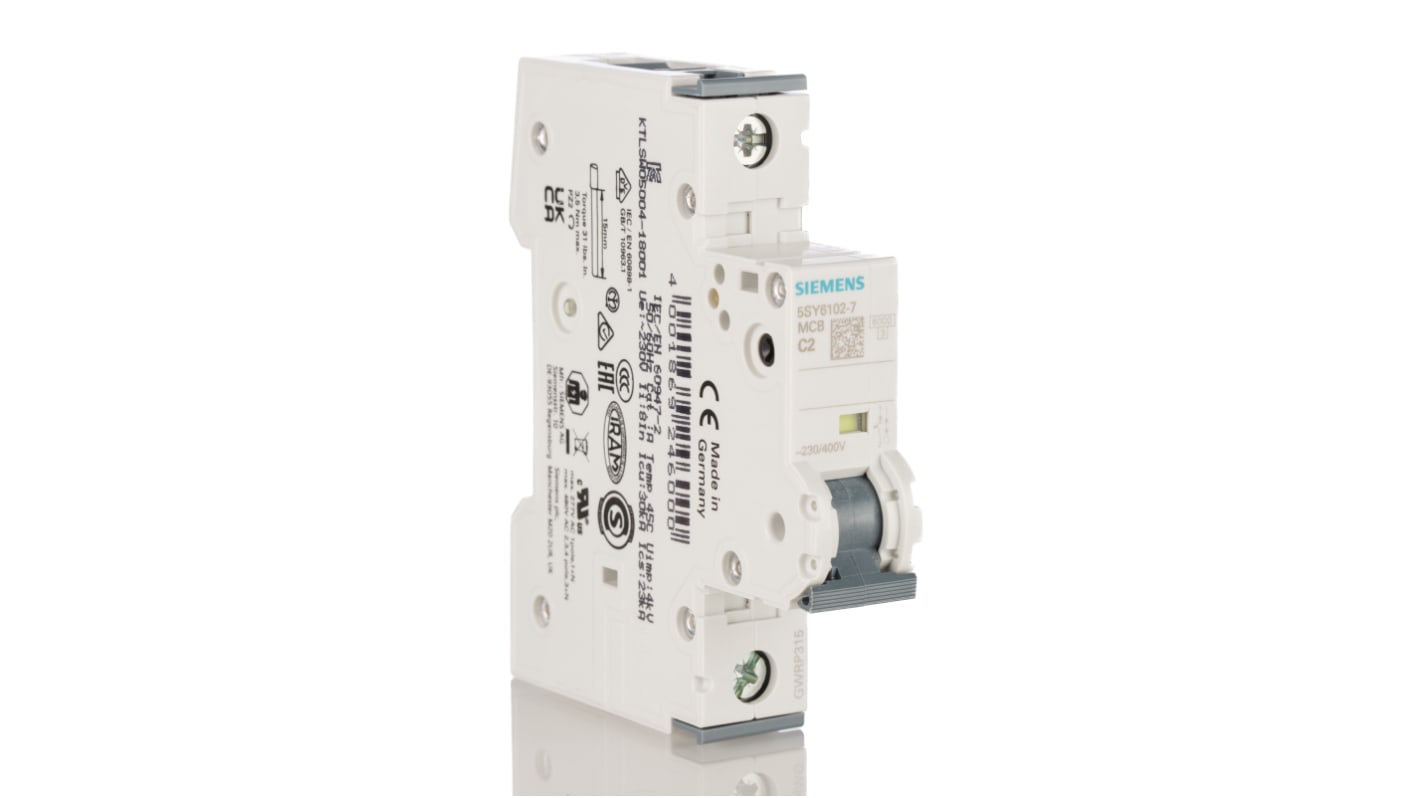

Siemens SENTRON 5SY6 Miniature Circuit Breaker, 1-Pole, 2A, Type C, 400V ac AC, 60 V dc DC, 6 kA Breaking Capacity
- RS-stocknr.:
- 521-4939
- Artikelnummer Distrelec:
- 304-01-318
- Fabrikantnummer:
- 5SY6102-7
- Fabrikant:
- Siemens
Subtotaal (1 eenheid)*
€ 21,42
(excl. BTW)
€ 25,92
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Op voorraad
- 176 stuk(s) klaar voor verzending
- 45 stuk(s) klaar voor verzending vanaf een andere locatie
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 21,42 |
*prijsindicatie
- RS-stocknr.:
- 521-4939
- Artikelnummer Distrelec:
- 304-01-318
- Fabrikantnummer:
- 5SY6102-7
- Fabrikant:
- Siemens
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Siemens | |
| Number of Poles | 1 | |
| Product Type | Miniature Circuit Breaker | |
| Current Rating | 2A | |
| Tripping Characteristics | Type C | |
| Rated AC Voltage | 400V ac | |
| Rated DC Voltage | 60V dc | |
| Mount Type | DIN Rail | |
| Breaking Capacity | 6kA | |
| Range | SENTRON | |
| Series | 5SY6 | |
| IP Rating | IP20 | |
| Standards/Approvals | IEC/EN 60898-1, IEC/EN 60947-2/UL1077 | |
| Depth | 76mm | |
| Width | 17.5mm | |
| Height | 90mm | |
| Alles selecteren | ||
|---|---|---|
Merk Siemens | ||
Number of Poles 1 | ||
Product Type Miniature Circuit Breaker | ||
Current Rating 2A | ||
Tripping Characteristics Type C | ||
Rated AC Voltage 400V ac | ||
Rated DC Voltage 60V dc | ||
Mount Type DIN Rail | ||
Breaking Capacity 6kA | ||
Range SENTRON | ||
Series 5SY6 | ||
IP Rating IP20 | ||
Standards/Approvals IEC/EN 60898-1, IEC/EN 60947-2/UL1077 | ||
Depth 76mm | ||
Width 17.5mm | ||
Height 90mm | ||
- Land van herkomst:
- DE
Siemens MCB, 2A Current Rating, Type C Tripping - 5SY6 Series - 5SY6102-7
Use this miniature circuit breaker from Siemens for reliable protection from overloads and short circuits. It's designed for single-phase networks and cuts off power to the system when the current supply goes above safe levels, preventing damage to your circuit and equipment. The unit has type C tripping characteristics, which means it's triggered when the supply current is five to 10 times the full load current. This is useful for small items of equipment that are sensitive to slight current changes. With a 6kA breaking capacity, this breaker can handle high current surges without suffering damage. You'll find a device like this one commonly used in industrial lighting systems.
• DIN rail mounting is simple and doesn't need tools
• Low weight of 153g for easy handling and minimal system strain
• Compact dimensions of 17.5 (width) x 89.8 (length) x 76mm (depth) for tight packing in busy setups
Is this circuit breaker protected against touch?
This circuit breaker has an IP20 (ingress protection) rating. This means it's protected against human touch and objects larger than 12mm in size.
Standards
EN 60898, VDE 0641 part of 11, IEC 60898
