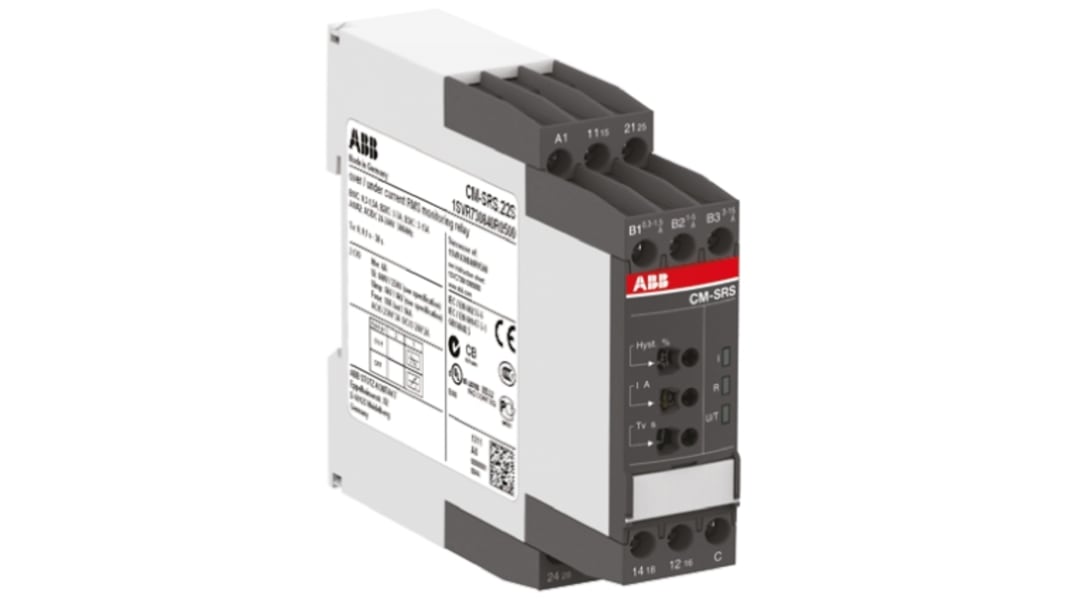

ABB Monitoring Relay, 1 Phase, DPDT, DIN Rail, 0.1mA to 100mA, 240 V dc, 240V ac

Afbeelding representeert productcategorie

Bekijk alle Monitoring Relays
Momenteel niet beschikbaar
We weten niet of dit item nog op voorraad komt, RS is van plan dit binnenkort uit ons assortiment te halen.
RS-stocknr.:
775-7996
Fabrikantnummer:
1SVR730841R0400 CM-SRS.21S
Fabrikant:
ABB
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren

Merk

ABB

Product Type

Monitoring Relay

Electrical Phase

1

Contact Configuration

DPDT

Mount Type

DIN Rail

Minimum Current Sensed

0.1mA

Power Consumption

0.75W

Switching Voltage

240V

Maximum Current Sensed

100mA

Current Sensitivity

Overcurrent, Undercurrent

Terminal Type

Screw

IP Rating

IP20

Supply DC Voltage

240 V dc

Supply AC Voltage

240V ac

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

60°C

Series

CM-SRS

Width

22.5mm

Standards/Approvals

RoHS

Length

103.7mm

Height

85.6mm

Land van herkomst:
DE

CM-SRS Current Monitoring, Single Phase AC/DC


Depending on the configuration, the current monitoring relays CM-SRS.1 and CM-SRS.2 can be used for over- or undercurrent monitoring in single-phase AC and/or DC systems. The current to be monitored (measured value) is applied to terminals B1/B2/B3-C. The devices work according the open-circuit principle.

If the measured value exceeds resp. drops below the adjusted threshold value, the output relay(s) energize(s): on the CM-SRS.1 immediately, on the CM-SRS.2 after the set tripping delay TV.

Monitoring of DC- and AC-currents: CM-SRS.x1: 3mA - 1A and CM-SRS.x2: 0.3-15A

RMS measuring principle

One device includes 3 measuring ranges

Over- or undercurrent monitoring configurable

Hysteresis adjustable from 3-30%

Tripping delay TV adjustable 0.1-30s

CM-SRS.1: 1 c/o contact

CM-SRS.2: 2 c/o contacts

22.5mm width

3 LED's for status indication
