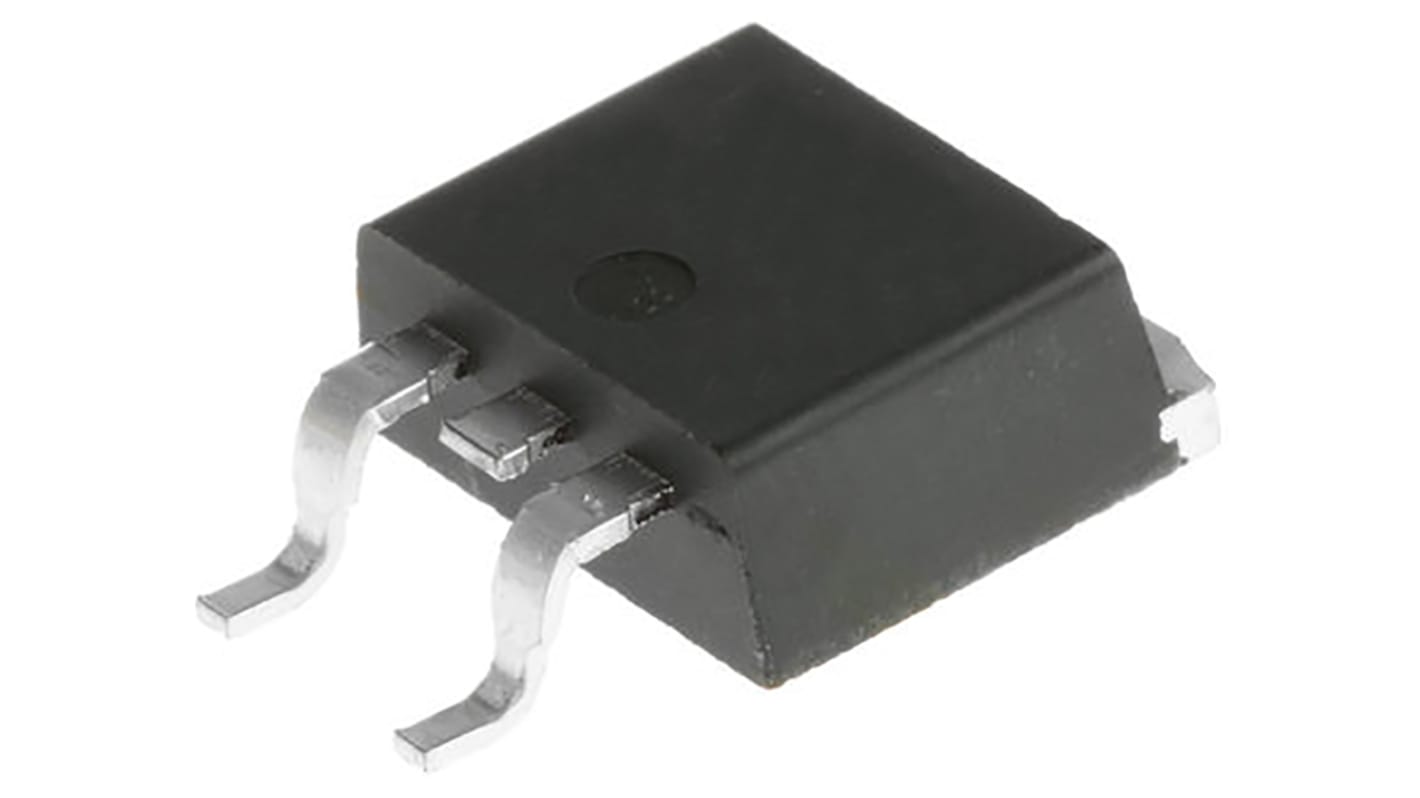

onsemi SuperFET Type N-Channel MOSFET, 20 A, 600 V Enhancement, 3-Pin TO-263 FCB20N60TM

Bekijk alle MOSFETs
Bulkkorting beschikbaar

Subtotaal (1 eenheid)*

€ 4,13

(excl. BTW)

€ 5,00

(incl. BTW)

Add to Basket
selecteer of typ hoeveelheid
Tekort aan aanbod
  • Plus verzending 726 stuk(s) vanaf 29 december 2025
Onze huidige voorraad is beperkt en onze leveranciers verwachten tekorten.
Aantal stuks
Per stuk
1 - 9€ 4,13
10 - 99€ 3,56
100 - 499€ 3,08
500 +€ 2,71

*prijsindicatie

Verpakkingsopties
RS-stocknr.:
671-0330
Fabrikantnummer:
FCB20N60TM
Fabrikant:
onsemi
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren

Merk

onsemi

Channel Type

Type N

Product Type

MOSFET

Maximum Continuous Drain Current Id

20A

Maximum Drain Source Voltage Vds

600V

Series

SuperFET

Package Type

TO-263

Mount Type

Surface

Pin Count

3

Maximum Drain Source Resistance Rds

190mΩ

Channel Mode

Enhancement

Maximum Gate Source Voltage Vgs

30 V

Typical Gate Charge Qg @ Vgs

75nC

Minimum Operating Temperature

-55°C

Maximum Power Dissipation Pd

208W

Forward Voltage Vf

1.4V

Maximum Operating Temperature

150°C

Width

9.65 mm

Standards/Approvals

No

Height

4.83mm

Length

9.65mm

Automotive Standard

No

SuperFET® and SuperFET® II N-Channel MOSFET, Fairchild Semiconductor


Fairchild added the SuperFET® II high-voltage power MOSFET family using the Super Junction Technology. It provides best-in-class robust body diode performance in AC-DC Switch Mode Power Supplies (SMPS) applications such as servers, telecom, computing, industrial power supply, UPS/ESS, solar inverter, lighting applications, which require high power density, system efficiency and reliability.

Utilizing an Advanced charge balance technology, designers achieve more efficient, cost-effective and high performance solutions that take up less board space and improve reliability.

MOSFET Transistors, ON Semi


ON Semi offers a substantial portfolio of MOSFET devices that includes high-voltage (>250V) and low-voltage (<250V) types. The Advanced silicon technology provides smaller die sizes, which it is incorporated into multiple industry-standard and thermally-enhanced packages.

ON Semi MOSFETs provide superior design reliability from reduced voltage spikes and overshoot, to lower junction capacitance and reverse recovery charge, to elimination of additional external components to keep systems up and running longer.
