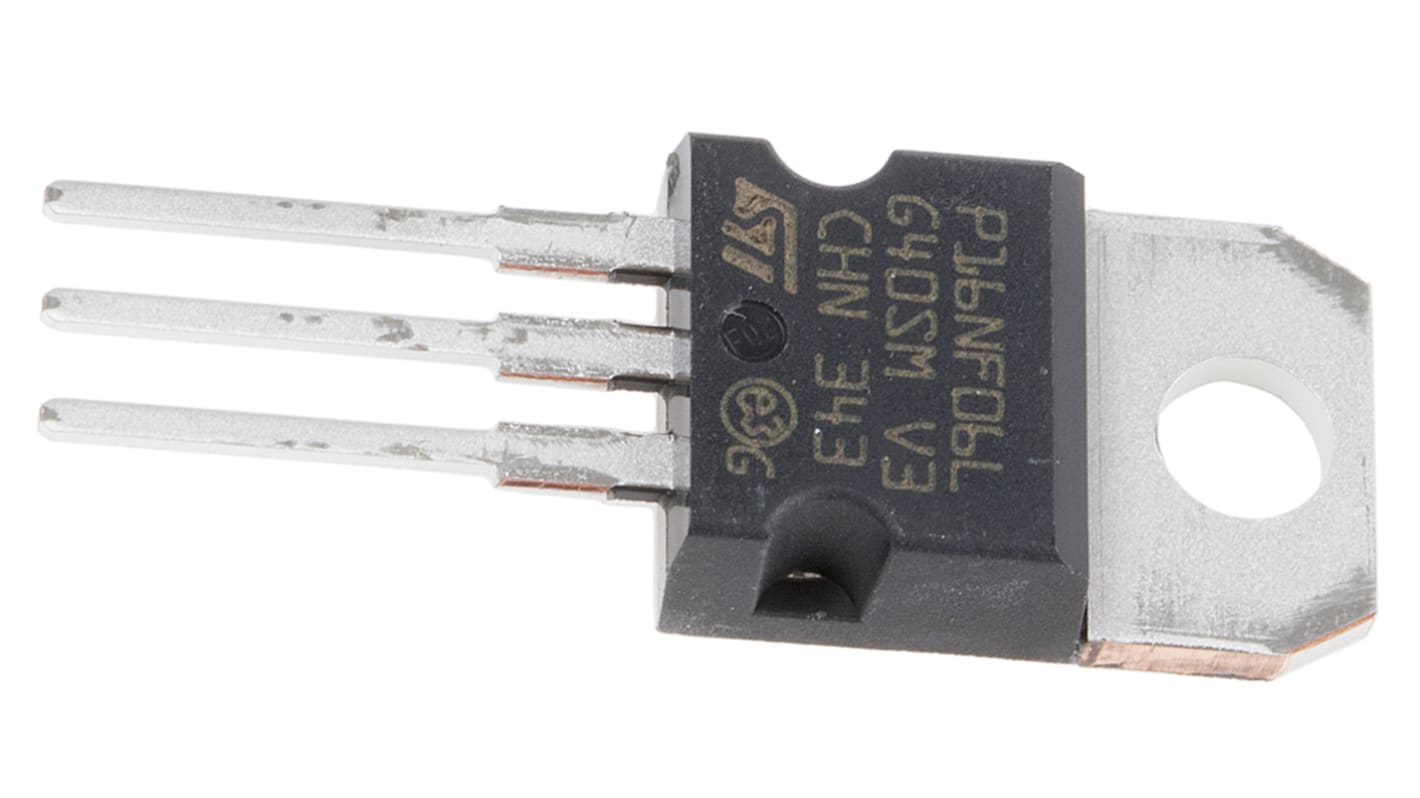

    N-Channel MOSFET, 16 A, 60 V, 3-Pin TO-220 STMicroelectronics STP16NF06L

    RS-stocknr.:
    687-5383
    Fabrikantnummer:
    STP16NF06L
    Fabrikant:
    STMicroelectronics
    STMicroelectronics
    Bekijk alle MOSFETs
    Tijdelijk niet op voorraad voor levertijd of een alternatief product neem contact op via Live Chat of zoek een vergelijkbaar product op de website.
    Add to Basket
    Aantal stuks

    Dit product is momenteel niet beschikbaar voor nabestelling.

    We hebben dit product helaas niet op voorraad en het is op dit moment niet beschikbaar voor nabestelling.

    Toegevoegd

    Prijs Each (In a Pack of 10)

    € 1,18

    (excl. BTW)

    € 1,43

    (incl. BTW)

    Aantal stuksPer stukPer pak*
    10 - 20€ 1,18€ 11,80
    30 - 90€ 1,121€ 11,21
    100 - 490€ 0,842€ 8,42
    500 - 990€ 0,713€ 7,13
    1000 +€ 0,573€ 5,73
    *prijsindicatie
    Verpakkingsopties
    RS-stocknr.:
    687-5383
    Fabrikantnummer:
    STP16NF06L
    Fabrikant:
    STMicroelectronics

    Wetgeving en compliance


    Productomschrijving

    N-Channel STripFET™, STMicroelectronics



    MOSFET Transistors, STMicroelectronics

    Specificaties

    KenmerkWaarde
    Channel TypeN
    Maximum Continuous Drain Current16 A
    Maximum Drain Source Voltage60 V
    Package TypeTO-220
    Mounting TypeThrough Hole
    Pin Count3
    Maximum Drain Source Resistance90 mΩ
    Channel ModeEnhancement
    Maximum Gate Threshold Voltage2.5V
    Minimum Gate Threshold Voltage1V
    Maximum Power Dissipation45 W
    Transistor ConfigurationSingle
    Maximum Gate Source Voltage-16 V, +16 V
    Transistor MaterialSi
    Width4.6mm
    Maximum Operating Temperature+175 °C
    Length10.4mm
    Number of Elements per Chip1
    Typical Gate Charge @ Vgs7.3 nC @ 5 V
    Height9.15mm
    SeriesSTripFET
    Minimum Operating Temperature-55 °C
