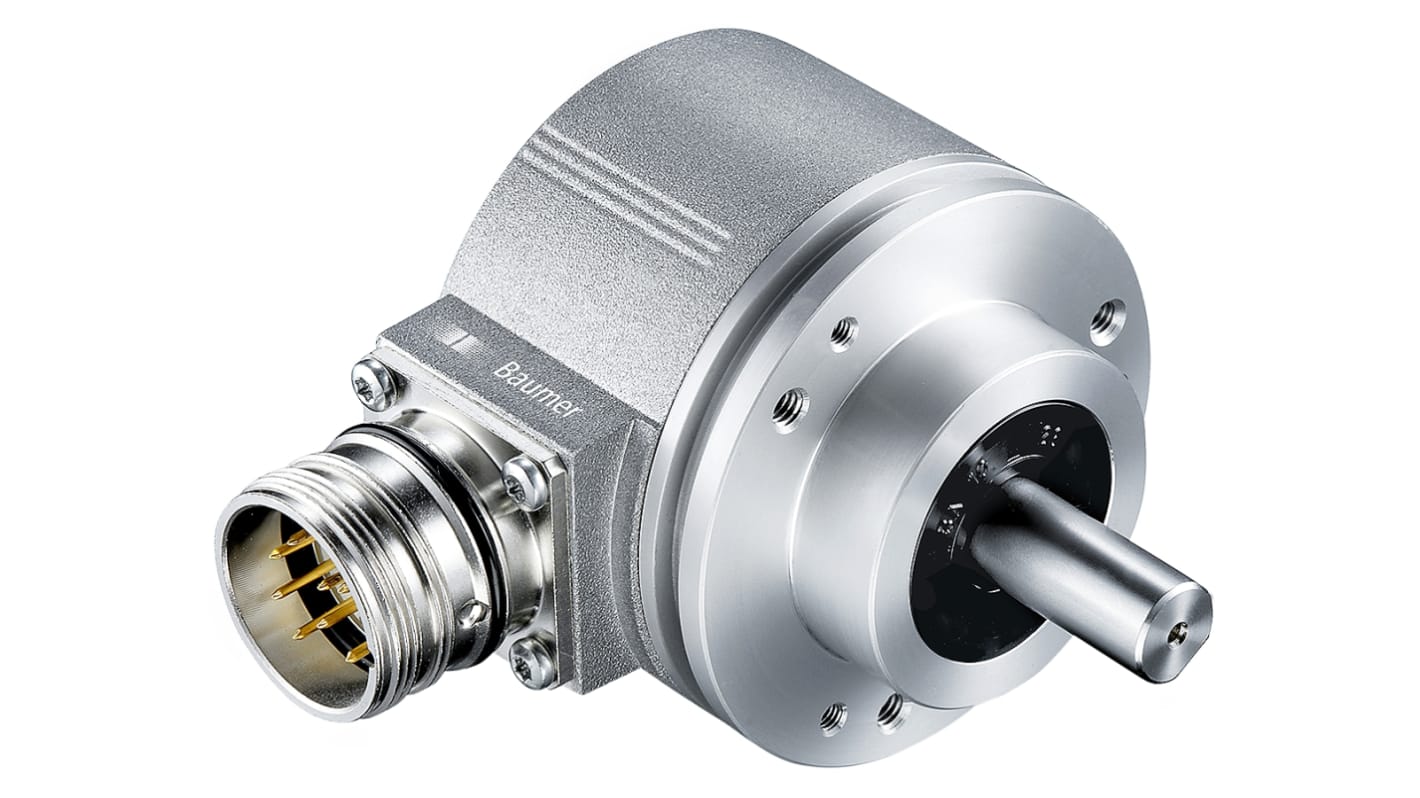

Baumer EIL580 Series Optical Incremental Encoder 30V, 2048 ppr ppr, Push Pull, HTL Signal, Solid Type, 10 mm Shaft
- RS-stocknr.:
- 820-3695
- Fabrikantnummer:
- EIL580-SC10.5FN.02048.A
- Fabrikant:
- Baumer
Subtotaal (1 eenheid)*
€ 203,55
(excl. BTW)
€ 246,30
(incl. BTW)
Informatie over voorraden is momenteel niet toegankelijk - Controleer het later nog eens opnieuw
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 203,55 |
*prijsindicatie
- RS-stocknr.:
- 820-3695
- Fabrikantnummer:
- EIL580-SC10.5FN.02048.A
- Fabrikant:
- Baumer
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Baumer | |
| Product Type | Incremental Encoder | |
| Encoder Technology | Optical | |
| Series | EIL580 | |
| Pulses Per Revolution | 2048ppr | |
| Maximum Revolutions | 12000rpm | |
| Output Signal Type | Push Pull, HTL | |
| Shaft Type | Solid | |
| Shaft Diameter | 10mm | |
| Interface Type | Push Pull | |
| Terminal Type | M23 Flange Connector | |
| IP Rating | IP65 | |
| Maximum Supply Voltage | 30V | |
| Minimum Operating Temperature | -40°C | |
| Overall Depth | 48mm | |
| Overall Height | 63mm | |
| Standards/Approvals | UL | |
| Overall Width | 58mm | |
| Mount Type | Clamp | |
| Maximum Operating Temperature | 85°C | |
| Switching Frequency | 300kHz | |
| Alles selecteren | ||
|---|---|---|
Merk Baumer | ||
Product Type Incremental Encoder | ||
Encoder Technology Optical | ||
Series EIL580 | ||
Pulses Per Revolution 2048ppr | ||
Maximum Revolutions 12000rpm | ||
Output Signal Type Push Pull, HTL | ||
Shaft Type Solid | ||
Shaft Diameter 10mm | ||
Interface Type Push Pull | ||
Terminal Type M23 Flange Connector | ||
IP Rating IP65 | ||
Maximum Supply Voltage 30V | ||
Minimum Operating Temperature -40°C | ||
Overall Depth 48mm | ||
Overall Height 63mm | ||
Standards/Approvals UL | ||
Overall Width 58mm | ||
Mount Type Clamp | ||
Maximum Operating Temperature 85°C | ||
Switching Frequency 300kHz | ||
- Land van herkomst:
- DE
EIL580 - Solid shaft
EIL580 incremental encoders with solid shaft, with clamping or synchro flange.
Stainless steel solid shaft
Die-cast aluminium housing
Precise optical sensing
Axial, radial or tangential connection
High resistance to shock and vibrations
58 mm diameter
Baumer
Incremental rotary encoders.
