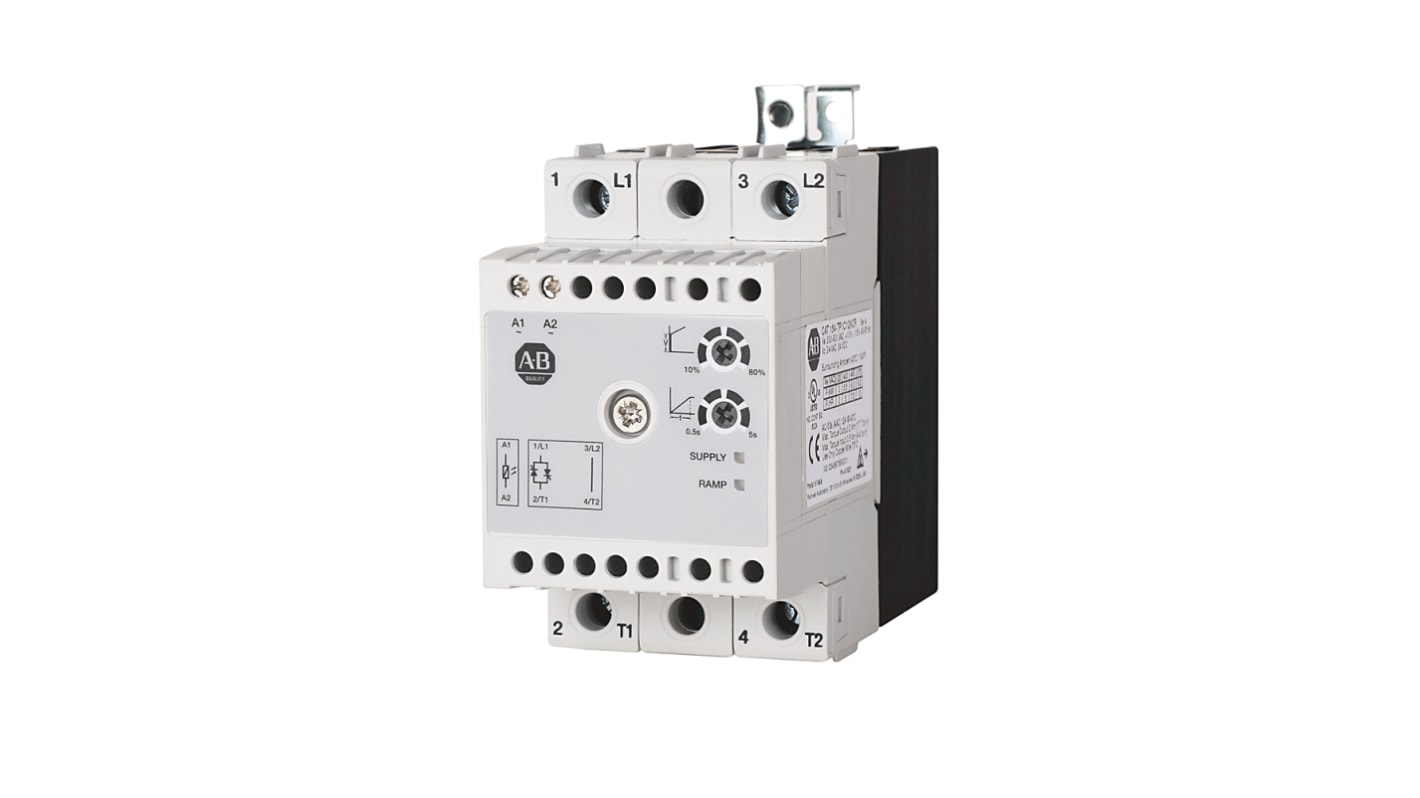

Allen Bradley 154-SP1C DOL Starter, Soft Start, 230V ac, 1.5 kW, 1 Phase, IP20
- RS-stocknr.:
- 220-0970
- Fabrikantnummer:
- 154-SP1C16NAR
- Fabrikant:
- Allen Bradley
Subtotaal (1 eenheid)*
€ 253,38
(excl. BTW)
€ 306,59
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Tijdelijk niet op voorraad
- Verzending vanaf 14 april 2027
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 253,38 |
*prijsindicatie
- RS-stocknr.:
- 220-0970
- Fabrikantnummer:
- 154-SP1C16NAR
- Fabrikant:
- Allen Bradley
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Allen Bradley | |
| Product Type | DOL Starter | |
| Power Rating | 1.5kW | |
| Sub Type | Soft Start | |
| Number of Phases | 1 | |
| Current Rating | 16A | |
| IP Rating | IP20 | |
| Mount Type | DIN Rail | |
| Number of Poles | 1 | |
| Overall Length | 110mm | |
| Maximum Voltage | 230V ac | |
| Hazardous Area Certification | No | |
| Overall Width | 54mm | |
| Standards/Approvals | UL 508, IEC/EN 61000-4-5, IEC/EN 61000-4-3, EC/EN 61000-4-2, IEC/EN 61000-4-4, IEC/EN 55011, IEC/EN 61000-4-6, EN/IEC 60947-4-2 | |
| Series | 154-SP1C | |
| Overall Depth | 117.5mm | |
| Alles selecteren | ||
|---|---|---|
Merk Allen Bradley | ||
Product Type DOL Starter | ||
Power Rating 1.5kW | ||
Sub Type Soft Start | ||
Number of Phases 1 | ||
Current Rating 16A | ||
IP Rating IP20 | ||
Mount Type DIN Rail | ||
Number of Poles 1 | ||
Overall Length 110mm | ||
Maximum Voltage 230V ac | ||
Hazardous Area Certification No | ||
Overall Width 54mm | ||
Standards/Approvals UL 508, IEC/EN 61000-4-5, IEC/EN 61000-4-3, EC/EN 61000-4-2, IEC/EN 61000-4-4, IEC/EN 55011, IEC/EN 61000-4-6, EN/IEC 60947-4-2 | ||
Series 154-SP1C | ||
Overall Depth 117.5mm | ||
N.v.t.
The Rockwell Automation 154 starting torque controller is designed for low-horsepower single and three phase squirrel cage induction motors these are also designed to reduce system shock that is typically seen when directly starting on line voltage.
Short-circuit Protection
Reduced System Shock
