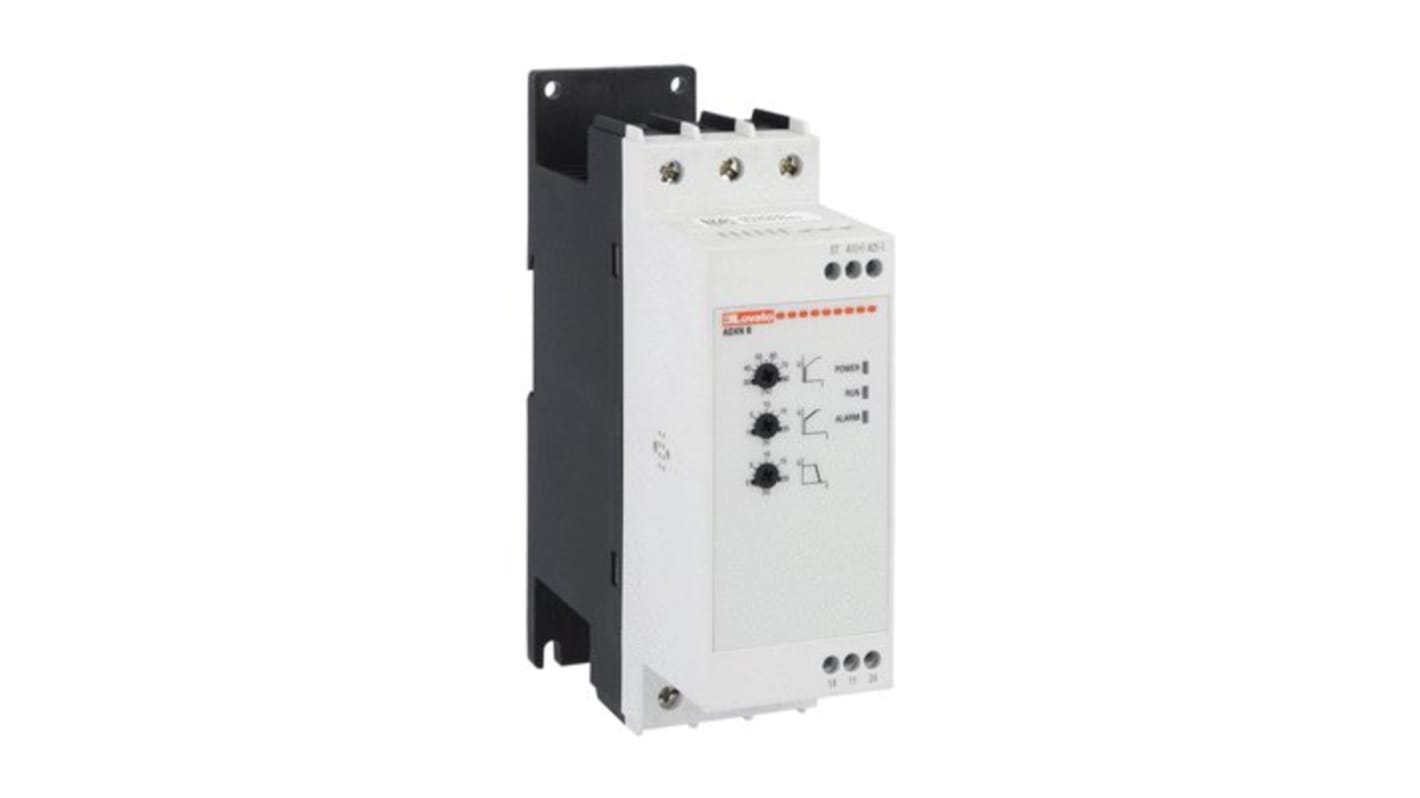

Lovato ADXN 24V ac/dc, 22 kW, 3 Phase Motor Starter, IP20

RS-stocknr.:: 276-5506
Fabrikantnummer:: ADXNB03824
Fabrikant:: Lovato

Lovato ADXN 24V ac/dc, 22 kW, 3 Phase Motor Starter, IP20

Subtotaal (1 eenheid)*

€ 642,51

(excl. BTW)

€ 777,44

(incl. BTW)

GRATIS bezorging voor bestellingen van meer dan € 90,00

Op voorraad

Plus verzending 4 stuk(s) vanaf 14 september 2026

Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.

Aantal stuks	Per stuk
1 +	€ 642,51

*prijsindicatie

RS-stocknr.:: 276-5506
Fabrikantnummer:: ADXNB03824
Fabrikant:: Lovato

Specificaties

Datasheets

Wetgeving en compliance

Productomschrijving

Zoek vergelijkbare producten door een of meer kenmerken te selecteren.

Alles selecteren	Attribuut	Waarde
	Merk	Lovato
	Product Type	Motor Starter
	Power Rating	22kW
	Number of Phases	3
	Mount Type	DIN Rail
	IP Rating	IP20
	Maximum Supply Voltage	24V ac/dc
	Overall Length	159mm
	Maximum Operating Temperature	55°C
	Overall Width	45mm
	Standards/Approvals	cULus
	Overall Depth	128.4mm
	Series	ADXN

	Alles selecteren
	Merk Lovato
	Product Type Motor Starter
	Power Rating 22kW
	Number of Phases 3
	Mount Type DIN Rail
	IP Rating IP20
	Maximum Supply Voltage 24V ac/dc
	Overall Length 159mm
	Maximum Operating Temperature 55°C
	Overall Width 45mm
	Standards/Approvals cULus
	Overall Depth 128.4mm
	Series ADXN

Land van herkomst:: IT

Lovato ADXN Series Motor Starter, 22kW Power Rating, 38A Current Rating - ADXNB03824

This motor starter is a soft start device designed for efficient motor operation and control. With a power rating of 22 kW and rated operational voltage from 208 to 600 VAC, it is engineered for versatility in various automation settings. The unit is compact, measuring 159mm in length, 45mm in width, and 128.4mm in depth, facilitating easy installation on DIN rail systems.

Features & Benefits

• Soft start technology reduces motor stress during start-up

• Compact design optimises space on electrical panels

• Integrated by-pass relay enhances operational efficiency

• Built-in fan ensures effective cooling during operation

• cULus certified for safety and compliance standards

• Rated for a maximum current of 38 A to support high loads

Applications

• Used with 3-phase motors in industrial

• Suitable for automated systems requiring controlled motor starts

• Employed in manufacturing equipment where energy efficiency is critical

• Ideal for HVAC systems that benefit from soft starting

What are the environmental considerations for this unit?

With an IP20 rating, it is designed for indoor use, providing protection against solid objects greater than 12mm but not against liquids, making it suitable for controlled environments.

Can this starter handle different motor specifications?

Yes, it supports various rated motor powers, including 11 kW for 230 VAC and 22 kW for 500 VAC, allowing it to be adaptable for different applications and requirements.

How does the integrated by-pass relay improve function?

The by-pass relay reduces energy consumption and improves efficiency by allowing the motor to run directly after the soft start phase, ensuring seamless operation during continuous use.
