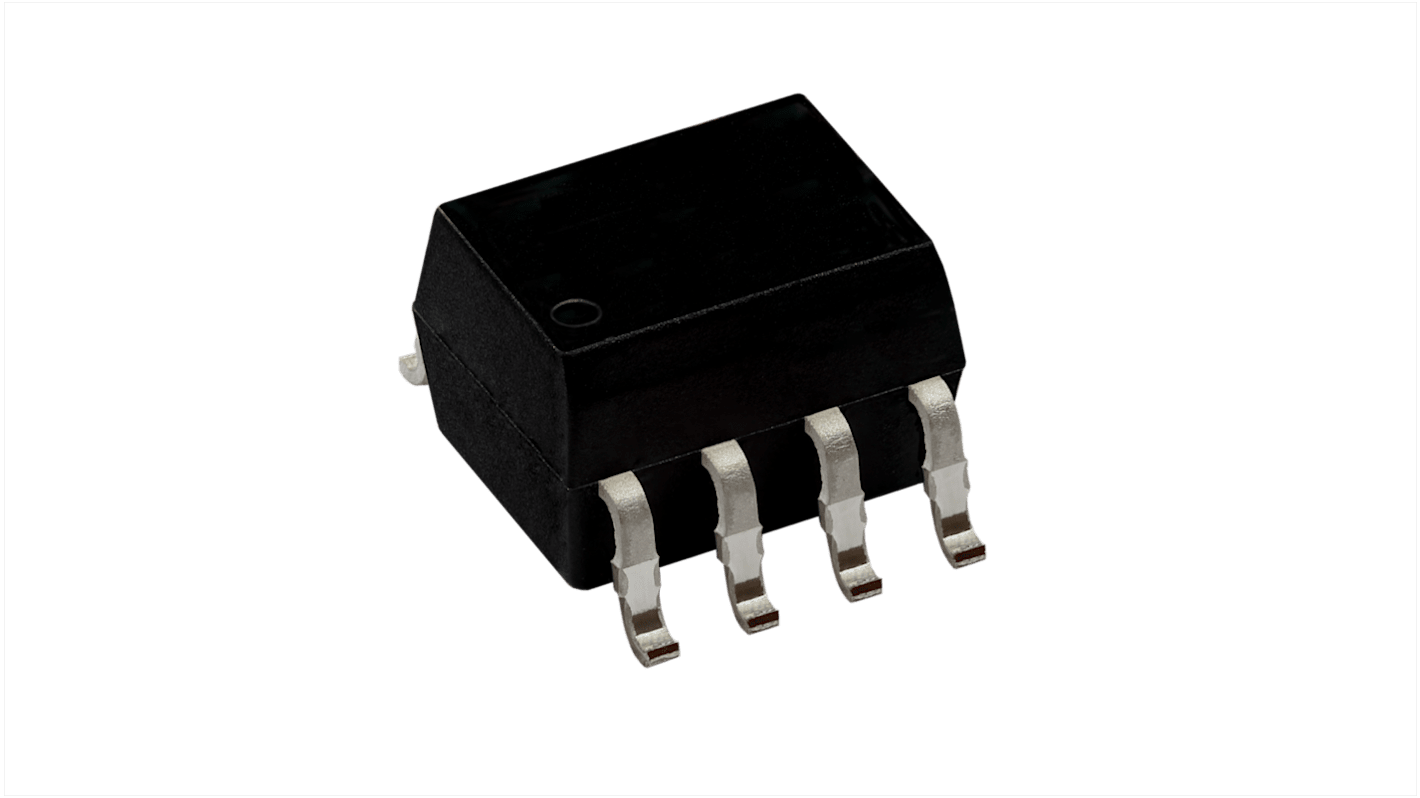

Vishay VOIH060AT DC Input Optocoupler, Surface, 8-Pin SOIC-8
- RS-stocknr.:
- 214-799
- Fabrikantnummer:
- VOIH060AT
- Fabrikant:
- Vishay
Subtotaal (1 rol van 2000 eenheden)*
€ 1.818,00
(excl. BTW)
€ 2.200,00
(incl. BTW)
Informatie over voorraden is momenteel niet toegankelijk - Controleer het later nog eens opnieuw
Aantal stuks | Per stuk | Per rol* |
|---|---|---|
| 2000 + | € 0,909 | € 1.818,00 |
*prijsindicatie
- RS-stocknr.:
- 214-799
- Fabrikantnummer:
- VOIH060AT
- Fabrikant:
- Vishay
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Vishay | |
| Mount Type | Surface | |
| Product Type | Optocoupler | |
| Maximum Forward Voltage | 1.7V | |
| Number of Channels | 1 | |
| Number of Pins | 8 | |
| Package Type | SOIC-8 | |
| Input Current Type | DC | |
| Typical Rise Time | 11ns | |
| Maximum Input Current | 20mA | |
| Isolation Voltage | 3750Vrms | |
| Minimum Operating Temperature | 40°C | |
| Maximum Operating Temperature | 110°C | |
| Standards/Approvals | RoHS | |
| Typical Fall Time | 2.3ns | |
| Series | VOIH | |
| Automotive Standard | No | |
| Alles selecteren | ||
|---|---|---|
Merk Vishay | ||
Mount Type Surface | ||
Product Type Optocoupler | ||
Maximum Forward Voltage 1.7V | ||
Number of Channels 1 | ||
Number of Pins 8 | ||
Package Type SOIC-8 | ||
Input Current Type DC | ||
Typical Rise Time 11ns | ||
Maximum Input Current 20mA | ||
Isolation Voltage 3750Vrms | ||
Minimum Operating Temperature 40°C | ||
Maximum Operating Temperature 110°C | ||
Standards/Approvals RoHS | ||
Typical Fall Time 2.3ns | ||
Series VOIH | ||
Automotive Standard No | ||
- Land van herkomst:
- CN
The Vishay Optocoupler uses high efficiency input LEDs coupled with high speed integrated photo detector logic Gates to provide reliable signal isolation. The detector features open drain outputs for flexible interfacing with external circuits. An internal shield ensures robust performance, offering a guaranteed common mode transient immunity of 15 kV/μs, making it Ideal for environments with high electrical noise or transient disturbances.
3.3 V / 5 V dual supply voltage
LVTTL/LVCMOS compatibility
Low power consumption
