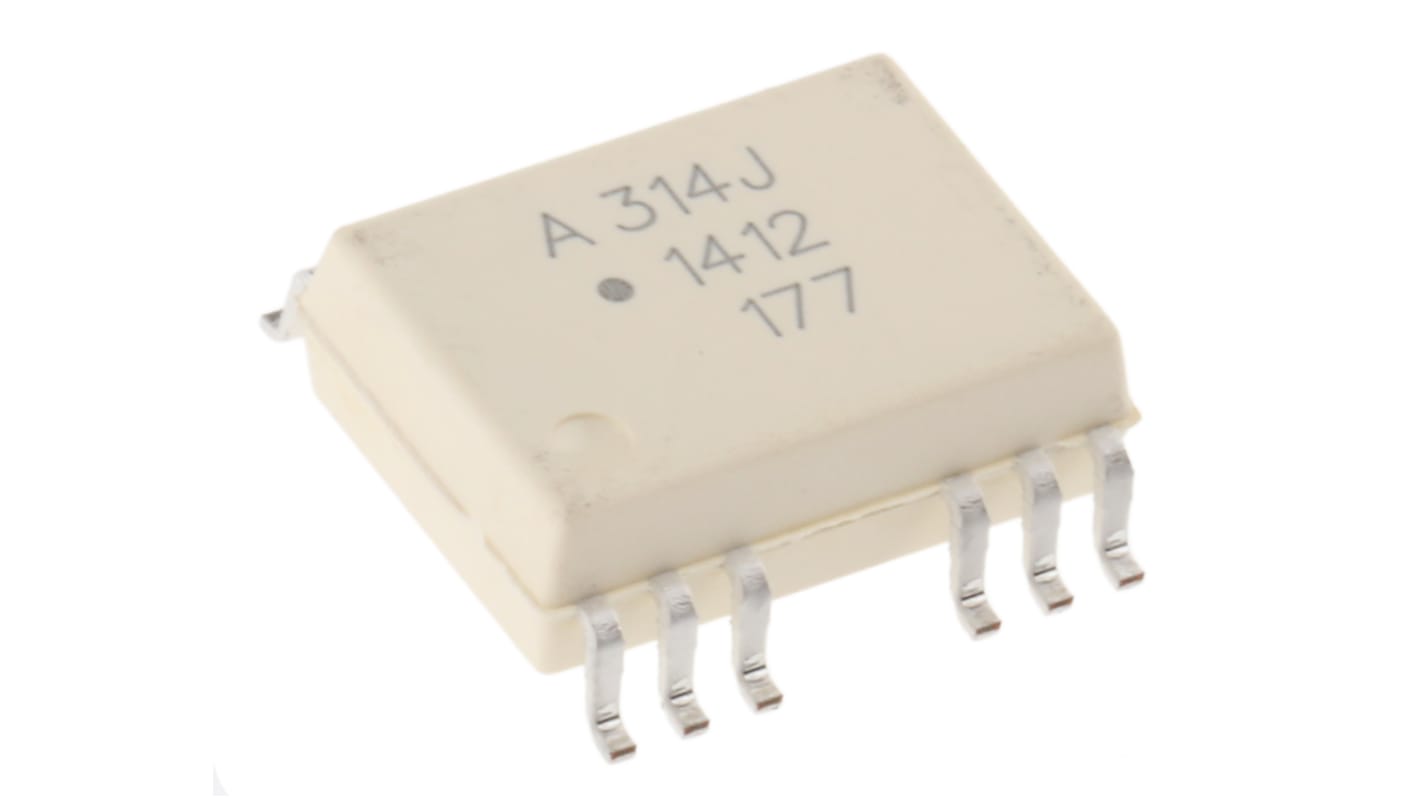

Broadcom, HCPL-314J-000E DC Input Transistor Output Dual Optocoupler, Surface Mount, 16-Pin SO
- RS-stocknr.:
- 922-5734
- Fabrikantnummer:
- HCPL-314J-000E
- Fabrikant:
- Broadcom
Prijs Elk (in eentube van 45)
€ 3,167
(excl. BTW)
€ 3,832
(incl. BTW)
1093 op voorraad - levertijd is 4 werkdag(en).
Aantal stuks | Per stuk | Per tube* |
|---|---|---|
| 45 - 180 | € 3,167 | € 142,515 |
| 225 - 405 | € 2,641 | € 118,845 |
| 450 + | € 2,372 | € 106,74 |
*prijsindicatie
- RS-stocknr.:
- 922-5734
- Fabrikantnummer:
- HCPL-314J-000E
- Fabrikant:
- Broadcom
Datasheets
Wetgeving en compliance
Niet conform
Productomschrijving
Optocoupler, Transistor Output, Avago Technologies
The DC input single and multi-channel phototransistor optocouplers are used for power sequence controller and Input/Output interface applications.
Optocouplers, Avago Technologies
Specificaties
Kenmerk | Waarde |
|---|---|
| Mounting Type | Surface Mount |
| Output Device | Transistor |
| Maximum Forward Voltage | 1.8V |
| Number of Channels | 2 |
| Number of Pins | 16 |
| Package Type | SO |
| Input Current Type | DC |
| Typical Rise Time | 0.1µs |
| Maximum Input Current | 16 mA |
| Isolation Voltage | 3750 V ac |
| Logic Output | Yes |
| Typical Fall Time | 0.1µs |
| Series | HCPL |
