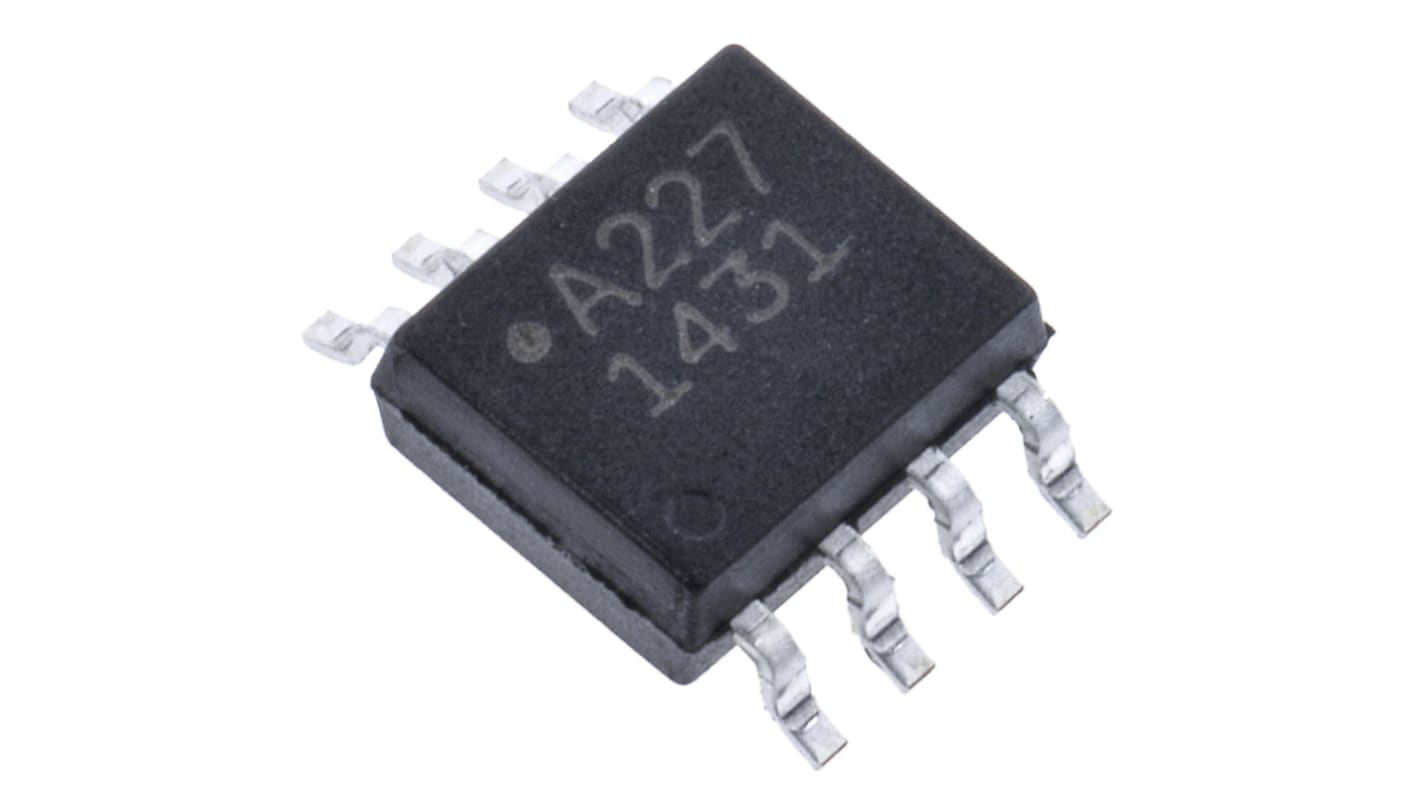

Broadcom, ACPL-227-500E DC Input Transistor Output Dual Optocoupler, Surface Mount, 8-Pin SOIC
- RS-stocknr.:
- 922-6683
- Fabrikantnummer:
- ACPL-227-500E
- Fabrikant:
- Broadcom
Bekijk alle Optocouplers
14000 op voorraad - levertijd is 1 werkdag(en).
Prijs Each (On a Reel of 2000)
€ 0,374
(excl. BTW)
€ 0,453
(incl. BTW)
| Aantal stuks | Per stuk | Per reel* |
| 2000 + | € 0,374 | € 748,00 |
| *prijsindicatie | ||
- RS-stocknr.:
- 922-6683
- Fabrikantnummer:
- ACPL-227-500E
- Fabrikant:
- Broadcom
Datasheets
Wetgeving en compliance
- Land van herkomst:
- CN
Productomschrijving
Optocoupler, Transistor Output, Avago Technologies
The DC input single and multi-channel phototransistor optocouplers are used for power sequence controller and Input/Output interface applications.
Optocouplers, Avago Technologies
Specificaties
Kenmerk | Waarde |
|---|---|
| Mounting Type | Surface Mount |
| Output Device | Transistor |
| Maximum Forward Voltage | 1.4V |
| Number of Channels | 2 |
| Number of Pins | 8 |
| Package Type | SOIC |
| Input Current Type | DC |
| Typical Rise Time | 2µs |
| Maximum Input Current | 50 mA |
| Isolation Voltage | 3000 V ac |
| Maximum Current Transfer Ratio | 600% |
| Typical Fall Time | 3µs |
| Minimum Current Transfer Ratio | 50 % |
