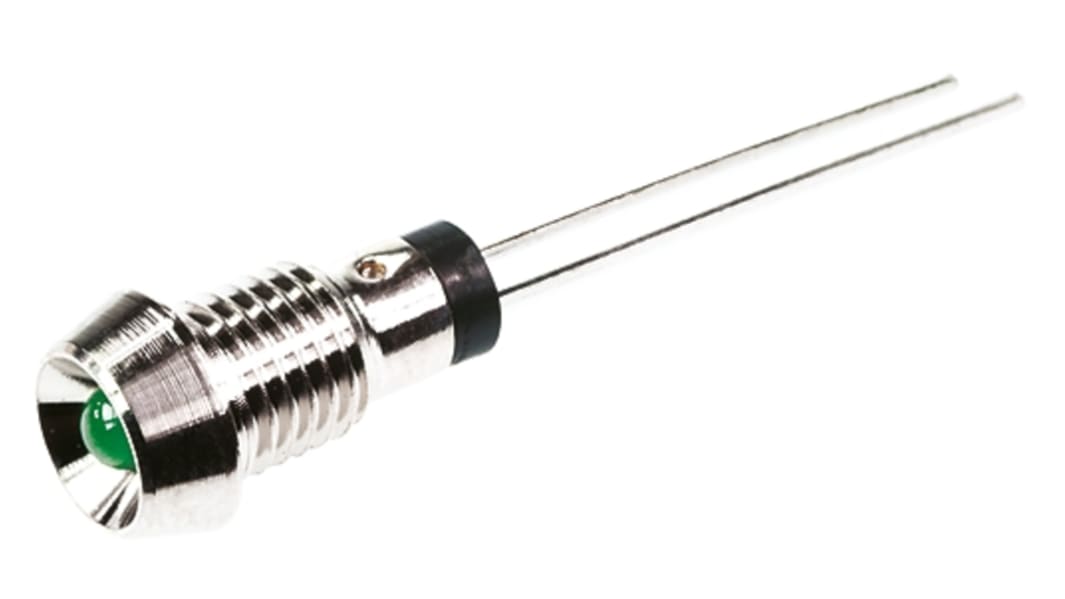

Marl LED, Green Panel Mount Indicator 572 Series, 6 mm, Lead Pin Termination 2.8V
- RS-stocknr.:
- 789-4483
- Artikelnummer Distrelec:
- 300-28-652
- Fabrikantnummer:
- 572-314-04
- Fabrikant:
- Marl
Ontvang bulkkorting
Voeg 5 meer toe om € 0,25 te besparen
Bekijk bulkkortingSubtotaal (1 eenheid)*
€ 1,79
(excl. BTW)
€ 2,17
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Op voorraad
- 2 stuk(s) klaar voor verzending
- 108 stuk(s) klaar voor verzending vanaf een andere locatie
- Plus verzending 77 stuk(s) vanaf 12 november 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk | Bespaar |
|---|---|---|
| 1 - 4 | € 1,79 | - |
| 5 - 14 | € 1,74 | € 0,25 |
| 15 - 24 | € 1,70 | € 1,35 |
| 25 - 49 | € 1,66 | € 3,25 |
| 50 + | € 1,61 | € 9,00 |
*prijsindicatie
- RS-stocknr.:
- 789-4483
- Artikelnummer Distrelec:
- 300-28-652
- Fabrikantnummer:
- 572-314-04
- Fabrikant:
- Marl
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Marl | |
| Product Type | Panel Mount Indicator | |
| Lens Colour | Green | |
| Maximum Forward Current | 30mA | |
| Sub Type | LED | |
| Terminal Type | Lead Pin | |
| LED Colour | Green | |
| Mount Hole Size | 6 mm | |
| Minimum Supply Voltage | 2.1V | |
| Viewing Angle | 35 ° | |
| Maximum Supply Voltage | 2.8V | |
| Input Voltage Type | DC | |
| Multicolour/Single Colour | Single Colour | |
| Luminous Intensity | 25mcd | |
| Standards/Approvals | CE, UKCA, RoHS | |
| Length | 14.1mm | |
| Series | 572 | |
| Lens Finish | Diffused | |
| Alles selecteren | ||
|---|---|---|
Merk Marl | ||
Product Type Panel Mount Indicator | ||
Lens Colour Green | ||
Maximum Forward Current 30mA | ||
Sub Type LED | ||
Terminal Type Lead Pin | ||
LED Colour Green | ||
Mount Hole Size 6 mm | ||
Minimum Supply Voltage 2.1V | ||
Viewing Angle 35 ° | ||
Maximum Supply Voltage 2.8V | ||
Input Voltage Type DC | ||
Multicolour/Single Colour Single Colour | ||
Luminous Intensity 25mcd | ||
Standards/Approvals CE, UKCA, RoHS | ||
Length 14.1mm | ||
Series 572 | ||
Lens Finish Diffused | ||
- Land van herkomst:
- CN
Marl 6mm Nickel Plated Brass LED Panel Indicators - 570/572 Series
Marl indicators are available in a range of LED colours and offer a diffused colour 3mm LED. Marl indicators use standard intensity LED's recessed into a Nickel plated housing which requires a 6mm cut out. Ideal for panel indication applications.
10mm - 15.8mm Mounting
All products have a reverse voltage of 5V.
Note
These LED indicators should not be operated without a suitable series resistor or other current-limiting device.
