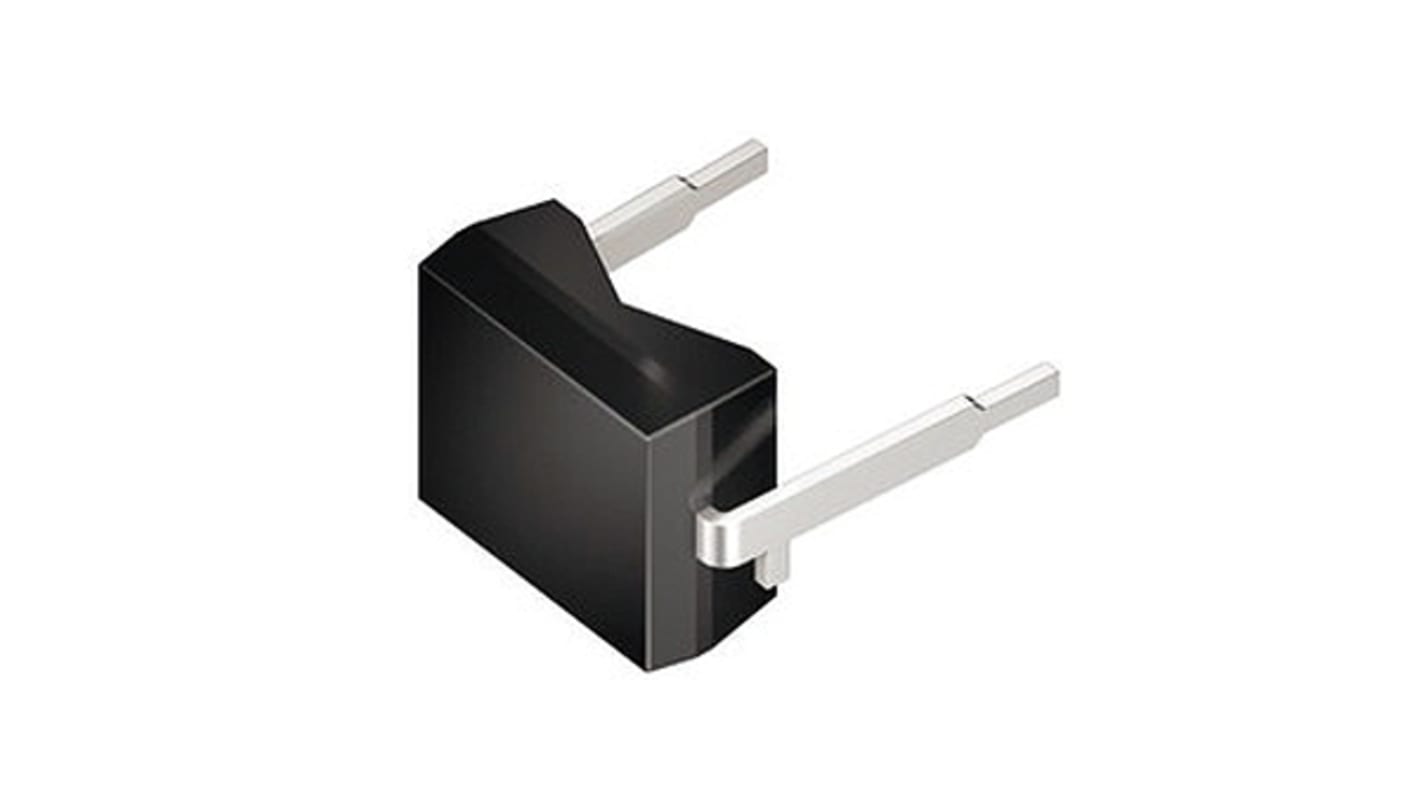

Vishay BP104 Infrared Photodiode, ± 65 °, Through Hole Top View
- RS-stocknr.:
- 699-7597
- Artikelnummer Distrelec:
- 304-36-037
- Fabrikantnummer:
- BP104
- Fabrikant:
- Vishay
Bulkkorting beschikbaar
Bekijk bulkkortingSubtotaal (1 verpakking van 5 eenheden)*
€ 5,81
(excl. BTW)
€ 7,03
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Laatste voorraad RS
- 65 stuk(s) klaar voor verzending vanaf een andere locatie
- Laatste verzending 685 stuk(s) vanaf 29 september 2026
Aantal stuks | Per stuk | Per verpakking* |
|---|---|---|
| 5 - 45 | € 1,162 | € 5,81 |
| 50 - 120 | € 0,754 | € 3,77 |
| 125 - 245 | € 0,722 | € 3,61 |
| 250 - 495 | € 0,674 | € 3,37 |
| 500 + | € 0,638 | € 3,19 |
*prijsindicatie
- RS-stocknr.:
- 699-7597
- Artikelnummer Distrelec:
- 304-36-037
- Fabrikantnummer:
- BP104
- Fabrikant:
- Vishay
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Vishay | |
| Product Type | Photodiode | |
| Spectrums Detected | Infrared | |
| Wavelength of Peak Sensitivity | 950nm | |
| Package Type | Top View | |
| Mount Type | Through Hole | |
| Number of Pins | 2 | |
| Minimum Wavelength Detected | 870nm | |
| Maximum Wavelength Detected | 1050nm | |
| Typical Fall Time | 100ns | |
| Amplified | No | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 100°C | |
| Width | 4.3mm | |
| Standards/Approvals | RoHS 2002/95/EC, WEEE 2002/96/EC | |
| Height | 3.2mm | |
| Length | 5.4mm | |
| Diameter | 5mm | |
| Angle of Half Sensitivity | ± 65 ° | |
| Breakdown Voltage | 60V | |
| Automotive Standard | No | |
| Open Circuit Voltage | 350mV | |
| Series | BP1 | |
| Polarity | Forward | |
| Short Circuit Current | 38μA | |
| Typical Rise Time | 100ns | |
| Alles selecteren | ||
|---|---|---|
Merk Vishay | ||
Product Type Photodiode | ||
Spectrums Detected Infrared | ||
Wavelength of Peak Sensitivity 950nm | ||
Package Type Top View | ||
Mount Type Through Hole | ||
Number of Pins 2 | ||
Minimum Wavelength Detected 870nm | ||
Maximum Wavelength Detected 1050nm | ||
Typical Fall Time 100ns | ||
Amplified No | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 100°C | ||
Width 4.3mm | ||
Standards/Approvals RoHS 2002/95/EC, WEEE 2002/96/EC | ||
Height 3.2mm | ||
Length 5.4mm | ||
Diameter 5mm | ||
Angle of Half Sensitivity ± 65 ° | ||
Breakdown Voltage 60V | ||
Automotive Standard No | ||
Open Circuit Voltage 350mV | ||
Series BP1 | ||
Polarity Forward | ||
Short Circuit Current 38μA | ||
Typical Rise Time 100ns | ||
BP104 Series PIN Photodiodes
The BP104 series, from Vishay Semiconductor, are a group of PIN photodiodes. They are in a miniature package with a flat TOP plastic package with daylight filter. Suitable applications for the BP104 series include; high speed IR detector, IR remote control and Air data transmission systems. The BP104 can be used in combination with TSAL series IR emitters.
Features of the BP104 PIN photodiodes:
Top view package
Dimensions: 5.4 x 4.3 x 3.2 mm
Radiant sensitive area: 7.5 mm²
Fast response times
