SKF GE 20 C 20 mm Bore Spherical Bearing, 78 kN, 35 mm OD
- RS-stocknr.:
- 217-6699
- Fabrikantnummer:
- GE 20 C
- Fabrikant:
- SKF
Subtotaal (1 eenheid)*
€ 29,13
(excl. BTW)
€ 35,25
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Op voorraad
- 51 stuk(s) klaar voor verzending vanaf een andere locatie
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 29,13 |
*prijsindicatie
- RS-stocknr.:
- 217-6699
- Fabrikantnummer:
- GE 20 C
- Fabrikant:
- SKF
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | SKF | |
| Product Type | Spherical Bearing | |
| Bore Size | 20mm | |
| Outside Diameter | 35mm | |
| Static Load Rating - Axial | 78kN | |
| Material | Steel | |
| Series | GE | |
| Width | 16mm | |
| Standards/Approvals | No | |
| Alles selecteren | ||
|---|---|---|
Merk SKF | ||
Product Type Spherical Bearing | ||
Bore Size 20mm | ||
Outside Diameter 35mm | ||
Static Load Rating - Axial 78kN | ||
Material Steel | ||
Series GE | ||
Width 16mm | ||
Standards/Approvals No | ||
- Land van herkomst:
- DE

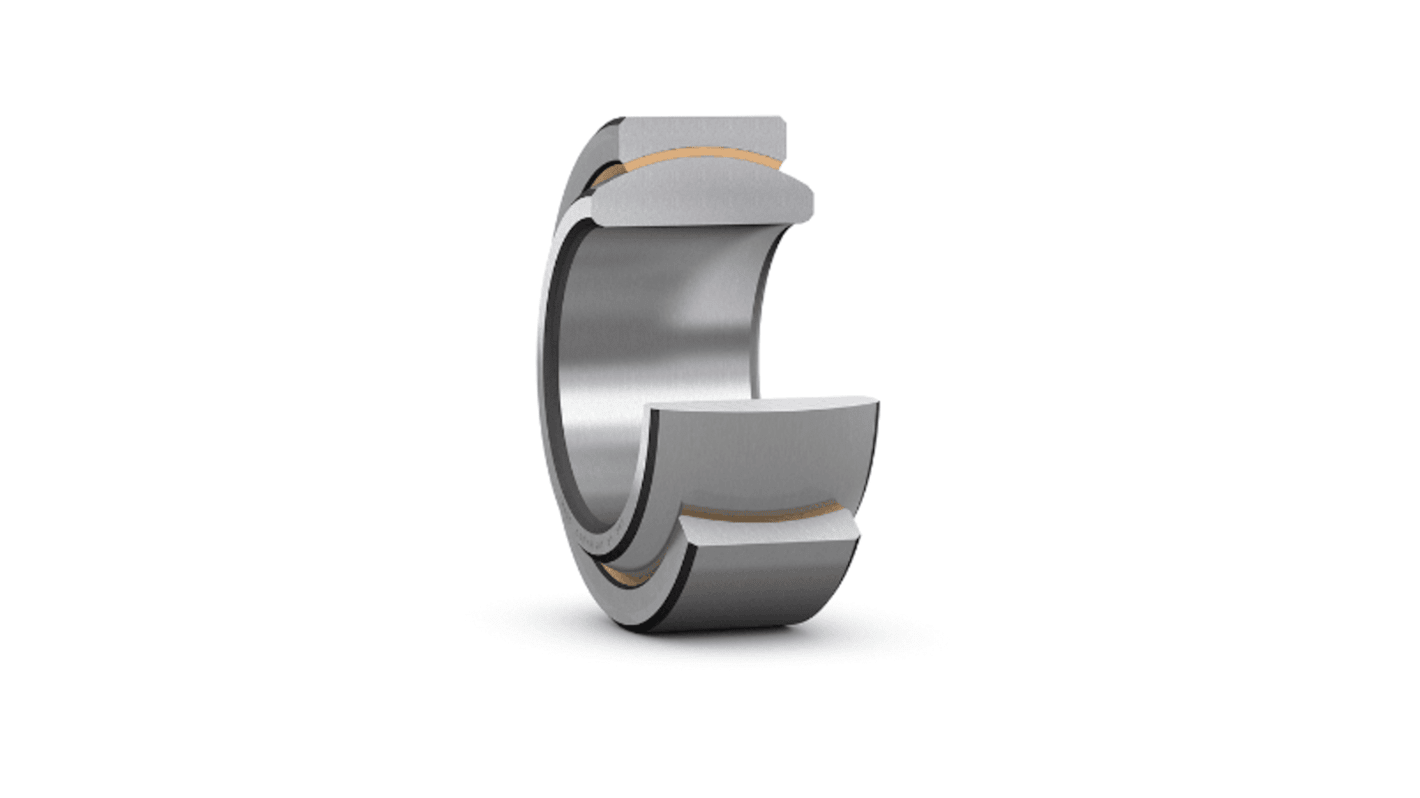

SKF Steel-Covered Spherical Bearing, 20mm Bore, 35mm OD - GE 20 C
Conveniently manage shaft misalignment in your mechanical installations with this SKF spherical ball bearing. The smooth sliding of its 20mm inner ring allows for a wide range of angular movements. The combination of steel and PTFE (polytetrafluoroethylene)sintered bronze as sliding contact materials guarantees even movement for full rotational efficiency. You can install this bearing in large industrial machinery thanks to its 35mm outside diameter.
• Constantly lubricated for maintenance-free use
• 31.5kN dynamic load rating facilitates balanced bearing in moving installations
• Smooth contact surface ensures quiet operation even at high speeds
• Angled design to accommodate tilting movements
Applications
• Automotive industry
• Manufacturing installations
• Robotics
• Mining industry
• Aerospace equipment
How is this spherical bearing different from a regular rolling ball bearing?
Unlike typical ball bearings that feature a series of balls along a race, this spherical bearing has no such rolling element. Instead, the inner ring is installed in an angled position for comprehensive rotation inside the housing. It can accommodate large shaft misalignment while regular bearings are only capable of allowing minute misalignments or overturns.
