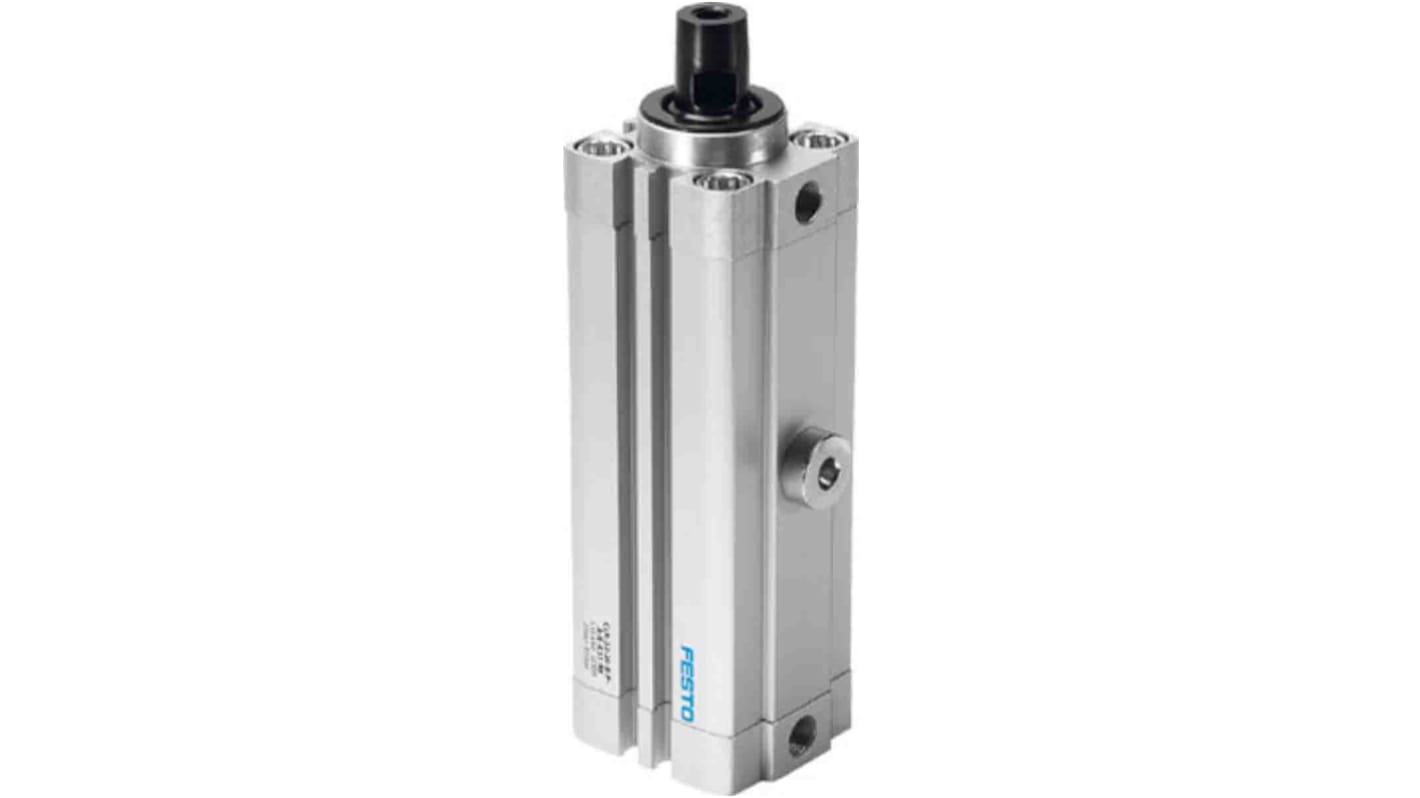

Festo Pneumatic Cylinder CLR-50-20-L-P-A-K11-R8 CLR-50-20-L-P-A-K11-R8 10 bar
- RS-stocknr.:
- 202-9452
- Fabrikantnummer:
- CLR-50-20-L-P-A-K11-R8
- Fabrikant:
- Festo
Subtotaal (1 eenheid)*
€ 555,84
(excl. BTW)
€ 672,57
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Voorradig bij de fabrikant
- Klaar voor verzending vanaf 14 september 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 555,84 |
*prijsindicatie
- RS-stocknr.:
- 202-9452
- Fabrikantnummer:
- CLR-50-20-L-P-A-K11-R8
- Fabrikant:
- Festo
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Festo | |
| Product Type | Pneumatic Cylinder | |
| Bore Diameter | 50mm | |
| Stroke Length | 20mm | |
| Maximum Operating Pressure | 10 bar | |
| Series | CLR-50-20-L-P-A-K11-R8 | |
| Rod Diameter | 50mm | |
| Mount Type | Female Thread, Through Hole | |
| Cushioning Type | Flexible Cushioning Rings/Plates at Both Ends | |
| Body Material | Anodised Wrought Aluminium Alloy | |
| Piston Rod Thread Size | M10 | |
| Minimum Operating Temperature | -10°C | |
| Action Type | Double Acting | |
| Clamping Force at 6 bar | 716N | |
| Maximum Operating Temperature | 80°C | |
| Weight | 1.69kg | |
| Standards/Approvals | ISO 21287, ISO8573-1:2010 (7:4:4) | |
| Model Number | 535500 | |
| Alles selecteren | ||
|---|---|---|
Merk Festo | ||
Product Type Pneumatic Cylinder | ||
Bore Diameter 50mm | ||
Stroke Length 20mm | ||
Maximum Operating Pressure 10 bar | ||
Series CLR-50-20-L-P-A-K11-R8 | ||
Rod Diameter 50mm | ||
Mount Type Female Thread, Through Hole | ||
Cushioning Type Flexible Cushioning Rings/Plates at Both Ends | ||
Body Material Anodised Wrought Aluminium Alloy | ||
Piston Rod Thread Size M10 | ||
Minimum Operating Temperature -10°C | ||
Action Type Double Acting | ||
Clamping Force at 6 bar 716N | ||
Maximum Operating Temperature 80°C | ||
Weight 1.69kg | ||
Standards/Approvals ISO 21287, ISO8573-1:2010 (7:4:4) | ||
Model Number 535500 | ||
- Land van herkomst:
- CN
The Festo linear/swivel clamp CLR-50-20-L-P-A-K11-R8 clamping system with linear and swivel motion 90 degrees to the left. It has standard hole pattern according to ISO 21287 with dust and weld spatter protection.
Total stroke 41 mm
Piston diameter 50 mm
Piston rod thread M10
Swivel angle 90 deg +/- 2 deg
Clamping stroke 20 mm
