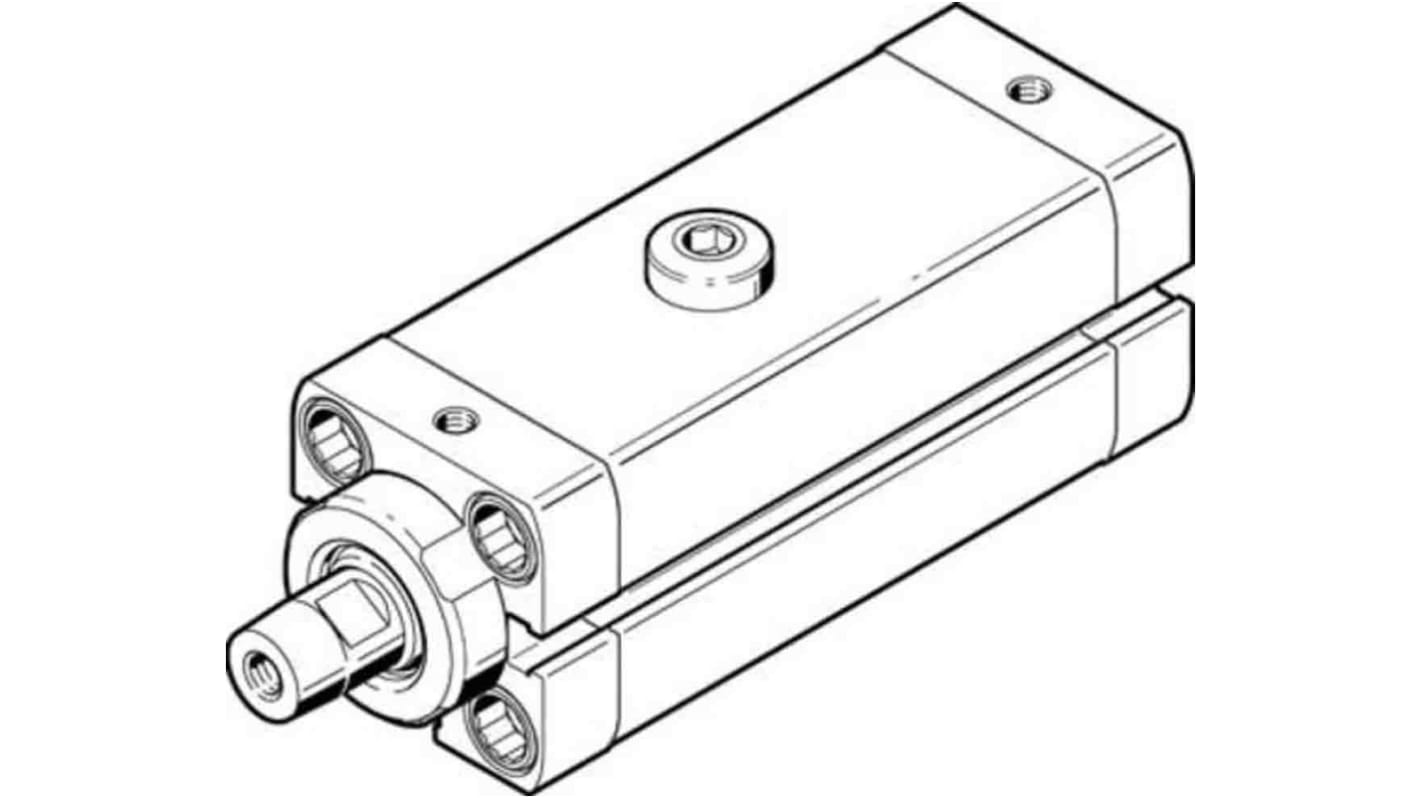

Festo Pneumatic Cylinder CLR-25-10-R-P-A-K11-R8 CLR 10 bar
- RS-stocknr.:
- 202-9456
- Fabrikantnummer:
- CLR-25-10-R-P-A-K11-R8
- Fabrikant:
- Festo
Subtotaal (1 eenheid)*
€ 391,80
(excl. BTW)
€ 474,08
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Voorradig bij de fabrikant
- Klaar voor verzending vanaf 08 september 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 391,80 |
*prijsindicatie
- RS-stocknr.:
- 202-9456
- Fabrikantnummer:
- CLR-25-10-R-P-A-K11-R8
- Fabrikant:
- Festo
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Festo | |
| Product Type | Pneumatic Cylinder | |
| Bore Diameter | 25mm | |
| Stroke Length | 10mm | |
| Maximum Operating Pressure | 10 bar | |
| Series | CLR | |
| Mount Type | Through Hole | |
| Rod Diameter | 25mm | |
| Cushioning Type | Flexible Cushioning Rings/Plates at Both Ends | |
| Body Material | Aluminium Alloy, Wrought Alloy | |
| Piston Rod Thread Size | M6 | |
| Minimum Operating Temperature | -10°C | |
| Clamping Force at 6 bar | 188N | |
| Action Type | Double Acting | |
| Maximum Operating Temperature | 80°C | |
| Weight | 410g | |
| Standards/Approvals | ISO 21287, ISO8573-1:2010 (7:4:4) | |
| Alles selecteren | ||
|---|---|---|
Merk Festo | ||
Product Type Pneumatic Cylinder | ||
Bore Diameter 25mm | ||
Stroke Length 10mm | ||
Maximum Operating Pressure 10 bar | ||
Series CLR | ||
Mount Type Through Hole | ||
Rod Diameter 25mm | ||
Cushioning Type Flexible Cushioning Rings/Plates at Both Ends | ||
Body Material Aluminium Alloy, Wrought Alloy | ||
Piston Rod Thread Size M6 | ||
Minimum Operating Temperature -10°C | ||
Clamping Force at 6 bar 188N | ||
Action Type Double Acting | ||
Maximum Operating Temperature 80°C | ||
Weight 410g | ||
Standards/Approvals ISO 21287, ISO8573-1:2010 (7:4:4) | ||
- Land van herkomst:
- CN
The Festo linear/swivel clamp CLR-25-10-R-P-A-K11-R8 clamping system with linear and swivel motion 90 degrees to the right. It has standard hole pattern according to ISO 21287 With dust and weld spatter protection.
Total stroke 23 mm
Piston diameter 25 mm
Piston rod thread M6
Swivel angle 90 deg +/- 3 deg
Clamping stroke 10 mm
