Festo GRLA Series Flow Controller Exhaust Valve, 193137 ISO 1179-1 and ISO 228-1 ISO 1179-1 and ISO 228-1

Bekijk deze categorie
Bulkkorting beschikbaar

Subtotaal (1 eenheid)*

€ 16,34

(excl. BTW)

€ 19,77

(incl. BTW)

Add to Basket
selecteer of typ hoeveelheid
Op voorraad
  • 8 stuk(s) klaar voor verzending
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.

Aantal stuks
Per stuk
1 - 4€ 16,34
5 - 9€ 15,70
10 +€ 15,05

*prijsindicatie

RS-stocknr.:
121-4353
Artikelnummer Distrelec:
301-68-781
Fabrikantnummer:
GRLA-M5-QS-3-D
Fabrikant:
Festo
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren

Merk

Festo

Product Type

Exhaust Valve

Sub Type

Flow Controller

Series

GRLA

Inlet Thread Standard

ISO 1179-1 and ISO 228-1

Maximum Operating Pressure

1 bar

Outlet Thread Standard

ISO 1179-1 and ISO 228-1

Material

High Alloy Stainless Steel, Anodised wrought Aluminium Alloy, Brass, Die Cast Zinc, Nickel Plated Brass, Nitrile Rubber (NBR), Polyamide, POM

Minimum Operating Temperature

-10°C

Maximum Operating Temperature

150°C

Standards/Approvals

RoHS, ISO 8573-1:2010 (7:4:4), ISO 228-1, ISO 1179-1, Germanischer Lloyd

Minimum Operating Pressure

0.2bar

Hazardous Area Certification

NO

Model Number

193137

Land van herkomst:
DE

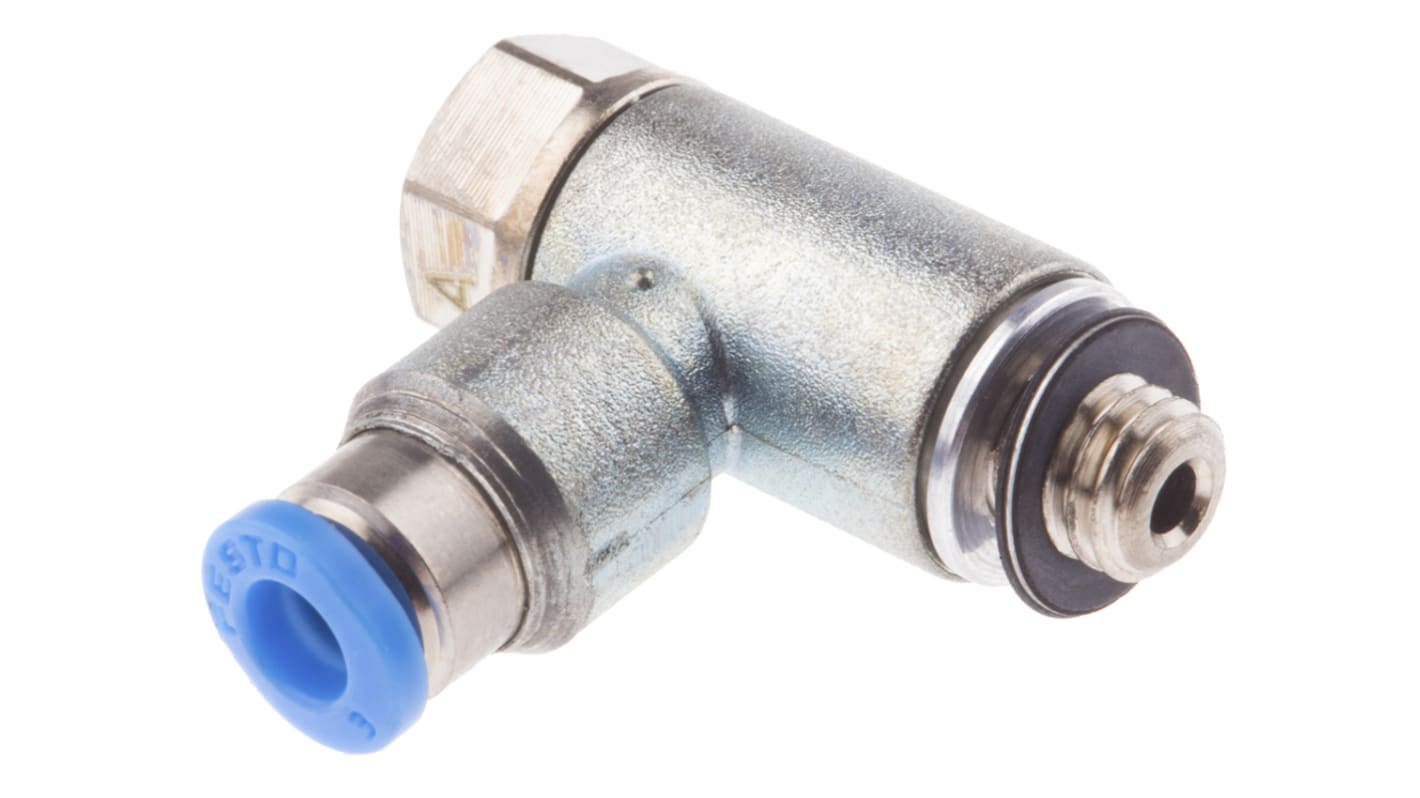

One-way flow control valve - GRLA-M5-QS-3-D


  • Slotted head screw adjusting element

  • The control valve has a threaded mounting type and can be assembled in any position

  • The threaded plug and adjusting screw are brass material

  • The product is lightweight at 13g

  • Nominal tightening torque of 0.8 Nm

    • FESTO Pneumatic Exhaust Flow Regulators - GRLA Series


    Introducing the GRLA series from FESTO. This range of pneumatic fittings feature exhaust flow regulators, each with an integrated QS push-in fitting. The series includes valves with one-way flow control function for exhaust air.

    Features and Benefits


  • This range by FESTO includes valves with one-way flow control function for exhaust air. The one-way flow control valve regulates the piston speed of pneumatic drivers during advance and return strokes

  • The QS push-in fittings and captive seals paired with the robust, metal design enables a reliable and efficient installation that can be rotated or swivelled through a 360° axis

  • Simple and fast mounting with QS fittings

  • The valves are operated with a screwdriver (slot)

  • Wide operating temperatures

  • Threaded and tube connection type options can be found within the GRLA series

  • Depending on the choice of valve from the series a precise setting can be obtained, which range from slow, medium or fast piston movements

  • Manual actuation type

    • How do flow control valves work?


    Flow control valves automatically adjust to variations in pressure and temperature in order to regulate speed, which is done through restrictions on the flow rate of compressed air. With a one-way flow control valve, the flow control function only works in one direction.

    Flow Regulators & Restrictors - Festo
