Festo GRLA Series Flow Controller Exhaust Valve, 193139, Inlet Male
- RS-stocknr.:
- 121-4357
- Artikelnummer Distrelec:
- 301-68-785
- Fabrikantnummer:
- GRLA-M5-QS-6-D
- Fabrikant:
- Festo
Bulkkorting beschikbaar
Subtotaal (1 eenheid)*
€ 16,34
(excl. BTW)
€ 19,77
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Op voorraad
- 306 stuk(s) klaar voor verzending
- 82 stuk(s) klaar voor verzending vanaf een andere locatie
- 76 stuk(s) klaar voor verzending vanaf een andere locatie
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 - 4 | € 16,34 |
| 5 - 9 | € 15,70 |
| 10 + | € 15,05 |
*prijsindicatie
- RS-stocknr.:
- 121-4357
- Artikelnummer Distrelec:
- 301-68-785
- Fabrikantnummer:
- GRLA-M5-QS-6-D
- Fabrikant:
- Festo
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | Festo | |
| Product Type | Exhaust Valve | |
| Sub Type | Flow Controller | |
| Series | GRLA | |
| Inlet Port Gender | Male | |
| Maximum Operating Pressure | 1 bar | |
| Minimum Operating Temperature | -10°C | |
| Material | Polyamide, High Alloy Stainless Steel, Fluorelastomer (FPM), POM, Brass, Nitrile Rubber (NBR), Reinforced, Die Cast Zinc, Nickel Plated Brass, Anodised wrought Aluminium Alloy, Wrought Aluminium Alloy | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | Germanischer Lloyd, RoHS | |
| Minimum Operating Pressure | 0.2bar | |
| Hazardous Area Certification | NO | |
| Model Number | 193139 | |
| Alles selecteren | ||
|---|---|---|
Merk Festo | ||
Product Type Exhaust Valve | ||
Sub Type Flow Controller | ||
Series GRLA | ||
Inlet Port Gender Male | ||
Maximum Operating Pressure 1 bar | ||
Minimum Operating Temperature -10°C | ||
Material Polyamide, High Alloy Stainless Steel, Fluorelastomer (FPM), POM, Brass, Nitrile Rubber (NBR), Reinforced, Die Cast Zinc, Nickel Plated Brass, Anodised wrought Aluminium Alloy, Wrought Aluminium Alloy | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals Germanischer Lloyd, RoHS | ||
Minimum Operating Pressure 0.2bar | ||
Hazardous Area Certification NO | ||
Model Number 193139 | ||

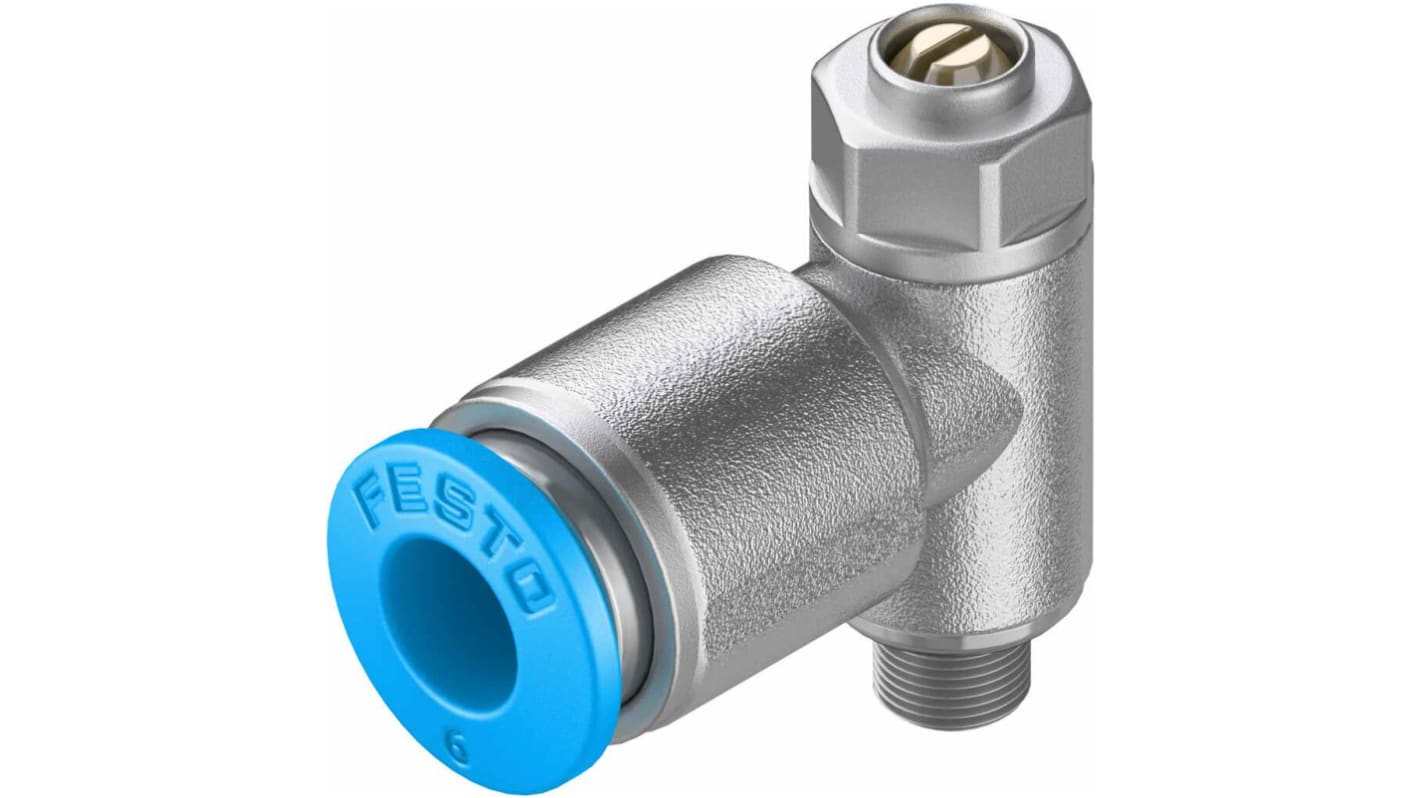

Festo Exhaust Valve, 6mm Tube Inlet Port, 5mm Outlet Thread - GRLA Series - GRLA-M5-QS-6-D
Ensure your pneumatic system functions efficiently with this Festo exhaust valve. It's an effective way to regulate the flow of gases and liquids. To establish and maintain the one-way movement of exhaust gases, the valve automatically adjusts when temperatures or pressures change. This prevents gas from entering the rest of your system. You can use the valve to establish airtight connections in your closed compressed air or liquid applications. This exhaust flow regulator controls flow rates and speeds in actuators to increase overall performance and safety.
• Brass body makes the fitting robust and resistant to corrosion, for use in humid environments
• 360° swivelling functionality allows for installation in any position
• Captive, NBR (nitrile rubber) seals ensure airtight connections to maintain the integrity of closed systems
Application Information
• Automotive engineering
• Gas pumps
• Automated production equipment
• Agricultural equipment
What's the difference between a flow regulator and a pressure regulator?
Flow regulators, like this Festo exhaust valve, control and regulate gas or liquid flow through pressurised systems. Pressure control valves regulate the pressure at which gases or liquids pass through tubes or hoses.
