Festo HE Series Check Valve Pneumatic Manual Control Valve, 153469, Inlet Male/Female, Outlet Male/Female

Bekijk deze categorie

Subtotaal (1 eenheid)*

€ 20,80

(excl. BTW)

€ 25,17

(incl. BTW)

Add to Basket
selecteer of typ hoeveelheid
Op voorraad
  • 213 stuk(s) klaar voor verzending
  • 101 stuk(s) klaar voor verzending vanaf een andere locatie
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks
Per stuk
1 +€ 20,80

*prijsindicatie

RS-stocknr.:
175-4537
Artikelnummer Distrelec:
301-68-800
Fabrikantnummer:
HE-2-QS-10
Fabrikant:
Festo
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren

Merk

Festo

Product Type

Pneumatic Manual Control Valve

Sub Type

Check Valve

Series

HE

Maximum Operating Pressure

1 bar

Inlet Port Gender

Male/Female

Material

Polybutylene Terephthalate, Brass, Aluminium, Reinforced

Outlet Port Gender

Male/Female

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

60°C

Standards/Approvals

ISO 8573-1:2010, ISO 1179-1, RoHS, ISO 228-1

Hazardous Area Certification

No

Minimum Operating Pressure

-0.95bar

Model Number

153469

Vrijgesteld

Land van herkomst:
JP

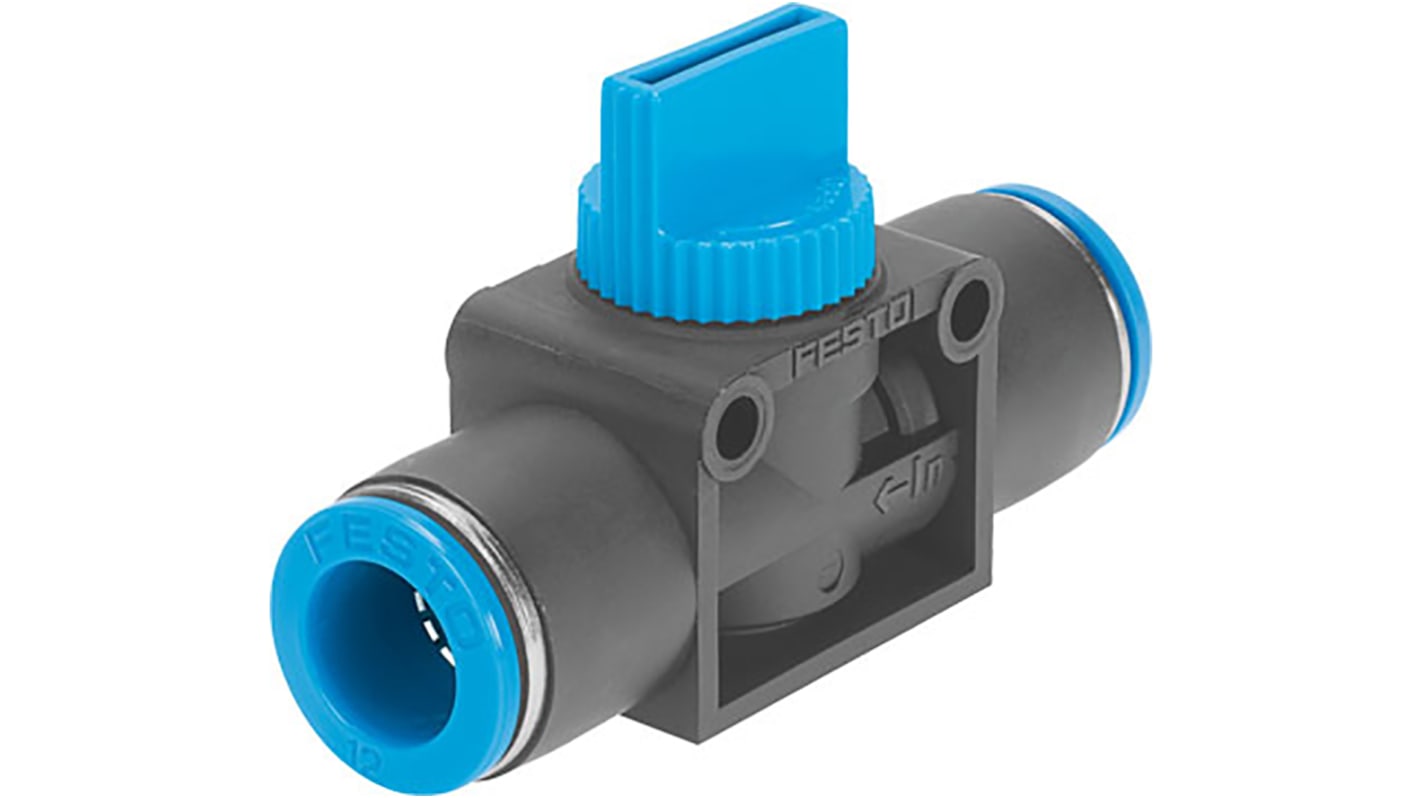

Festo Series HE Pneumatic Manual Control Valve, 10 Bar Maximum Operating Pressure, 60°C Maximum Operating Temperature - HE-2-QS-10, Numeric Part Number: 153469


This pneumatic manual control valve provides manual regulation of compressed Air in industrial installations. It is designed for direct human operation to start, stop or modulate Airflow within automation and mechanical systems, and is suitable for typical workshop and factory environments where a compact, hand-operated valve is required.

Features & Benefits


• Maximum operating pressure 10 bar enables robust system control
• Operable down to -0.95 bar for vacuum-capable applications
• Rated for use up to 60°C for warm process environments
• Constructed from brass, aluminium and reinforced PBT for material resilience
• Compatible with male and female inlet and outlet ports for flexible connections

Applications


• Suitable for control of compressed Air actuators in automation lines
• Ideal for manual intervention on pneumatic test rigs and benches
• Used with machine tools requiring hand-operated Air isolation
• Can be used for maintenance operations in electrical and mechanical workshops
• Suitable for integration into compressed Air distribution panels

What materials compose the body and how do they affect durability?


The valve uses brass and aluminium alongside reinforced polybutylene terephthalate which provides a balance of metal strength and lightweight polymer resistance to mechanical wear.

How does the valve perform in low-pressure or vacuum conditions?


It is specified to operate down to -0.95 bar, allowing it to function in applications that require slight vacuum or sub-atmospheric control.

Which environmental temperatures can the valve tolerate during regular operation?


The component is rated for continuous operation at temperatures up to 60°C and as low as -20°C for cold environments.
