Subtotaal (1 verpakking van 10 eenheden)*
€ 190,88
(excl. BTW)
€ 230,96
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 75,00
Op voorraad
- Plus verzending 60 stuk(s) vanaf 23 maart 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk | Per verpakking* |
|---|---|---|
| 10 + | € 19,088 | € 190,88 |
*prijsindicatie
- RS-stocknr.:
- 176-1892
- Fabrikant:
- RS PRO
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | RS PRO | |
| Product Type | Flow Regulator | |
| Sub Type | Flow Controller | |
| Maximum Operating Pressure | 1 bar | |
| Minimum Operating Temperature | -20°C | |
| Material | Acetalic Resin, Nickel Plated Brass, 304 Stainless Steel, Anodised Aluminium, Technopolymer, Nitrile Rubber (NBR), Polyamide 66 | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | 2014/68/UE, PED, CE | |
| Minimum Operating Pressure | 0.1bar | |
| Hazardous Area Certification | No | |
| Alles selecteren | ||
|---|---|---|
Merk RS PRO | ||
Product Type Flow Regulator | ||
Sub Type Flow Controller | ||
Maximum Operating Pressure 1 bar | ||
Minimum Operating Temperature -20°C | ||
Material Acetalic Resin, Nickel Plated Brass, 304 Stainless Steel, Anodised Aluminium, Technopolymer, Nitrile Rubber (NBR), Polyamide 66 | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals 2014/68/UE, PED, CE | ||
Minimum Operating Pressure 0.1bar | ||
Hazardous Area Certification No | ||
- Land van herkomst:
- IT

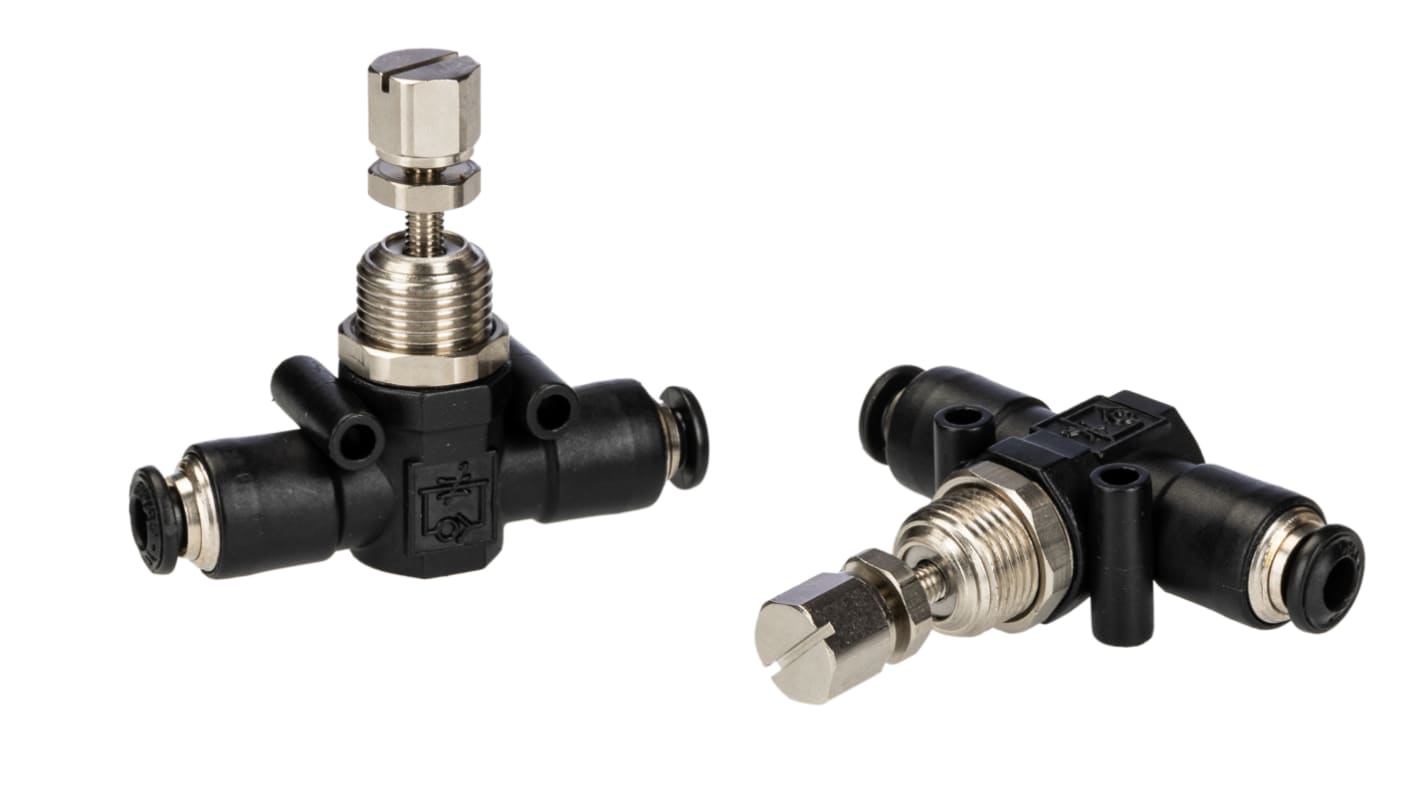

RS PRO Flow Regulator, Push-in 4 mm Tube Inlet Port x Push-in 4 mm Tube Outlet Port
Need to control air or liquid in your automated pneumatic systems? You can adjust the pressure or flow with these RS PRO regulators. Simply turn the knob to open up or close the valves. These components are easy to install as they have tool-free push-in fittings to connect to pipes or hoses.
These flow regulators have a nickel-plated brass and technopolymer body for strength and nitrile butadiene rubber (NBR) seals for durability. Their silicone-free construction reduces the risk of contamination, making them suitable for use with fluids like paints and inks.
Flow regulators are useful in food and drink processing, water treatment plants and automotive manufacturing. You'll find them in pneumatic tools and equipment such as robotic arms on production lines.
Features and Benefits
• Maximum outlet pressure of 10 bar
• Minimum outlet pressure of 1 bar
• Push-in 4 mm tube inlet port
• Push-in 4 mm tube outlet port
• Flow controller type
