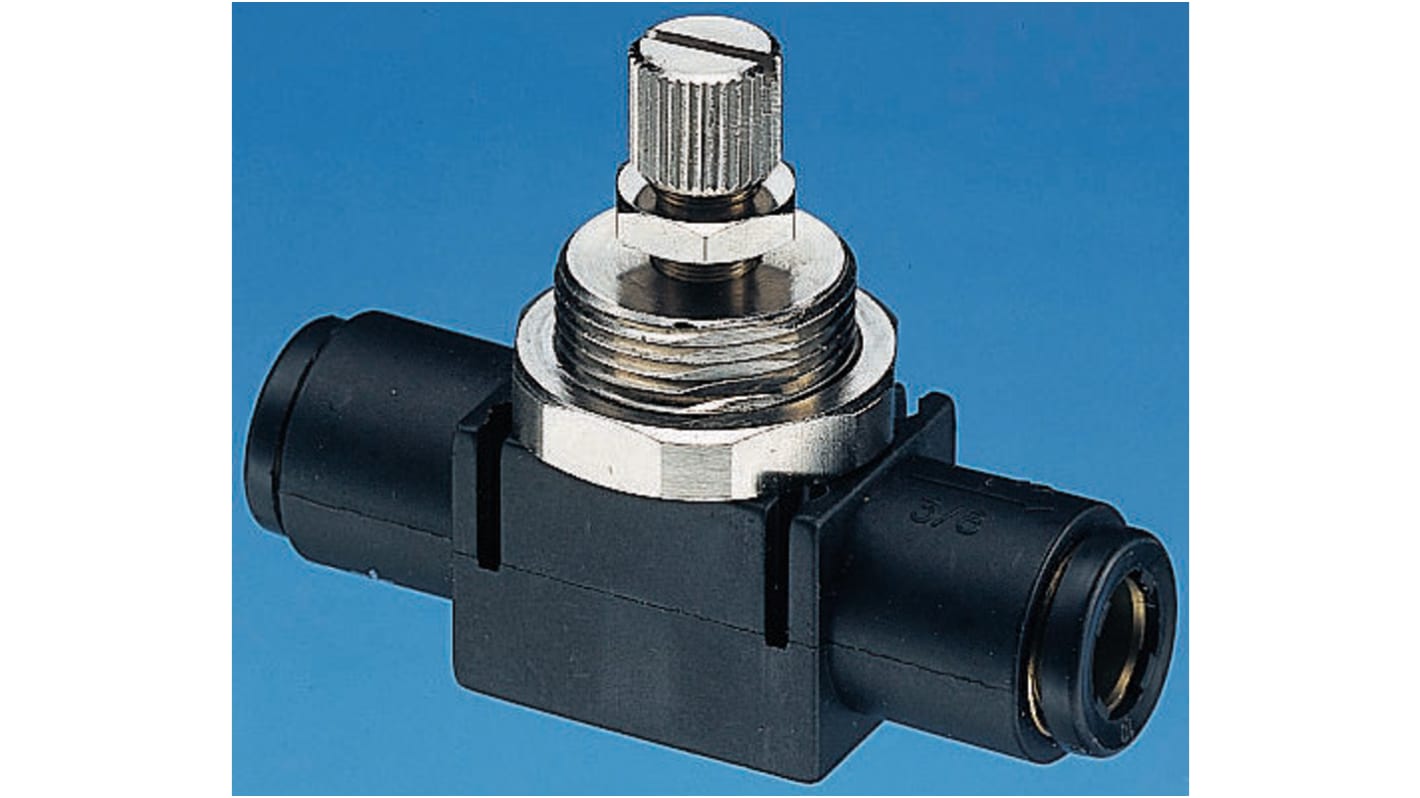

Legris 7776 Series Flow Controller Flow Regulator, Tube 10 Tube 10 mm

Afbeelding representeert productcategorie

Bekijk deze categorie
Bulkkorting beschikbaar

Subtotaal (1 eenheid)*

€ 47,04

(excl. BTW)

€ 56,92

(incl. BTW)

Add to Basket
selecteer of typ hoeveelheid
Informatie over voorraden is momenteel niet toegankelijk - Controleer het later nog eens opnieuw

Aantal stuks
Per stuk
1 - 4€ 47,04
5 - 9€ 45,60
10 +€ 44,09

*prijsindicatie

RS-stocknr.:
227-5177
Fabrikantnummer:
7776 10 00
Fabrikant:
Legris
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren

Merk

Legris

Inlet Connection Type

Tube

Product Type

Flow Regulator

Outlet Connection Type

Tube

Sub Type

Flow Controller

Inlet Connection Size

10

Outlet Connection Size

10 mm

Series

7776

Maximum Operating Pressure

10 bar

Minimum Operating Temperature

0°C

Material

Polymer

Maximum Operating Temperature

70°C

Standards/Approvals

No

Minimum Operating Pressure

1bar

Hazardous Area Certification

NO

Land van herkomst:
FR

Panel Mount Regulator


Suitable for use where direct mounting to cylinder is not possible due to space or function restrictions.

Uni-directional flow regulation

Push-in fittings for both in and out connections

Panel or bulkhead mountable

Flow Regulators & Restrictors - Legris LF3000


Compressed air flow regulators with engineering grade polymer bodies and either threaded, push-in or stub connections. Threads are nickel plated brass. Operating temperature range 0 to +70°C
