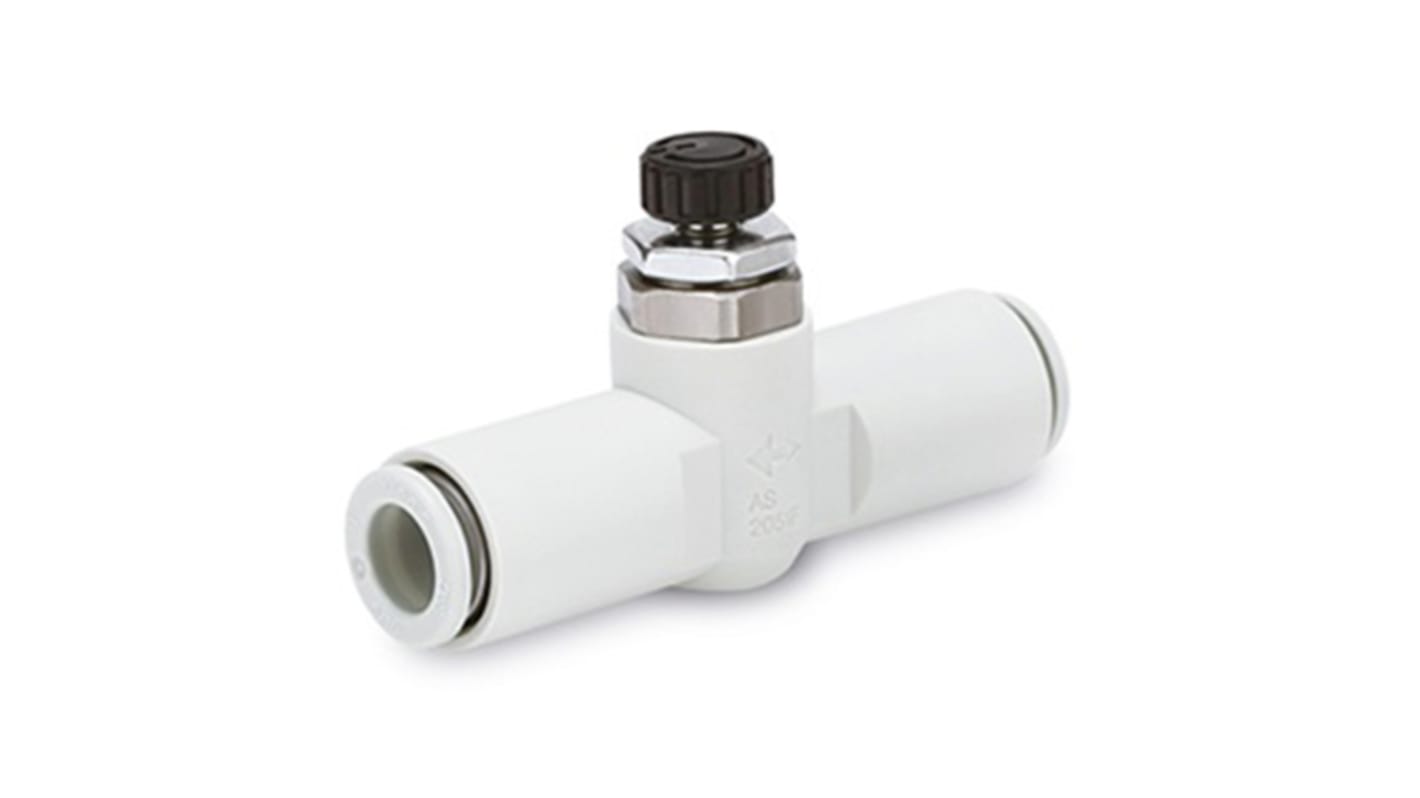

SMC AS100 Series Speed Controller Speed Controller, Inlet Female, Outlet Female
- RS-stocknr.:
- 234-4229
- Fabrikantnummer:
- AS1001FM-06
- Fabrikant:
- SMC
Subtotaal (1 eenheid)*
€ 12,59
(excl. BTW)
€ 15,23
(incl. BTW)
GRATIS bezorging voor bestellingen van meer dan € 90,00
Tijdelijk niet op voorraad
- Verzending 4 stuk(s) vanaf 12 juni 2026
Heeft u meer nodig? Klik op 'Controleer leverdata' voor extra voorraad en levertijden.
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 12,59 |
*prijsindicatie
- RS-stocknr.:
- 234-4229
- Fabrikantnummer:
- AS1001FM-06
- Fabrikant:
- SMC
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | SMC | |
| Product Type | Speed Controller | |
| Sub Type | Speed Controller | |
| Series | AS100 | |
| Inlet Port Gender | Female | |
| Maximum Operating Pressure | 1 Mpa | |
| Material | Steel | |
| Minimum Operating Temperature | -5°C | |
| Outlet Port Gender | Female | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | No | |
| Hazardous Area Certification | No | |
| Minimum Operating Pressure | 0.1MPa | |
| Proof Pressure | 1.5MPa | |
| Alles selecteren | ||
|---|---|---|
Merk SMC | ||
Product Type Speed Controller | ||
Sub Type Speed Controller | ||
Series AS100 | ||
Inlet Port Gender Female | ||
Maximum Operating Pressure 1 Mpa | ||
Material Steel | ||
Minimum Operating Temperature -5°C | ||
Outlet Port Gender Female | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals No | ||
Hazardous Area Certification No | ||
Minimum Operating Pressure 0.1MPa | ||
Proof Pressure 1.5MPa | ||
- Land van herkomst:
- JP
The SMC series AS speed controllers allow the body to be rotated to facilitate simple installation. Available in thread sizes from M3 to 1/2 in both inch (NPT) and metric R(PT) and with tube sizes from 3.2mm to 12mm OD (metric) and 1/8 to 1/2 OD (inch).
Available with PT or NPT ports
One-touch fittings
Meter-in and meter-out types easily determined by the flow
