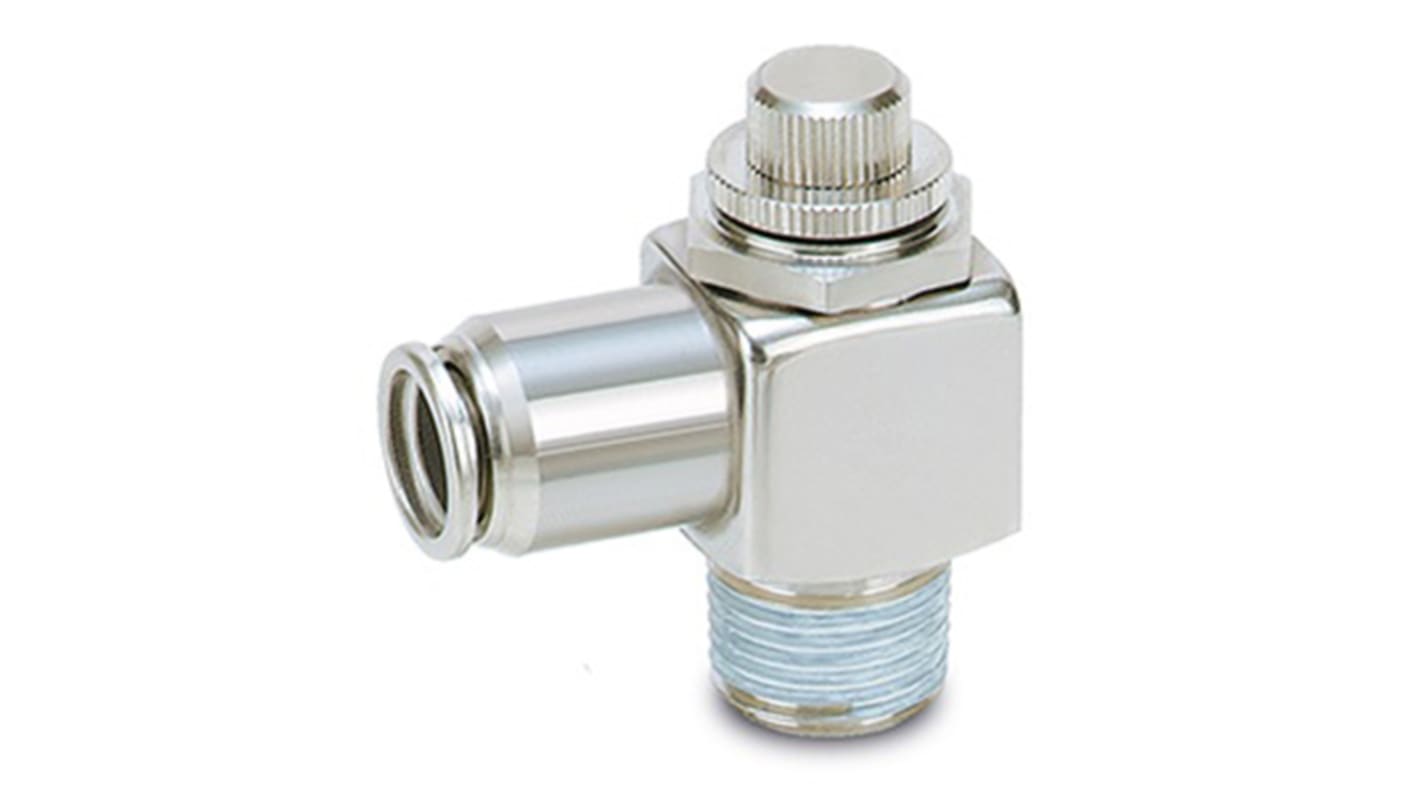

SMC AS220 Series Speed Controller Speed Controller, Inlet Male, Threaded M5, Outlet Female Push-in R 6 mm
- RS-stocknr.:
- 234-4247
- Fabrikantnummer:
- ASG220F-M5-06
- Fabrikant:
- SMC
Subtotaal (1 eenheid)*
€ 51,00
(excl. BTW)
€ 61,71
(incl. BTW)
Informatie over voorraden is momenteel niet toegankelijk - Controleer het later nog eens opnieuw
Aantal stuks | Per stuk |
|---|---|
| 1 + | € 51,00 |
*prijsindicatie
- RS-stocknr.:
- 234-4247
- Fabrikantnummer:
- ASG220F-M5-06
- Fabrikant:
- SMC
Specificaties
Datasheets
Wetgeving en compliance
Productomschrijving
Zoek vergelijkbare producten door een of meer kenmerken te selecteren.
Alles selecteren | Attribuut | Waarde |
|---|---|---|
| Merk | SMC | |
| Inlet Connection Type | Threaded | |
| Product Type | Speed Controller | |
| Outlet Connection Type | Push-in | |
| Sub Type | Speed Controller | |
| Inlet Connection Size | M5 | |
| Outlet Connection Size | 6 mm | |
| Series | AS220 | |
| Inlet Port Gender | Male | |
| Maximum Operating Pressure | 1 Mpa | |
| Outlet Port Gender | Female | |
| Material | POM, Nitrile Rubber (NBR), 303 Stainless Steel, Polybutylene Terephthalate | |
| Outlet Thread Standard | R | |
| Minimum Operating Temperature | -5°C | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | RoHS | |
| Hazardous Area Certification | No | |
| Minimum Operating Pressure | 0.1MPa | |
| Proof Pressure | 1.5MPa | |
| Alles selecteren | ||
|---|---|---|
Merk SMC | ||
Inlet Connection Type Threaded | ||
Product Type Speed Controller | ||
Outlet Connection Type Push-in | ||
Sub Type Speed Controller | ||
Inlet Connection Size M5 | ||
Outlet Connection Size 6 mm | ||
Series AS220 | ||
Inlet Port Gender Male | ||
Maximum Operating Pressure 1 Mpa | ||
Outlet Port Gender Female | ||
Material POM, Nitrile Rubber (NBR), 303 Stainless Steel, Polybutylene Terephthalate | ||
Outlet Thread Standard R | ||
Minimum Operating Temperature -5°C | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals RoHS | ||
Hazardous Area Certification No | ||
Minimum Operating Pressure 0.1MPa | ||
Proof Pressure 1.5MPa | ||
- Land van herkomst:
- JP
The SMC series stainless steel speed controller, elbow design which allows the rotation of the tube connection port to suit installation to air cylinders. Five body sizes to suit cylinder bore diameters from Ø6 mm up to Ø100 mm.
All SUS construction.
Seal material Special FKM for external seals.
Option for meter-out or meter-in type control.
One-touch fitting based upon the successful KQG design.
